ATEN PG series PG6308A
MSRP$716.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

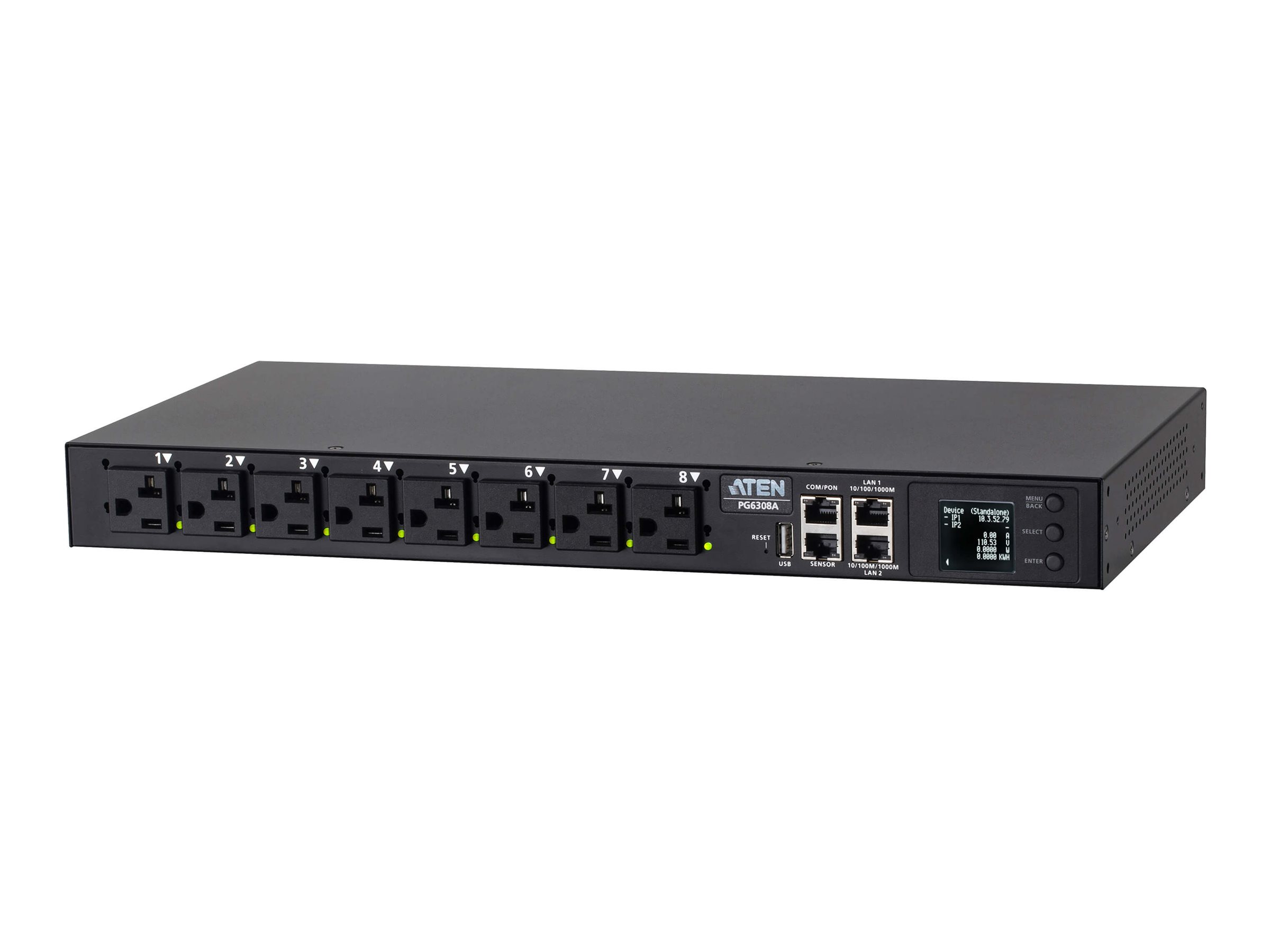

ATEN PG series PG6308A
- Power distribution unit (rack-mountable)
- 30A/32A, switched, eco
- AC 100-120 V
- 3600 VA
- Ethernet 10/100/1000
- input: NEMA L5-30P
- output connectors: 8 (NEMA 5-20R)
- 1U
- 3 m cord
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $716.00 |
| Mfr Part #: | PG6308A |
| SHI Part #: | 50548105 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | ATEN PG series PG6308A - Power distribution unit (rack-mountable) - 30A/32A, switched, eco - AC 100-120 V - 3600 VA - Ethernet 10/100/1000 - input: NEMA L5-30P - output connectors: 8 (NEMA 5-20R) - 1U - 3 m cord |
| Manufacturer | ATEN |
| MSRP | $716.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.24 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.37 kg |
| Dimensions & Weight / Width | 21 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 3600 VA |
| Power Device / Voltage Required | AC 100-120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 43.24 cm |
| Height | 4.4 cm |
| Weight | 4.37 kg |
| Width | 21 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC, UL, PSE Mark |
| Features | Wake on LAN, cascadable, daisy chain functionality, ARM Cortex A8 CPU, 1% metering accuracy, 2 x UL489 breakers, bank level current monitoring, voltage monitoring, PF monitoring, KWh monitoring, outlet bank switching, environment sensor ports, firmware upgradable, LED indicators, locking outlets, temperature monitoring, humidity monitoring, current monitoring, Proactive Overload Protection (POP), schedule, LCD display, color-coded labels |
| Included Accessories | Footpad set, full-panel colored sticker |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, SMTP, NTP, DNS, SNMP 1, SNMP 2, SNMP 3, Telnet, Modbus, IPv6, JSON-RPC, RADIUS, LDAP, TACACS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 100-120 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 100-120 V |
| Power Capacity | 3600 VA |
| Power Output Connectors Details | 8 x power NEMA 5-20R 20 A |
