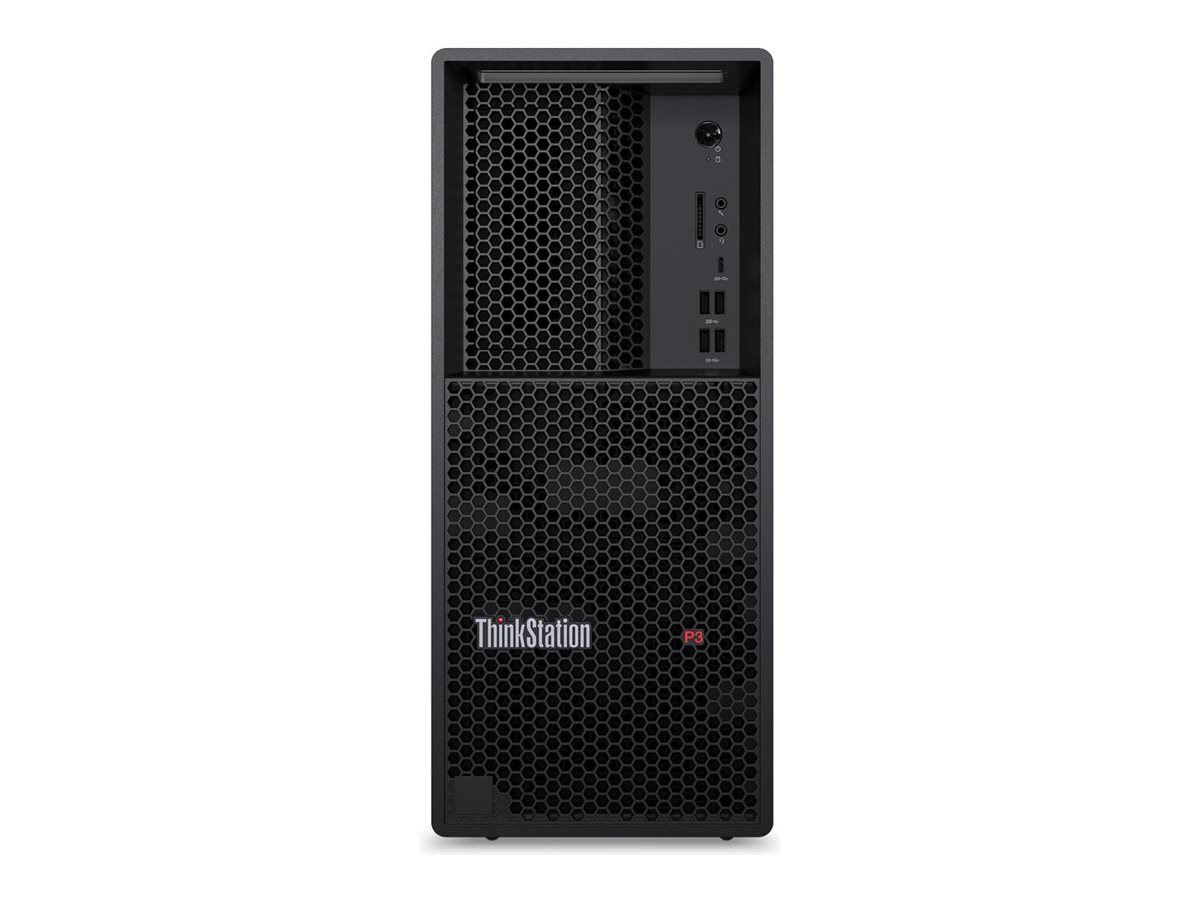

Lenovo ThinkStation P3 Gen 2 30J0

$4,849.00
Lenovo ThinkStation P3 Gen 2 30J0
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Tower 1 x Core Ultra 5 225 / up to 4.9 GHz
  • RAM 16 GB
  • SSD 512 GB
  • TCG Opal Encryption, Performance
  • Intel Graphics
Lenovo ThinkStation P3 Gen 2 30J0
  • Tower 1 x Core Ultra 5 225 / up to 4.9 GHz
  • RAM 16 GB
  • SSD 512 GB
  • TCG Opal Encryption, Performance
  • Intel Graphics
  • Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
  • Win 11 IoT Enterprise LTSC
  • monitor: none
  Additional Details
Price: $4,849.00
Mfr Part #: 30J0S03C00
SHI Part #: 50540189
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: Lenovo
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionLenovo ThinkStation P3 Gen 2 30J0 - Tower 1 x Core Ultra 5 225 / up to 4.9 GHz - RAM 16 GB - SSD 512 GB - TCG Opal Encryption, Performance - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 IoT Enterprise LTSC - monitor: none
ManufacturerLenovo
UNSPSC43211507
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth37 cm
Dimensions & Weight / Height41.5 cm
Dimensions & Weight / Weight14.38 kg
Dimensions & Weight / Width18 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandLenovo
Mainboard / Chipset Type
  • Intel Q870
  • Intel W880
Mainboard / Processor SocketFCLGA1851 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax/be
  • Bluetooth 5.4
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 IoT Enterprise LTSC
Packaged Quantity1
Processor / Clock Speed3.3 GHz
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores10-core
Processor / Processor Number225
Processor / TypeCore Ultra 5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity512 GB
System / TypeWorkstation
Video Output / Graphics ProcessorIntel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor20 MB
Installed SizeL3 cache - 20 MB
Dimensions & Weight
Depth37 cm
Height41.5 cm
Weight14.38 kg
Width18 cm
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Bays1 (total) / 1 (free) x 2.5" / 3.5" shared
Interfaces
  • 1 x USB-C 3.2 Gen 2x2 (1 in front) (data only)
  • 4 x USB 3.2 Gen 1 (2 front, 2 rear) (one of them supports SmartPower On)
  • 2 x USB 3.2 Gen 2 (2 in front)
  • 1 x headphones/microphone (1 in front)
  • 1 x microphone (1 in front)
  • 1 x HDMI (1 rear)
  • 2 x DisplayPort 1.4 (2 rear)
  • 5 x LAN (Gigabit Ethernet) (5 rear)
  • 1 x audio line-out (1 rear)
  • 2 x USB 2.0 (2 rear)
Slots
  • 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height, double-width (75W max power)
  • 2 (total) / 2 (free) x PCIe 3.0 x1 - half-length, full-height (open ended, 25W max power)
  • 1 (total) / 0 (free) x PCIe 4.0 x16 - half-length, full-height (x4 mode, 25W max power)
  • 3 (total) / 2 (free) x M.2 Card (for SSD)
  • 1 (total) / 0 (free) x M.2 Card (for WLAN)
General
Built-in DevicesSpeaker
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
Product Form FactorTower
TypeWorkstation
Graphics Controller
Graphics ProcessorIntel Graphics shared video memory (UMA) - up to 4 TOPS
Video InterfacesHDMI, DisplayPort
Hard Drive
Capacity1 x 512 GB
FeaturesTCG Opal Encryption, Performance
Interface TypePCI Express 4.0 x4
ManufacturerWestern Digital
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo AI Keyboard
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, FSC, Energy-Related Products (ErP) Lot 3, TCG Certified
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop, tool-less chassis access
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet ControllerIntel I219-LM, I350-T4
Ethernet Ports5 x Gigabit Ethernet
FeaturesWake on LAN (WoL), dual stream (2x2)
Interface (Bus) TypeM.2 Card
Wireless LAN SupportedYes
Wireless NICIntel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)23 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 IoT Enterprise LTSC
Optical Storage
TypeNo optical drive
Power
80 PLUS Certification80 PLUS Platinum
Device TypePower supply
Efficiency92%
Power Provided500 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W880
Clock Speed3.3 GHz (P-core) / 2.7 GHz (E-core)
CPUIntel Core Ultra 5 (Series 2) 225
CPU Qty1
CPU SocketFCLGA1851 Socket
L2 cache22 MB
Max CPU Qty1
Max Turbo Speed4.9 GHz (P-core) / 4.4 GHz (E-core)
Number of Cores10-core
Processor Main FeaturesIntel Smart Cache
RAM
Configuration Features1 x 16 GB
Effective Memory Speed5600 MT/s
FeaturesUnbuffered, dual channel memory architecture
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 256 GB (max)
Rated Memory Speed5600 MT/s
Slots4 (total) / 3 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
Controller Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Type1 x SATA
Storage Controller (2nd)
Controller Interface TypePCI Express (NVMe)
RAID LevelRAID 0, RAID 1, RAID 5
Type1 x NVMe
Sustainability Information
Carbon Footprint957 kg carbon emissions (EU)
PAIA Version1.4.7
TCO CertifiedTCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)317
