Hardware Computer Components Control/Interface Boards

Control/Interface Boards

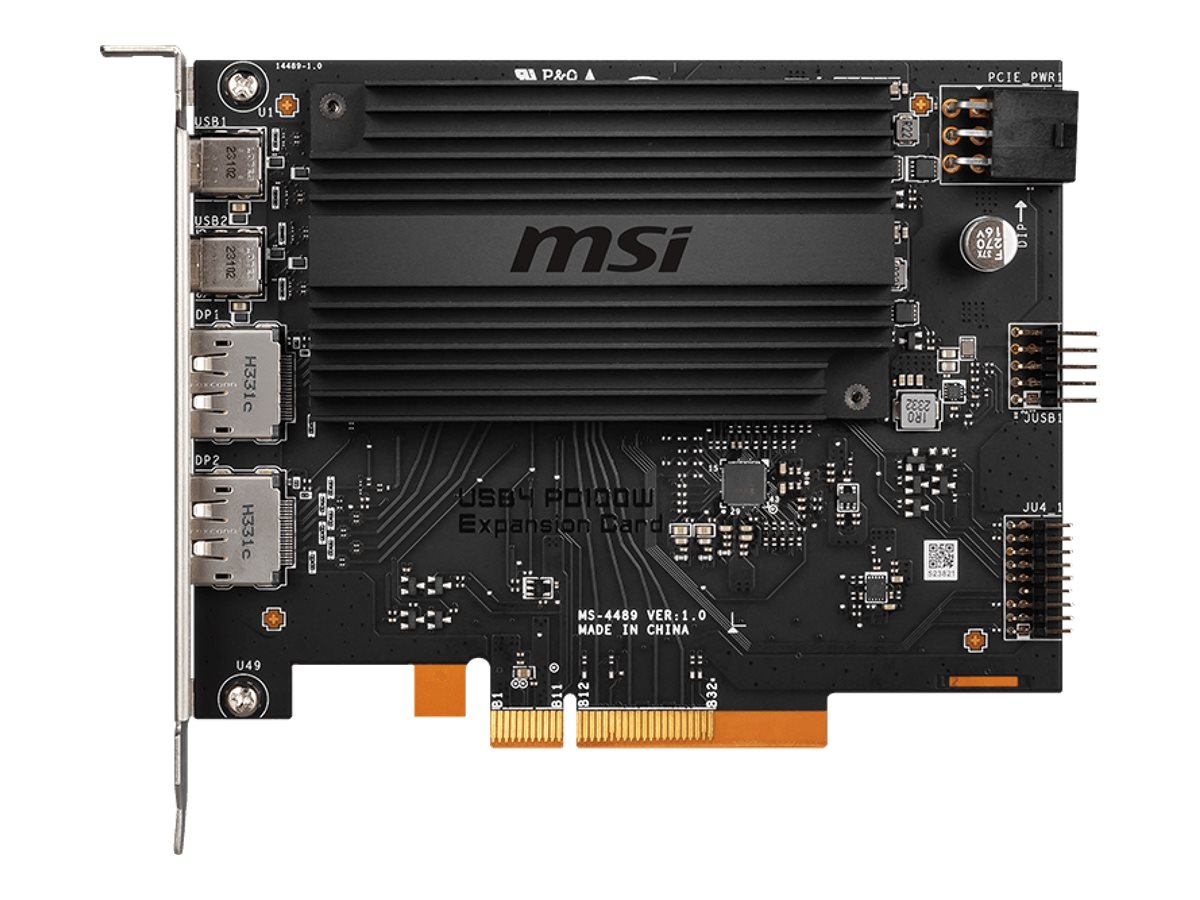

MSI - USB adapter - PCIe 4.0 x4

$109.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
USB4 x 2 + DisplayPort x 2

MSI - USB adapter - PCIe 4.0 x4

General Information
Category	Serial port cards
Description	MSI - USB adapter - PCIe 4.0 x4 - USB4 x 2 + DisplayPort x 2
Manufacturer	MSI
MSRP	$89.99
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	10.4 cm
Dimensions & Weight / Width	13.2 cm
Header / Brand	MSI
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	DisplayPort USB4
Networking / Data Transfer Rate	40 Gbps
Networking / Type	USB adapter
Packaged Quantity	1
System Requirements / OS Required	Windows 11 (version 22H2) or later
Dimensions & Weight
Depth	10.4 cm
Width	13.2 cm
Expansion / Connectivity
Interfaces	2 x USB4 - 24 pin USB-C 2 x DisplayPort input
General
Device Type	USB adapter
Form Factor	Plug-in card
Interface (Bus) Type	PCI Express 4.0 x4
PCI Specification Revision	PCIe 4.0
Miscellaneous
Cables Included	1 x USB cable 1 x U4 header cable
Compliant Standards	DisplayPort 1.4
Networking
Compliant Standards	USB4
Connectivity Technology	Wired
Data Link Protocol	USB4, DisplayPort
Data Transfer Rate	40 Gbps
Features	USB Power Delivery (up to 100 watt)
Ports	USB4 x 2 + DisplayPort x 2
Processor / Memory
Processor	ASMedia ASM4242
Software / System Requirements
OS Required	Windows 11 (version 22H2) or later
