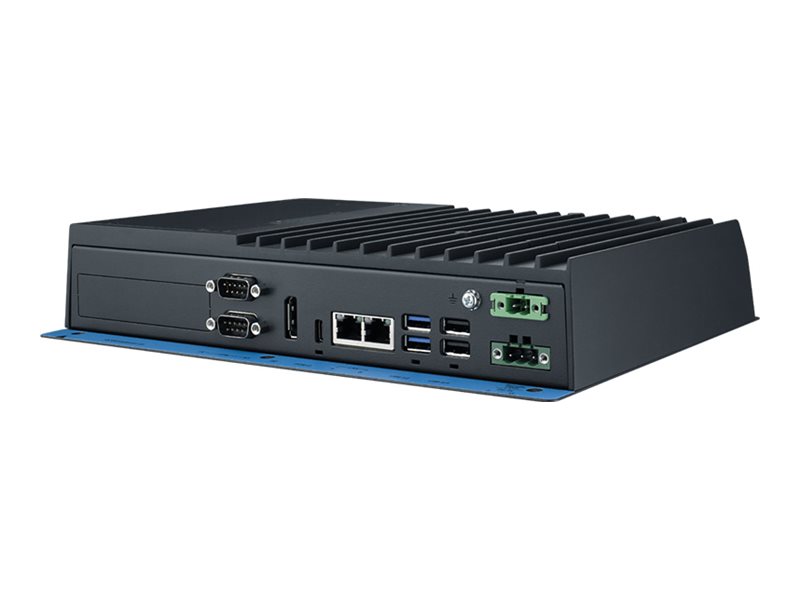

Advantech TPC-B520 - Computing box Core i5 i5-1335UE / up to 4.5 GHz
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech TPC-B520 - Computing box Core i5 i5-1335UE / up to 4.5 GHz
- RAM 0 GB
- no HDD
- Intel Iris Xe Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TPC-B520-D50A |
| SHI Part #: | 50526505 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Advantech TPC-B520 - Computing box Core i5 i5-1335UE / up to 4.5 GHz - RAM 0 GB - no HDD - Intel Iris Xe Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - monitor: none |
| Manufacturer | Advantech |
| MSRP | $1,320.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 20.3 cm |
| Dimensions & Weight / Height | 5 cm |
| Dimensions & Weight / Weight | 2.8 kg |
| Dimensions & Weight / Width | 26.9 cm |
| Display / Type | None. |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.3 GHz |
| Processor / Generation | 13 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 10-core |
| Processor / Processor Number | I5-1335UE |
| Processor / Type | Core i5 |
| RAM / Form Factor | SO-DIMM 288-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Iris Xe Graphics |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Card Reader | |
| Supported Flash Memory Cards | Nano SIM Card |
| Dimensions & Weight | |
| Depth | 20.3 cm |
| Height | 5 cm |
| Weight | 2.8 kg |
| Width | 26.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Bays | 1 internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Computing box |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | BIS, BSMI, CB, CCC, EMI FCC Class A, RoHS, UL, IP66 front |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I226-V |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Power Consumption Operational | 29 watt |
| Voltage Required | 19 - 24 V |
| Processor / Chipset | |
| Clock Speed | 1.3 GHz |
| CPU | Intel Core i5 (13th Gen) i5-1335UE |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 10-core |
| RAM | |
| Effective Memory Speed | 2400 MHz 4800 MT/s |
| Form Factor | SO-DIMM 288-pin |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
