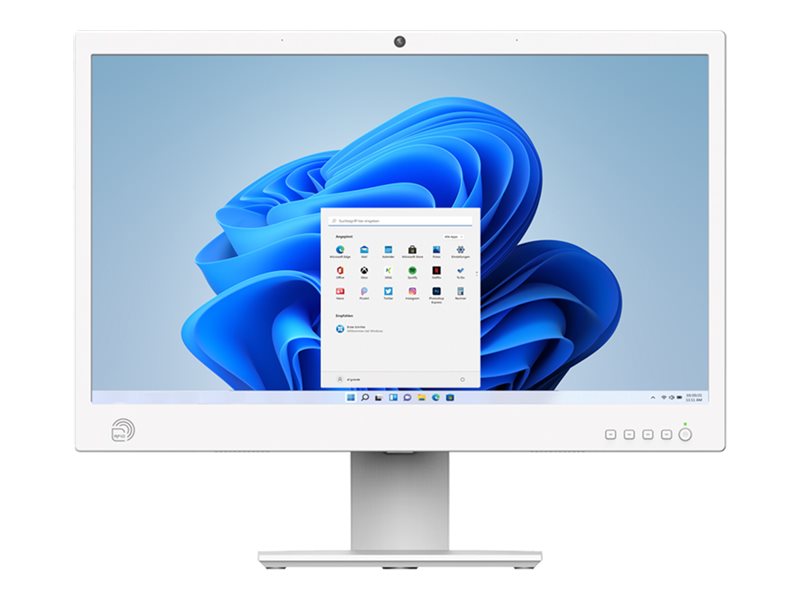

DT Research Medical All-In-One Computer 514LA
MSRP$2,983.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
DT Research Medical All-In-One Computer 514LA
- All-in-one Core Ultra 7 225U / up to 5.2 GHz
- RAM 8 GB
- SSD 512 GB
- Intel Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4
- Win 11
- monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen
- white
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,983.00 |
| Mfr Part #: | 514LA-714A |
| SHI Part #: | 50477136 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | DT Research |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | DT Research Medical All-In-One Computer 514LA - All-in-one Core Ultra 7 225U / up to 5.2 GHz - RAM 8 GB - SSD 512 GB - Intel Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 - Win 11 - monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen - white |
| Manufacturer | DT Research |
| MSRP | $2,983.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 4.25 cm |
| Dimensions & Weight / Height |
|
| Dimensions & Weight / Weight | 6.3 kg |
| Dimensions & Weight / Width | 56.9 cm |
| Display / Diagonal Size | 23.8 in |
| Display / Diagonal Size (metric) | 60.5 cm |
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LCD |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | DT Research |
| Miscellaneous / Product Color | White |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type |
|
| Packaged Quantity | 1 |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | 225U |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Graphics |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 4.25 cm |
| Height | 36.8 cm |
| Weight | 6.3 kg |
| Width | 56.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Capacitive touch screen, microphone array, 5W stereo speakers |
| Color | White |
| Embedded Security | Firmware Trusted Platform Module (fTPM) |
| Product Form Factor | All-in-one |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Graphics |
| Video Interfaces | HDMI |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Type | SSD |
| Input Device | |
| Type | 4 programmable buttons |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | ANSI/AAMI ES60601-1, IP65 front, IP54 rear, IEC 60601-1, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, CE/EMC, RED, cULus |
| Included Accessories | Power cable |
| VESA Mounting Interface | 100 x 100 mm |
| Monitor | |
| Diagonal Size | 23.8" |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Fanless cooling, antimicrobial coating, plastic housing |
| Monitor Type | LCD |
| Native Resolution | 1920 x 1080 (Full HD) |
| Touchscreen | Yes (multi-touch) |
| Widescreen Display | Yes |
| Networking | |
| Compliant Standards | Bluetooth 5.4, IEEE 802.11be |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 2) 225U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | 12-core |
| RAM | |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Slots | 2 (total) |
| Technology | DDR5 SDRAM |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
