Vivotek - Network surveillance camera
MSRP$260.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

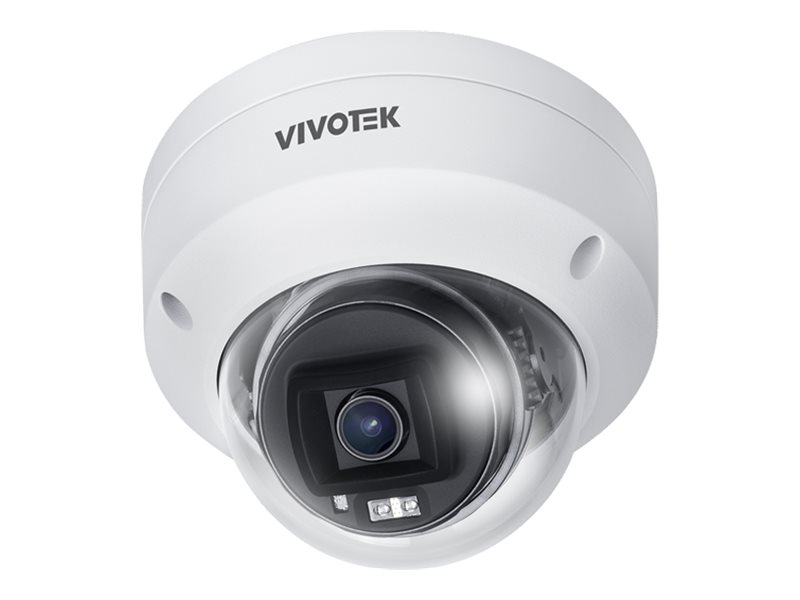

Vivotek - Network surveillance camera
- dome
- vandal-proof
- color (Day&Night)
- 5 MP
- 2880 x 1616
- 1080p, 720p
- fixed iris
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $260.00 |
| Mfr Part #: | FD9380-HV-V2 |
| SHI Part #: | 50463918 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Vivotek - Network surveillance camera - dome - vandal-proof - color (Day&Night) - 5 MP - 2880 x 1616 - 1080p, 720p - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | Vivotek |
| MSRP | $260.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.72 cm |
| Dimensions & Weight / Height | 8.96 cm |
| Dimensions & Weight / Weight | 562 g |
| Dimensions & Weight / Width | 11.72 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type |
|
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 2880 x 1616, 2688 x 1512, 2560 x 1440, 1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360, 480 x 272 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | Wide Dynamic Range (WDR) Pro, IR-cut filter, Pixel Calculator, 120 dB dynamic range, bit rate control, Smart Stream III, white balance, brightness control, contrast control, saturation control, sharpness control, gamma control, Defog, 3D digital noise reduction (DNR), Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, AE speed adjustment, Privacy Mask Function, CSRF protection, digest authentication, HTTPs encryption, password protection, signed firmware, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, human detection, deep learning function, Smart Motion Detection, Smart VCA, intrusion detection, loitering detection, line-crossing detection, periodical trigger, tamper-detection, recording notification |
| Flash Memory | 256 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | 2 |
| Max Digital Video Resolution | 2880 x 1616 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed - vandal-proof |
| Video Modes | 1080p, 720p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 80% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| General | |
| Audio Formats | G.711, G.726, AAC-LC, MPEG 2 Audio |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 11.72 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 8.96 cm |
| Weight | 562 g |
| Width | 11.72 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, NTCIP, PPPoE, QOS, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, CoS |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 133 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 111 |
| Lens Iris | F/1.6 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 59 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EN 55032 Class A, EN 55035 Class A, UKCA, BS EN 55032, BS EN 55035, FCC Part 15 B Class A, RCM, AS/NZS CISPR 32 Class A, ICES-003 issue 7, UL 62368-1, IEC/EN 62368-1, CB, IEC/EN 60950-22, IEC/EN 62471, BS EN IEC 62368-1, IK10, IP66, IP67, CNS 15936, CNS 15598-1 |
| Included Accessories | Alignment sticker, screw pack, cable gland |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 3.6 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Software Included | Trend Micro IoT Security (1 year trial) |
| Tilting | |
| Range (degree) | 75 |
