Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

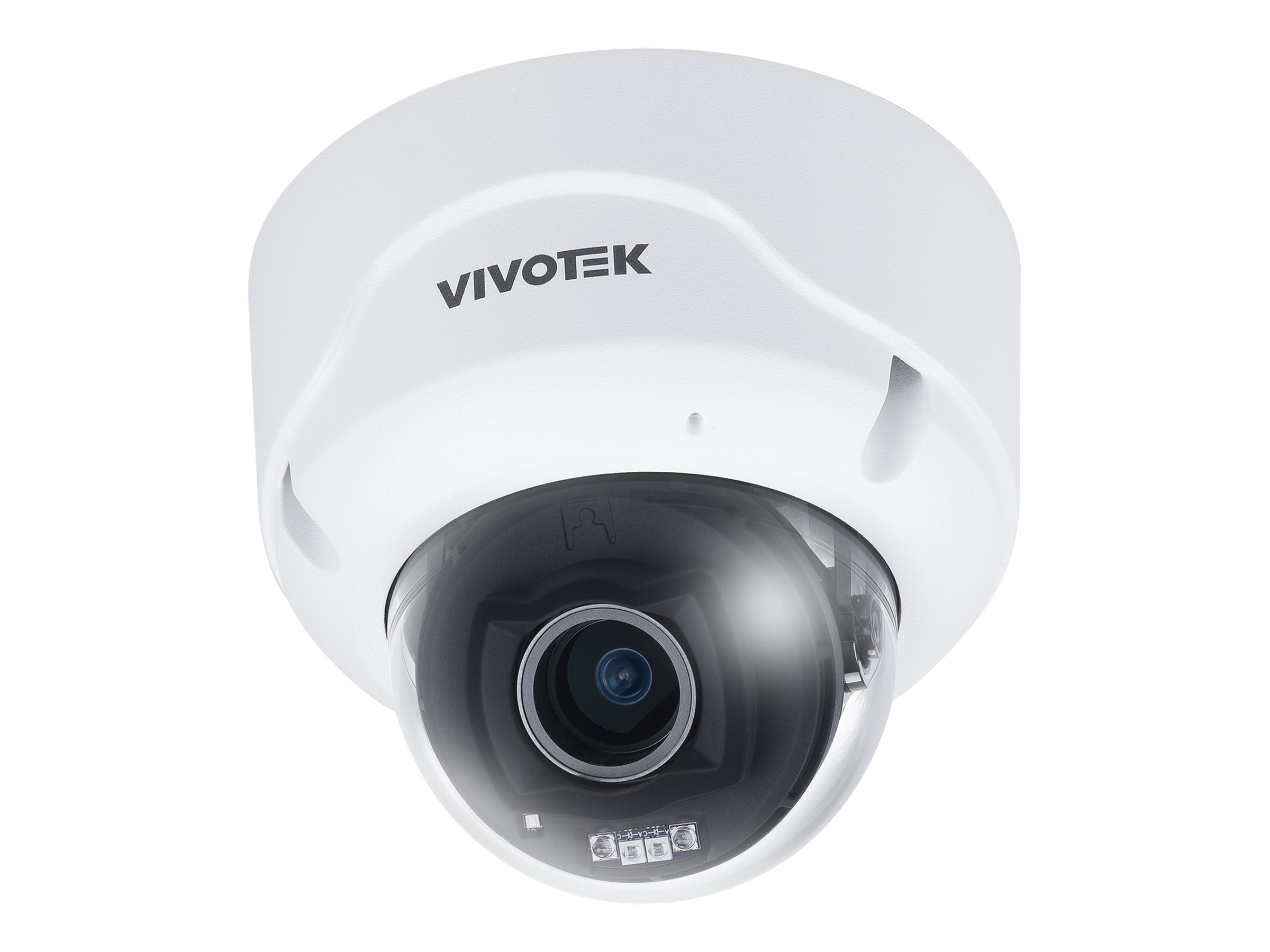

Vivotek VORTEX Premium FD839-EHTV-V2

MSRP$1,117.00
$850.00
Vivotek VORTEX Premium FD839-EHTV-V2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • dome
  • color (Day&Night)
  • 5 MP
  • 2560 x 1920
Vivotek VORTEX Premium FD839-EHTV-V2
  • Network surveillance camera
  • dome
  • color (Day&Night)
  • 5 MP
  • 2560 x 1920
  • vari-focal
  • audio
  • LAN 10/100
  • PoE Class 3
  • TAA Compliant
  Additional Details
Price: $850.00
MSRP: $1,117.00
Mfr Part #: FD839-EHTV-V2-1Y
SHI Part #: 50421410
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Vivotek
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionVivotek VORTEX Premium FD839-EHTV-V2 - Network surveillance camera - dome - color (Day&Night) - 5 MP - 2560 x 1920 - vari-focal - audio - LAN 10/100 - PoE Class 3 - TAA Compliant
ManufacturerVivotek
MSRP$1,117.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth13.4 cm
Dimensions & Weight / Height11.6 cm
Dimensions & Weight / Weight990 g
Dimensions & Weight / Width13.4 cm
Header / BrandVivotek
Miscellaneous / Product Color
  • Black
  • White
Packaged Quantity1
Service & Support / Type10-year warranty
Camera
Digital Video Capture Resolution2560 x 1920, 1280 x 960
Exposure Range1/5 sec - 1/32000 sec
Features350° rotation, IR-cut filter, Smart IR, Wide Dynamic Range (WDR) Pro, WebRTC compatible, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, 6 access users, 5m microphone pickup range, metal housing, Audio Detection, Tampering detection, intrusion detection, Line Crossing Detection, loitering detection, unattended object detection, missing object detection, AI Analytics
Flash Memory256 GB
Frame Rate (max)15 frames per second
Infrared Distance40 m
Infrared LEDs4
Max Digital Video Resolution2560 x 1920
Minimum Illumination
  • 0.04 lux - color - F1.6
  • 0.005 lux - B&W - F1.6
  • 0 lux - IR - infrared LEDs on
TypeColor - Day&Night - fixed
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-35 °C
Relative Humidity (operating)98% RH (non-condensing)
Expansion / Connectivity
Encryption AlgorithmTLS 1.2
Ports
  • LAN/power - RJ-45
  • Audio line in
  • Audio line out
  • Digital input
  • Digital output
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio SupportYes: two-way audio capability, built-in microphone
Connectivity TechnologyWired
Depth13.4 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height11.6 cm
Weight990 g
Width13.4 cm
Image Sensor
Type5 MP Progressive Scan CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP, RTP, RTCP, SSL, TCP/IP, UDP
Lens Construction
Diagonal Field of View (degree)35.9 - 129.6
Focal Length2.8 mm - 12 mm
Focus AdjustmentRemote
Horizontal Field of View (degree)28.7 - 95.4
Lens IrisF/1.6-3.3 (P-Iris)
Optical Zoom4.3 x
TypeVari-focal
Vertical Field of View (degree)21.5 - 68.8
Manufacturer Warranty
Service & SupportLimited warranty - 10 years
Miscellaneous
Compliant StandardsIEEE 802.3af, IP66, IK10, FCC, NDAA, UL
Included AccessoriesAlignment sticker, screw pack, L-shaped wrench
TAA CompliantYes
Panning
Range (degree)350
Power
Power Device12.4 watt
Power RequirementsPoE Class 3
Software / System Requirements
Software IncludedVORTEX VSaaS xPro License (1 year)
Tilting
Range (degree)80
