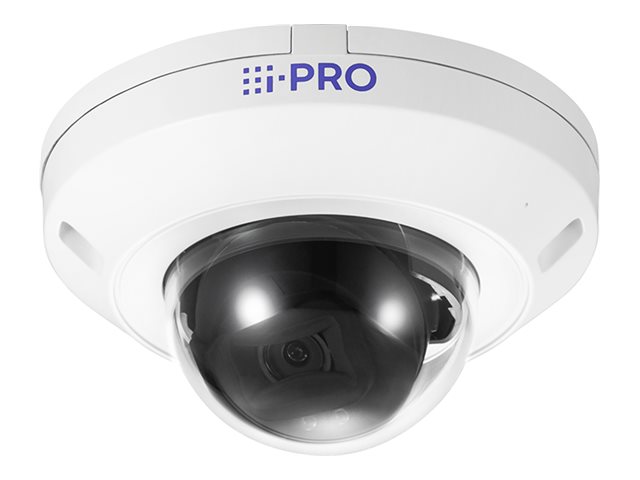

i-PRO U-Series WV-U22550-F3L
MSRP$630.36
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
i-PRO U-Series WV-U22550-F3L
- Network surveillance camera
- dome
- indoor
- vandal-resistant
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed focal
- audio
- LAN 10/100
- DC 48 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $630.36 |
| Mfr Part #: | WV-U22550-F3L |
| SHI Part #: | 50412519 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | i-Pro Americas Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | i-PRO U-Series WV-U22550-F3L - Network surveillance camera - dome - indoor - vandal-resistant - color (Day&Night) - 5 MP - 2592 x 1944 - fixed focal - audio - LAN 10/100 - DC 48 V / PoE |
| Manufacturer | i-Pro Americas Inc. |
| MSRP | $630.36 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.9 cm |
| Dimensions & Weight / Height | 6.2 cm |
| Dimensions & Weight / Weight | 250 g |
| Dimensions & Weight / Width | 10.9 cm |
| Header / Brand | i-Pro |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 7-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 2592 x 1944, 2560 x 1920, 1280 x 960, 640 x 480, 320 x 240, 800 x 600, 400 x 300 |
| Digital Zoom | 4 |
| Exposure Range | 16/25 sec - 1/10000 sec |
| Features | AI Analytics, AI Video Motion Detection (AI-VMD), audio recording, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Super Dynamic technology, 120 dB dynamic range, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, Automatic Gain Control (AGC), auto ICR, digital noise reduction, 4 motion detection zones, Scene Change Detection (SCD), 8 privacy zones, 8 VIQS zones, 90° image rotation, 180° image rotation, 270° image rotation, 16:9 aspect ratio, 4:3 aspect ratio, DORI coverage, Ambarella CV25M CPU, Constant Bitrate (CBR), Variable Bitrate (VBR), 4 video streams, Group of Pictures (GOP), Smart Coding Technology, half duplex audio, full duplex audio, Device Certificate GlobalSign pre-installed, user authentication, digest authentication, host authentication, 802.1x authentication, system log, image transmission log, brute force delay protection, alteration detection, signed firmware, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, die-cast aluminium housing |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 28 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - indoor - vandal-resistant |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 10 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-3 Level 3 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, G.711, AAC-LC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 10.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 6.2 cm |
| Weight | 250 g |
| Width | 10.9 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, FTP, SFTP, LLDP, MQTT, IPv4, RTSP, RTCP, DHCP, DDNS, UPnP, IGMP, SRTP |
| Lens Construction | |
| Focal Length | 3.2 mm |
| Horizontal Field of View (degree) | 96 - 97 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 1 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 52 - 71 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Color | I-PRO White |
| Compliant Standards | IEC/EN 60529 IP42, IEC 62262 IK10, NDAA, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, IEC 62368-1 Third Edition, FCC Part15 Subpart B Class B (U.S.A.), ICES-003 issue 7 Class A, EN 55032 Class A, EN55035, IEEE 802.3af |
| Panning | |
| Range (degree) | -175 to +175 |
| Power | |
| Power Device | 9.6 Watt |
| Power Requirements | DC 48 V / PoE - 200 mA |
| Tilting | |
| Range (degree) | -30 to +80 |
