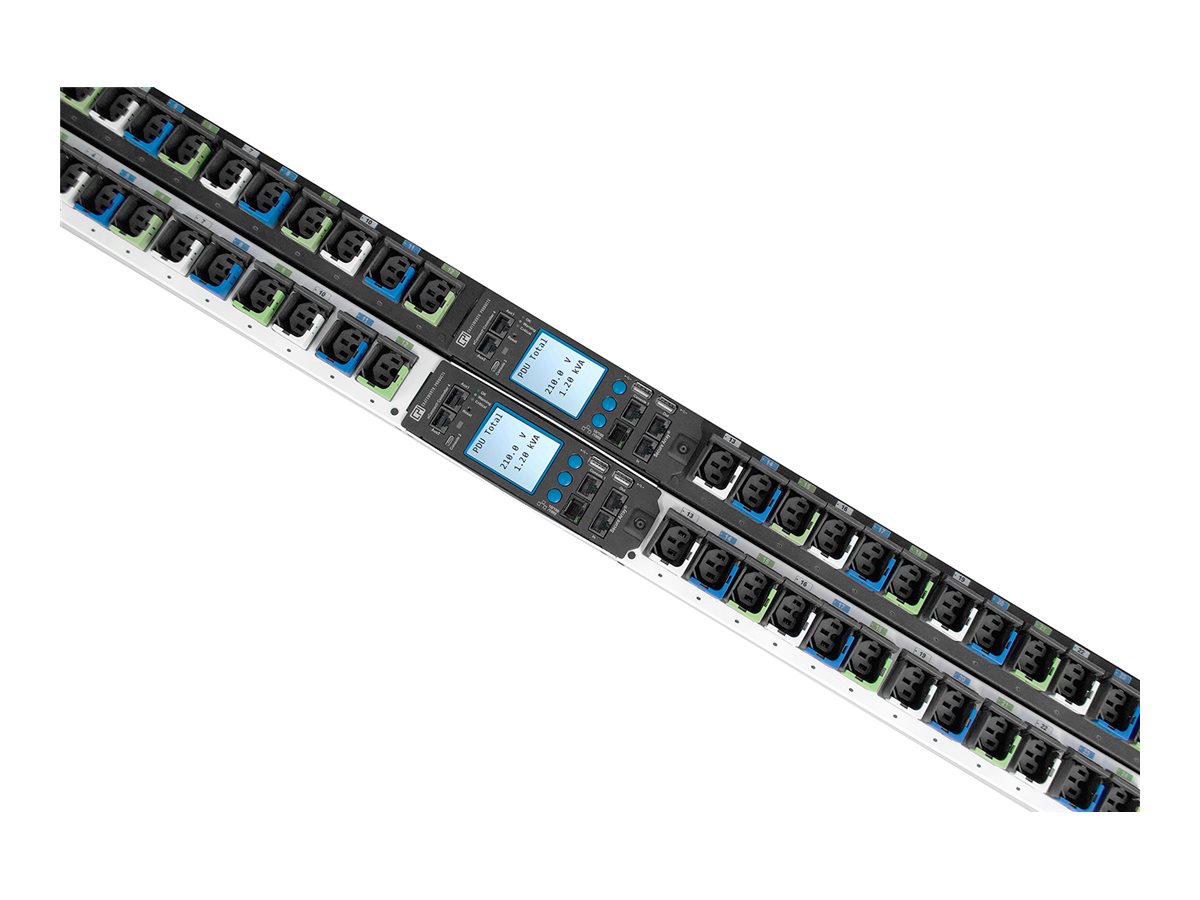

CPI Monitored Pro eConnect
MSRP$7,059.15
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Monitored Pro eConnect
- Redundancy Pack
- power distribution unit (rack-mountable)
- vertical
- AC 208 V
- 14.4 kW
- 3-phase
- serial, Ethernet 10/100/1000, USB
- input: CS8365
- output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19)
- 42U
- 19"
- 3 m cord
- black, glacier white
- TAA Compliant (pack of 2)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,059.15 |
| Mfr Part #: | EA-4016-CE |
| SHI Part #: | 50405015 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Monitored Pro eConnect - Redundancy Pack - power distribution unit (rack-mountable) - vertical - AC 208 V - 14.4 kW - 3-phase - serial, Ethernet 10/100/1000, USB - input: CS8365 - output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 19" - 3 m cord - black, glacier white - TAA Compliant (pack of 2) |
| Manufacturer | Chatsworth |
| MSRP | $7,059.15 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.01 cm |
| Dimensions & Weight / Height | 182.7 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 5.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 2 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.01 cm |
| Height | 182.7 cm |
| Weight | 8.2 kg |
| Width | 5.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black, glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Packaged Quantity | 2 (specifications are for single item) |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 3 years |
| Miscellaneous | |
| Cables Included | AC input cable 3 m |
| Compliant Standards | IEEE 802.1x, EN55022, FCC Part 15 A, RoHS, IEC/UL 62368, NEMKO, UL 489, cULus, WEEE |
| Features | For indoor use, low-profile, tool-less mounting, password security, reset button, LCD display, Zero Touch Provisioning (ZTP), flash upgradeable, locking outlets, environmental sensor ready, replaceable controller, Hydraulic-Magnetic breakers, Secure Array technology, Branch Current Monitoring, PDU Linking, power factor meter, voltage monitoring, LED indicators, vertical orientation, outlet grouping, color-coded labels |
| Included Accessories | Grounding kit cable, 2 x toolless mounting buttons |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Serial, Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, HTTP, HTTPS, CLI, RESTful API, DHCP, LDAP, RADIUS, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365 |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 69.2 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14.4 kW |
| Power Output Connectors Details |
|
