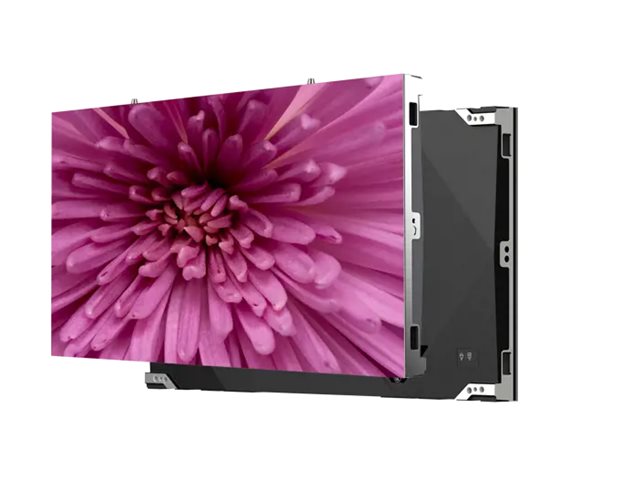

Planar DirectLight Essential Complete
MSRP$165,159.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar DirectLight Essential Complete
- LED video wall
- digital signage
- 3840 x 2160 163"
- Chip On Board (CoB)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $165,159.00 |
| Mfr Part #: | 998-4554-00 |
| SHI Part #: | 50396620 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Planar DirectLight Essential Complete - LED video wall - digital signage - 3840 x 2160 163" - Chip On Board (CoB) |
| Manufacturer | Planar |
| MSRP | $165,159.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 1500 cd/m² |
| Television / Image Contrast Ratio | 30000:1 |
| Television / PC Interface | DisplayPort |
| Television / Type | LED video wall |
| Television / Viewing Angle | 170° |
| Connections | |
| Connector Type |
|
| Display | |
| Backlight Life | 100,000 hour(s) |
| Brightness | 1500 cd/m² |
| Color Temperature | 3000 - 10000K |
| Frame Rate & Enhancement Technology | 120 Hz Frame Rate, 3840 Hz Refresh Rate |
| Image Contrast Ratio | 30000:1 |
| LCD Backlight Technology | LED backlight |
| Min Viewing Distance | 3.4 - 6.1 m |
| Pixel Pitch | 0.93 mm |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 150° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -10 °C |
| General | |
| Commercial Use | Yes - digital signage |
| HDMI Ports Qty | 4 ports |
| PC Interface | DisplayPort |
| Picture Enhancements | Color temperature adjustment |
| Product Type | LED video wall |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Miscellaneous | |
| Cables Included | IR extension cable |
| Included Accessories | IR receiver, hex key, module removal tool, module z-axis tool, trim kit, spare module |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Power | |
| Input Voltage | AC 100-240 V |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 4320 W |
| Video Wall Display Unit Power Consumption (Typical) | 923 W |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Video Wall | |
| Diagonal Size | 163" |
| Resolution | 3840 x 2160 |
| Video Wall Display Unit | |
| LED Lifetime | 100000 hours |
| LED Type | Chip On Board (CoB) |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 6x6 |
| Pixel Pitch | 0.93 mm |
