ASUS ExpertCenter D7 D701SER XS703
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

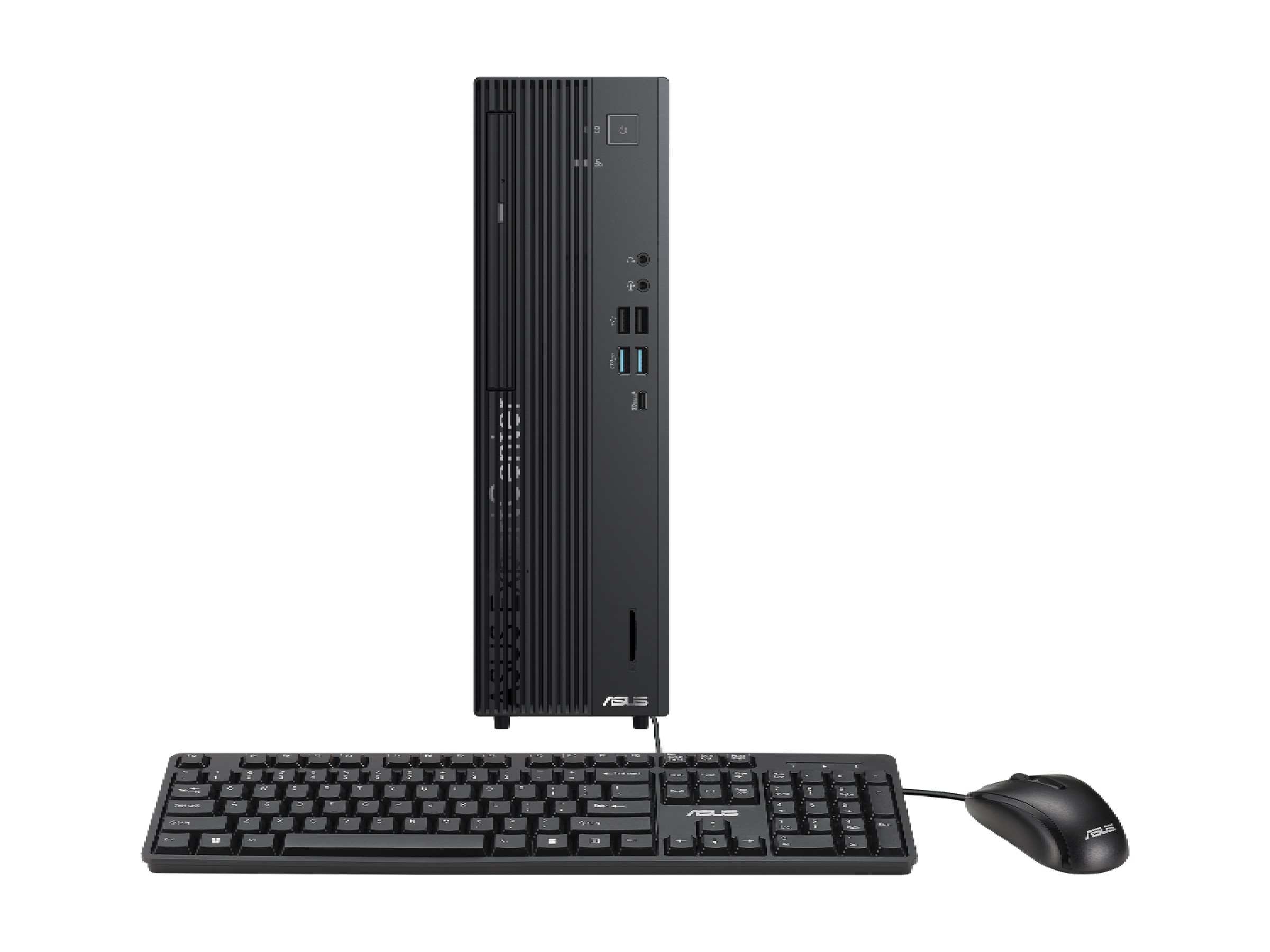

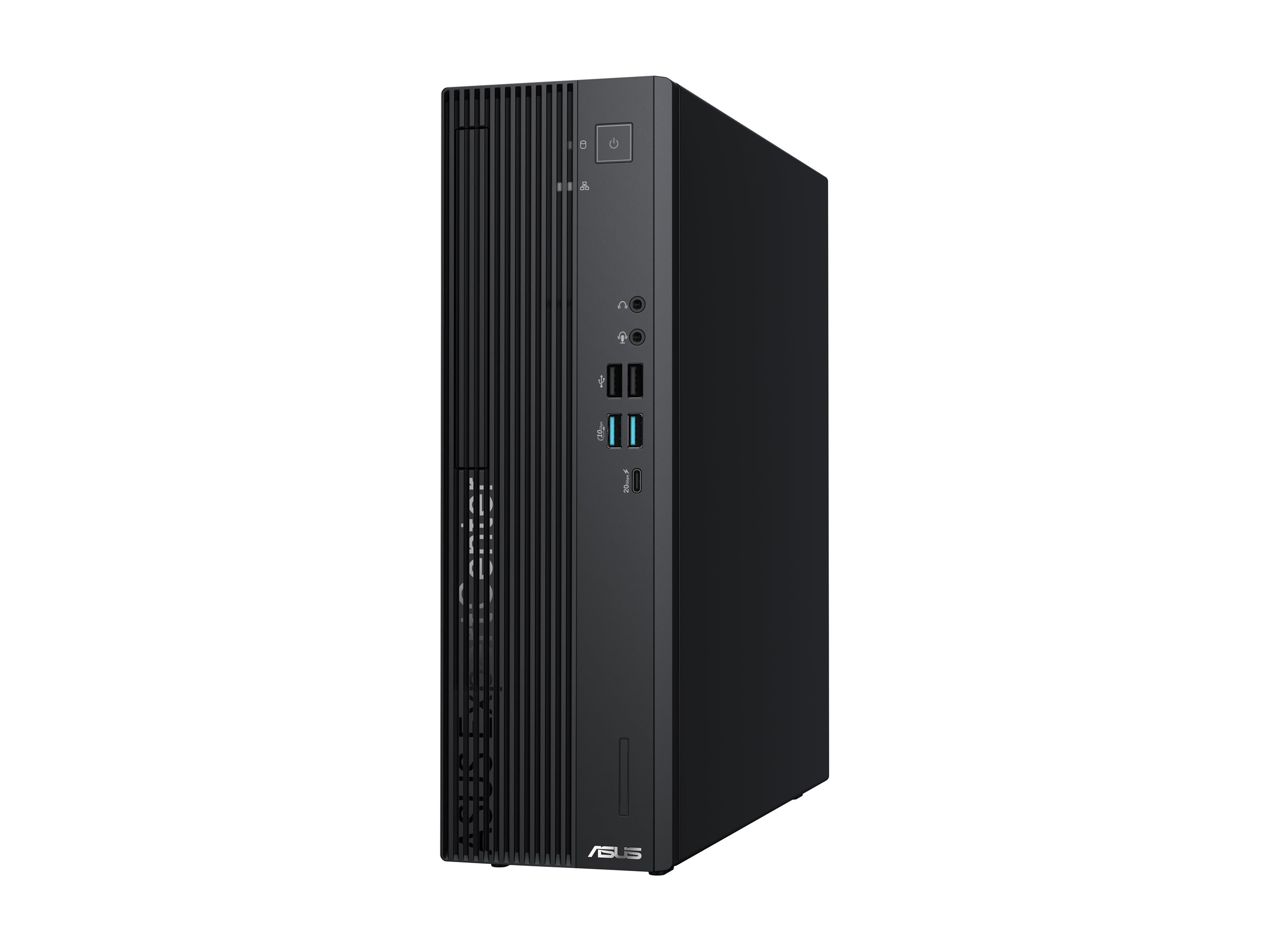

ASUS ExpertCenter D7 D701SER XS703
- SFF Core i7 i7-14700 / up to 5.4 GHz
- RAM 16 GB
- SSD 512 GB
- NVMe
- UHD Graphics 770
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
- Win 11 Pro
- monitor: none
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | D701SER-XS703 |
| SHI Part #: | 50394461 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ASUS ExpertCenter D7 D701SER XS703 - SFF Core i7 i7-14700 / up to 5.4 GHz - RAM 16 GB - SSD 512 GB - NVMe - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - black |
| Manufacturer | ASUS |
| MSRP | $1,099.99 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.6 cm |
| Dimensions & Weight / Height | 30.9 cm |
| Dimensions & Weight / Weight | 6 kg |
| Dimensions & Weight / Width | 9.3 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel B760 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | I7-14700 |
| Processor / Type | Core i7 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 33 MB |
| Installed Size | 33 MB |
| Card Reader | |
| Supported Flash Memory Cards | MultiMediaCard, SD Memory Card |
| Type | 2 in 1 card reader |
| Dimensions & Weight | |
| Depth | 29.6 cm |
| Height | 30.9 cm |
| Weight | 6 kg |
| Width | 9.3 cm |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Product Form Factor | SFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Software | McAfee (30 days trial), MyASUS |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Power Provided | 330 watt |
| Processor / Chipset | |
| Chipset Type | Intel B760 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Slots | 4 (total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s |
| Type | SATA |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
| TCO Certified | TCO Certified, generation 10, for desktops |
