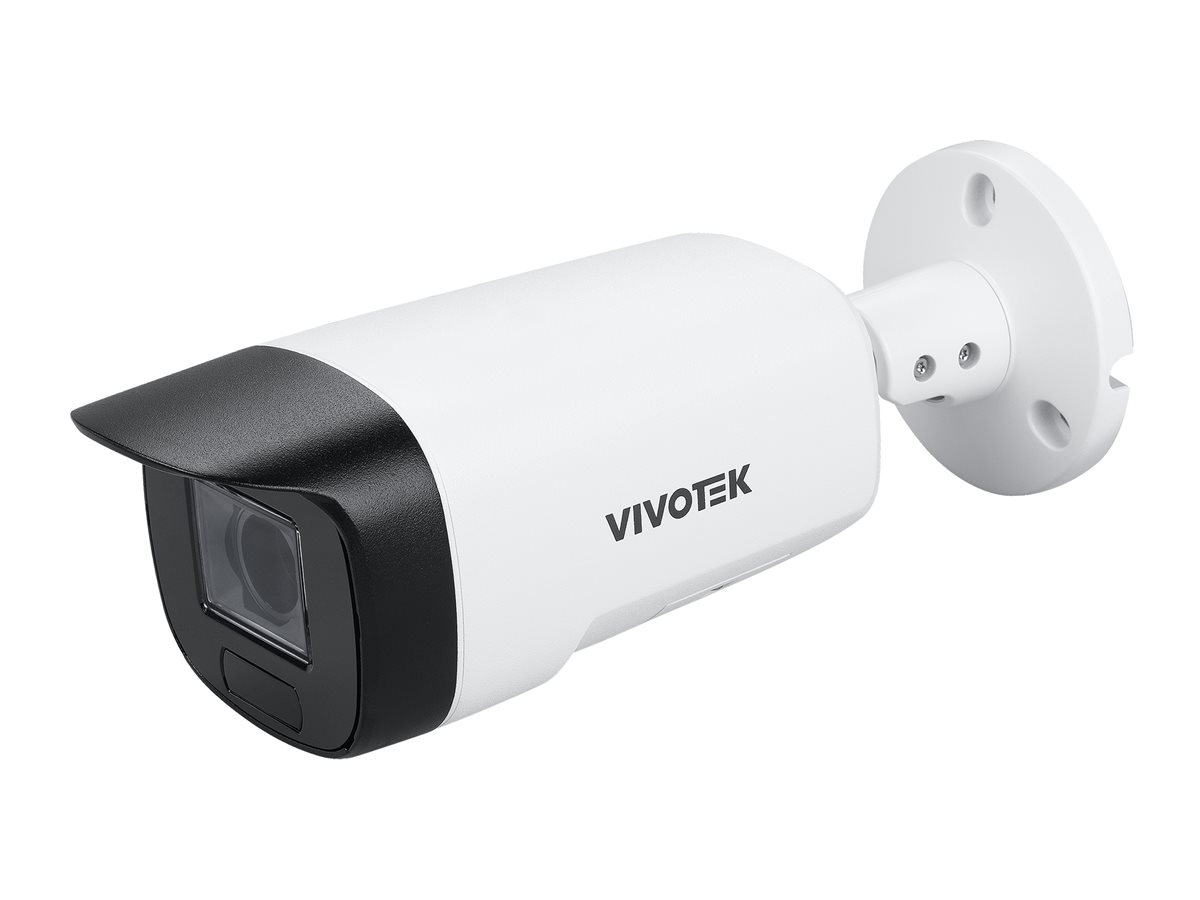

Vivotek V Series IB9389-EHV-V3
MSRP$682.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vivotek V Series IB9389-EHV-V3
- Network surveillance camera
- bullet
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- fixed iris
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $682.00 |
| Mfr Part #: | IB9389-EHV-V3 |
| SHI Part #: | 50373533 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Vivotek V Series IB9389-EHV-V3 - Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | Vivotek |
| MSRP | $682.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.85 cm |
| Dimensions & Weight / Height | 9.2 cm |
| Dimensions & Weight / Weight | 1.03 kg |
| Dimensions & Weight / Width | 9.2 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1920, 2048 x 1536, 1920 x 1440, 1920 x 1080, 1600 x 1200, 1600 x 904, 1360 x 768, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 640 x 360 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart IR, 350° rotation, ePTZ, NAS-Ready, Pixel Calculator, 55 dB signal-to-noise ratio, Smart Stream III, embedded SOC processor, Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image flip, image mirror, infrared cut filter, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), Electronic Image Stabilizer (EIS), tamper-detection, Event Notification, password protection, triple video stream, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Smart Motion Detection, ONVIF (Profile T) support, ONVIF (Profile M) support |
| Flash Memory | 8 GB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | 4 |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -35 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, MPEG2 AAC-LC |
| Audio Support | Yes: built-in microphone, two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 25.85 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.2 cm |
| Weight | 1.03 kg |
| Width | 9.2 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, CoS |
| Lens Construction | |
| Diagonal Field of View (degree) | 135.2 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 103.4 |
| Lens Iris | F/2.0 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 75.3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | VCCI, IEC 60529 IP66, FCC Part 15 B Class A, IEC 62262 IK10, EN 50121-4, RCM, CNS 13438, IEC 60950-22, IS13252, BIS, EN 60950-22, EN 55024 Class A, AS/NZS CISPR 32 Class A, CNS 14336-1, IEC/EN 62471, EN 55032, IEEE 802.3af, UL 62368-1, IEC/EN 62368-1, IEC 60529 IP67 |
| Included Accessories | Alignment sticker, screw pack, cable gland |
| Power | |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 80 |
