Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

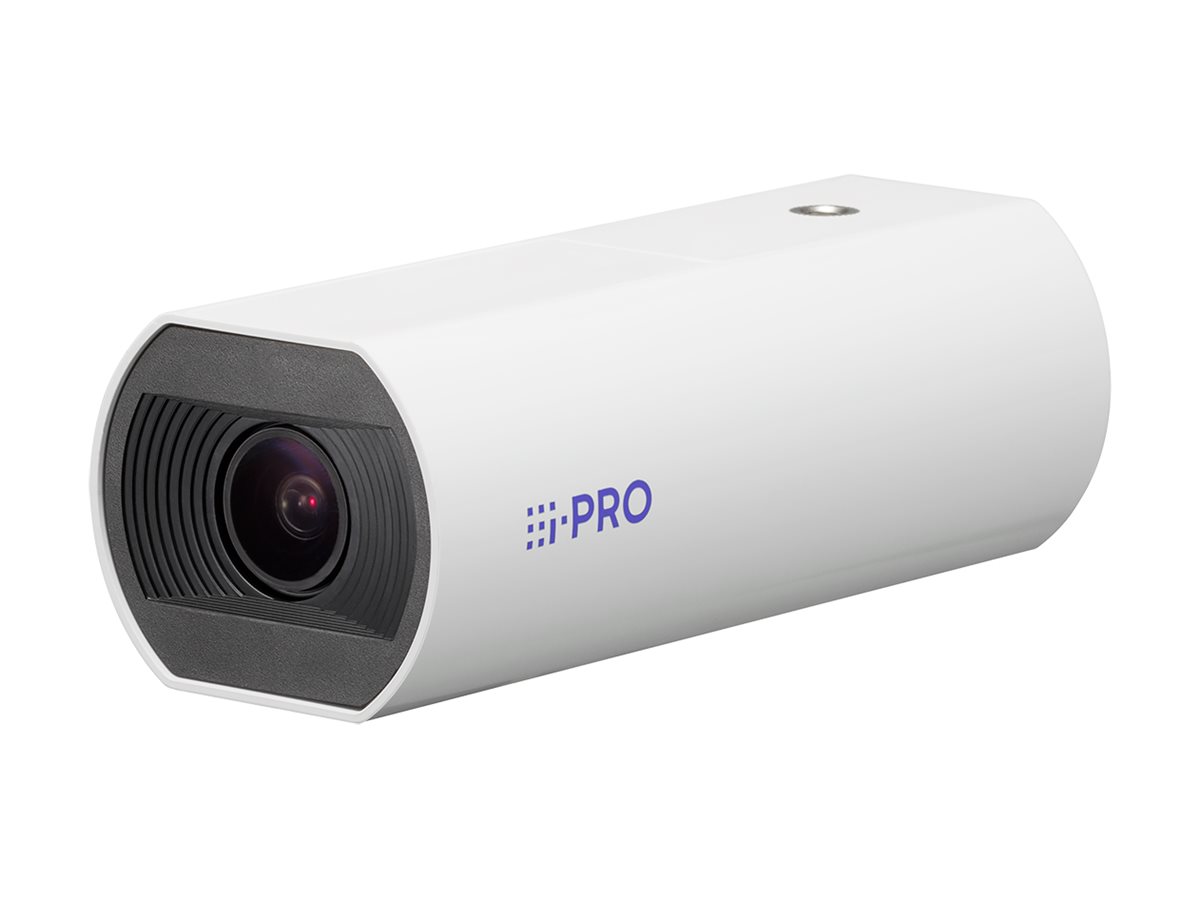

i-PRO U-Series WV-U11550-V3

MSRP$792.04
$565.00
i-PRO U-Series WV-U11550-V3
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • box
  • indoor
  • color (Day&Night)
  • 5 MP
i-PRO U-Series WV-U11550-V3
  • Network surveillance camera
  • box
  • indoor
  • color (Day&Night)
  • 5 MP
  • 2592 x 1944
  • motorized
  • audio
  • LAN 10/100
  • H.264, H.265, MJPEG
  • DC 48 V / PoE
  Additional Details
Price: $565.00
MSRP: $792.04
Mfr Part #: WV-U11550-V3
SHI Part #: 50363604
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: i-Pro Americas Inc.
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO U-Series WV-U11550-V3 - Network surveillance camera - box - indoor - color (Day&Night) - 5 MP - 2592 x 1944 - motorized - audio - LAN 10/100 - H.264, H.265, MJPEG - DC 48 V / PoE
Manufactureri-Pro Americas Inc.
MSRP$792.04
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth14.2 cm
Dimensions & Weight / Height4.9 cm
Dimensions & Weight / Weight290 g
Dimensions & Weight / Width5.9 cm
Header / Brandi-Pro
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type7-year warranty
System Requirements / OS Required
  • Android
  • Apple iOS 8.0 or higher
Camera
Digital Video FormatH.264, H.265, MJPEG
Digital Zoom12.8
Exposure Range16/30 sec - 1/10000 sec
Features802.1x authentication, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Super Dynamic technology, Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, digital noise reduction, Scene Change Detection (SCD), 8 privacy zones, 90° image rotation, 180° image rotation, 270° image rotation, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, e-mail alerts, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, 4 video streams, AI Sound Classification, AI vehicle detection, glass-break detection, gunshot detection, 8 VIQS zones, 82.1m observe distance (tele), Ambarella CV25M SoC, 16.6m observe distance (wide), 205.4m detect distance (tele), 41.5m detect distance (wide), 41.1m recognize distance (tele), 8.3m recognize distance (wide), 20.5m identify distance (tele), 4.1m identify distance (wide), audio recording, AI Analytics
Max Digital Video Resolution2592 x 1944
Minimum Illumination
  • 0.07 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
  • 0.1 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.006 lux - color - F1.6 - 50 IRE - shutter 16/30 sec
  • 0.04 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.003 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - fixed - indoor
Video Capture
  • 2560 x 1440 @ 25/30 fps
  • 1920 x 1080 @ 25/30 fps
  • 1280 x 720 @ 25/30 fps
  • 640 x 360 @ 25/30 fps
  • 320 x 180 @ 25/30 fps
  • 2592 x 1944 @ 25/30 fps
  • 2560 x 1920 @ 25/30 fps
  • 1280 x 960 @ 25/30 fps
  • 640 x 480 @ 25/30 fps
  • 320 x 240 @ 25/30 fps
  • 800 x 600 @ 12.5 fps
  • 400 x 300 @ 12.5 fps
  • 2592 x 1944 @ 12.5 fps
  • 2560 x 1920 @ 12.5 fps
  • 1280 x 960 @ 12.5 fps
  • 640 x 480 @ 12.5 fps
  • 320 x 240 @ 12.5 fps
  • 320 x 240 @ 15 fps
  • 400 x 300 @ 15 fps
  • 640 x 480 @ 15 fps
  • 1280 x 960 @ 15 fps
  • 2560 x 1920 @ 15 fps
  • 2592 x 1944 @ 15 fps
  • 800 x 600 @ 15 fps
Environmental Parameters
Max Operating Temperature50 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)10 - 90% (non-condensing)
Expansion / Connectivity
Encryption AlgorithmFIPS 140-3 Level 3
Ports
  • LAN/power - RJ-45
  • Audio line-in/microphone - 3.5 mm stereo jack
  • Audio line out - 3.5 mm stereo jack
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, G.711, AAC-LC
Audio SupportYes
Connectivity TechnologyWired
Depth14.2 cm
Device TypeNetwork surveillance camera
Form FactorBox
Height4.9 cm
Weight290 g
Width5.9 cm
Image Sensor
Type5 MP CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsIPv6, IPv4, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, SMTP, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, FTP, SFTP, LLDP, MQTT, RTSP, DHCP, DDNS, UPnP, IGMP, SRTP, TLS, SNMP 1, SNMP 2, SNMP 3, RTCP
Internet of Things (IoT)
Supported Host Device PlatformAndroid, iOS
Lens Construction
Focal Length3.2 mm - 10.2 mm
Focus AdjustmentMotorized
Horizontal Field of View (degree)28 - 103
Lens IrisF/1.6-3.2
Min Focus Distance2 m
Optical Zoom3.2 x
TypeMotorized zoom
Vertical Field of View (degree)16 - 73
Manufacturer Warranty
Service & SupportLimited warranty - 7 years
Miscellaneous
ColorI-PRO White
Compliant StandardsIEEE 802.1x, NDAA, IEEE 802.3af, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, IEC 62368-1 Third Edition, FCC Part15 Subpart B Class B (U.S.A.), ICES-003 issue 7 Class A, EN 55032 Class A, EN55035, cUL
Power
Power Device6.7 Watt
Power RequirementsDC 48 V / PoE - 140 mA
Software / System Requirements
OS RequiredAndroid, Apple iOS 8.0 or higher
