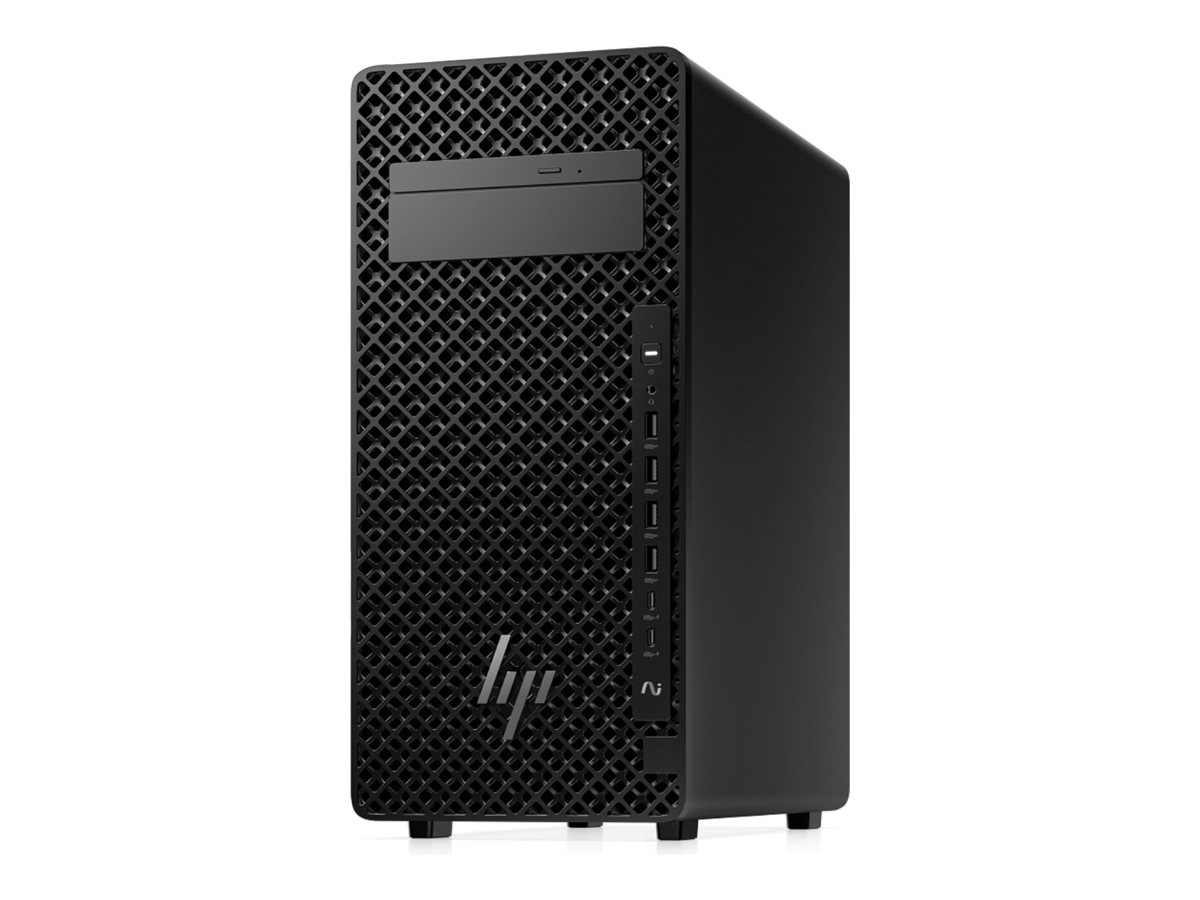

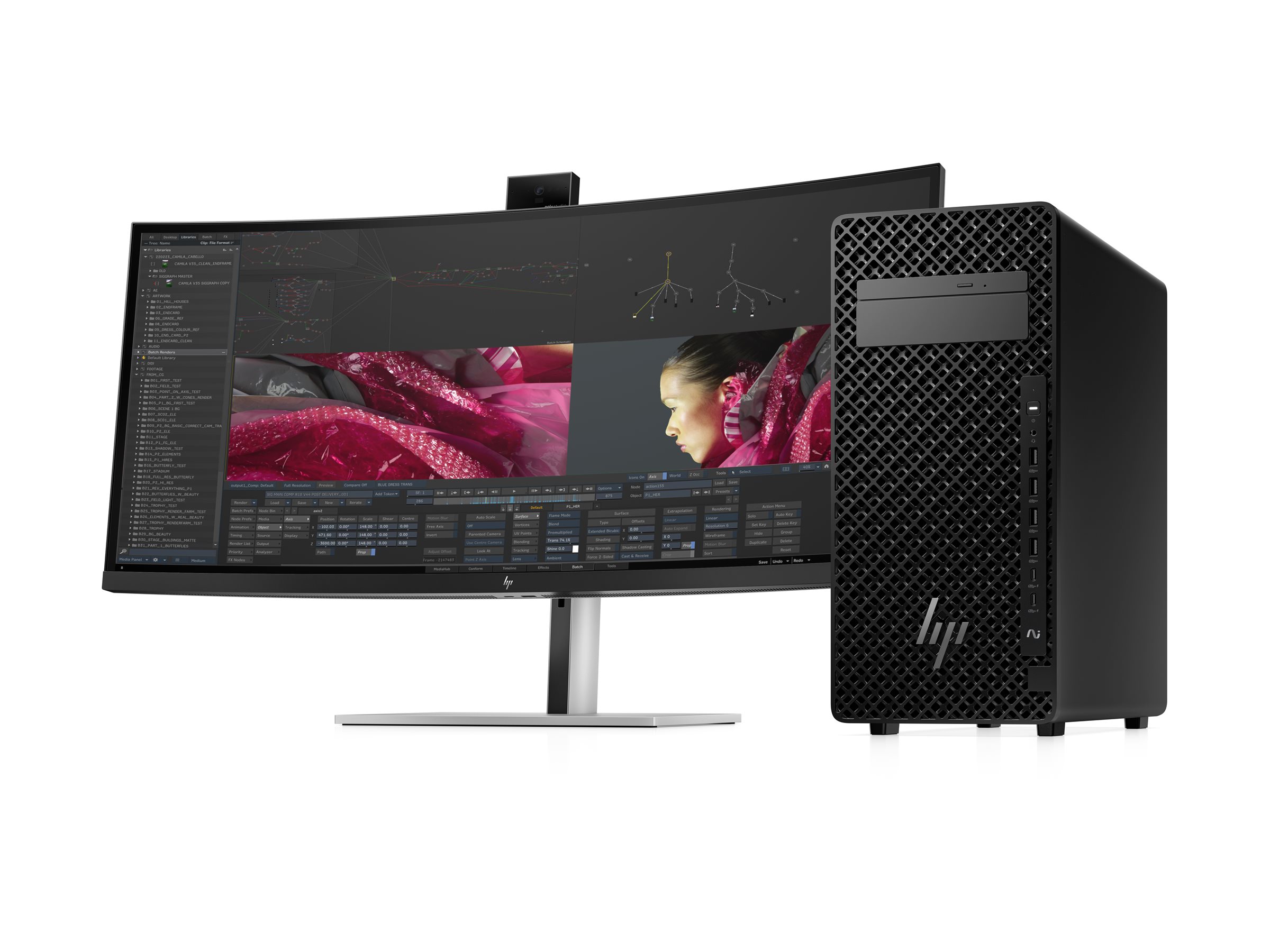

HP Workstation Z2 G1i

Login for Price
HP Workstation Z2 G1i
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Tower 4U
  • 1 x Core Ultra 9 285 / up to 5.6 GHz
  • RAM 32 GB
  • SSD 1 TB
  • HP Z Turbo Drive, TLC
HP Workstation Z2 G1i
  • Tower 4U
  • 1 x Core Ultra 9 285 / up to 5.6 GHz
  • RAM 32 GB
  • SSD 1 TB
  • HP Z Turbo Drive, TLC
  • RTX 4000 Ada
  • Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • black
  • Smart Buy
  • with HP Wolf Pro Security Edition (1 year)
  Additional Details
Mfr Part #: BN5K3UT#ABA
SHI Part #: 50316762
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G1i - Tower 4U - 1 x Core Ultra 9 285 / up to 5.6 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, TLC - RTX 4000 Ada - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
A/V Interface TypePCI Express 4.0 x16
Chassis / Form FactorTower
Dimensions & Weight / Depth42.6 cm
Dimensions & Weight / Height38.8 cm
Dimensions & Weight / Weight8.6 kg
Dimensions & Weight / Width17.5 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0
Hard Drive / Interface TypePCI Express 4.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W880
Mainboard / Processor SocketLGA1851 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed2.5 GHz
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores24-core
Processor / Processor Number285
Processor / TypeCore Ultra 9
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed2800 MHz
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity1 TB
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA RTX 4000 Ada / Intel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor36 MB
Installed SizeL3 cache - 36 MB
Dimensions & Weight
Depth42.6 cm
Height38.8 cm
Weight8.6 kg
Width17.5 cm
Dimensions & Weight (Shipping)
Shipping Depth49 cm
Shipping Height29.5 cm
Shipping Weight12.5 kg
Shipping Width59 cm
Environmental Parameters
Humidity Range Operating8 - 85% RH (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 1 (total) / 1 (free) x external 3.5"
  • 1 (total) / 1 (free) x external 5.25" Slim Line
  • 1 (total) / 1 (free) x internal 3.5"
Interfaces
  • 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support)
  • 6 x USB 3.2 Gen 2 (4 front, 2 rear)
  • 1 x audio line-in (1 rear)
  • 1 x audio line-out (1 rear)
  • 2 x DisplayPort 1.4 (2 rear)
  • 3 x USB 2.0 - Type A (3 rear)
  • 2 x USB 3.2 Gen 2x2 (2 front) (charging)
  • 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear)
  • 4 x DisplayPort 1.4a
Slots
  • 1 (total) / 0 (free) x PCIe 5.0 x16 - full-length, full-height
  • 1 (total) / 1 (free) x PCIe 4.0 x4 - full-length, full-height (x1 mode, open ended)
  • 1 (total) / 1 (free) x PCIe 4.0 x4 - full-length, full-height (open ended)
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x4 mode)
  • 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
  • 1 (total) / 1 (free) x M.2 Card - 2280 (PCIe 5.0 x4 mode (for internal storage))
  • 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module)
General
Built-in DevicesSpeaker
Bundled withHP Wolf Pro Security Edition (1 year)
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorTower - 4U
SensorsHP Tamper Lock
TypeWorkstation
Graphics Controller
Bandwidth360 GBps
Graphics ProcessorNVIDIA RTX 4000 Ada / Intel Graphics - up to 8 TOPS
Interface TypePCIe 4.0 x16
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesDisplayPort
Video Memory20 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 1 TB
FeaturesHP Z Turbo Drive, triple-level cell (TLC)
Interface TypePCI Express 4.0
TypeSSD - M.2
Input Device
TypeKeyboard, mouse
Keyboard
Keyboard NameHP 320K
Localization & LayoutUS
Miscellaneous
Compliant StandardsUL, CB, CCC, FCC, RoHS, FIPS 140-2, WEEE, ICES, CEC, ERP, CECP, CEL, BIS, low halogen
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 320M
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I219-LM
FeaturesACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, Intel Active Management Technology (AMT) 19
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)36 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro English
SoftwareHP Support Assistant, myHP, WPS Office, Touchpoint Customizer for Commercial, HP UEFI BIOS Certification level 2.7B, HP PC Hardware Diagnostics Windows, HP Notifications, HP Desktop Support Utilities, HP Documentation, HP Client Catalog (free download), HP Cloud Recovery, HP Driver Packs, HP Client Management Script Library (free download), HP System Software Manager (free download), HP BIOS Configuration Utility (free download), HP Image Assistant (free download)
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Efficiency92%
Power Factor CorrectionYes (active)
Power Provided700 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W880
Clock Speed2.5 GHz (P-core) / 1.9 GHz (E-core)
CPUIntel Core Ultra 9 (Series 2) 285
CPU Qty1
CPU SocketLGA1851 Socket
CPU UpgradabilityUpgradable
L2 cache40 MB
Max CPU Qty1
Max Turbo Speed5.6 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores24-core
Processor Main FeaturesIntel Turbo Boost Technology 2, Intel Thermal Velocity Boost, Intel Turbo Boost Max 3.0, Intel Smart Cache
RAM
Configuration Features2 x 16 GB
Effective Memory Speed2800 MHz
FeaturesUnbuffered
Form FactorDIMM 288-pin
Installed Size32 GB (installed) / 256 GB (max)
Rated Memory Speed2800 MHz
Slots4 (total) / 2 (empty)
TechnologyDDR5 SDRAM
Storage Controller
Controller Interface TypeSATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Type1 x SATA/NVMe
Sustainability Information
ENERGY STAR CertifiedYes
EPEAT CompliantEPEAT Gold
