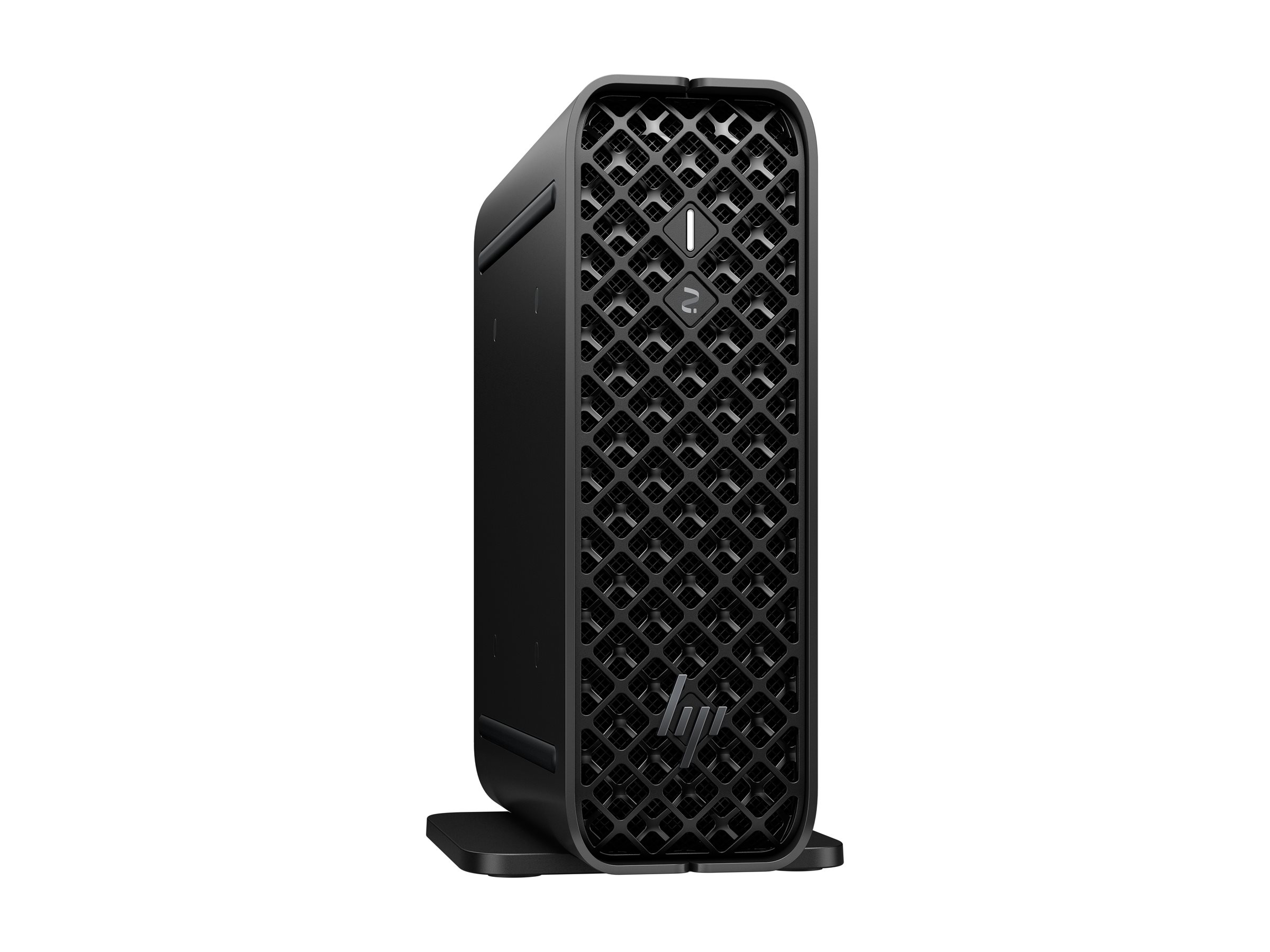

HP Workstation Z2 G1i

Login for Price
HP Workstation Z2 G1i
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Mini 5U
  • 1 x Core Ultra 7 265 / up to 5.3 GHz
  • RAM 64 GB
  • SSD 1 TB
  • HP Z Turbo Drive, TLC
HP Workstation Z2 G1i
  • Mini 5U
  • 1 x Core Ultra 7 265 / up to 5.3 GHz
  • RAM 64 GB
  • SSD 1 TB
  • HP Z Turbo Drive, TLC
  • RTX A1000
  • IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • black
  • Smart Buy
  • with HP 3 years Next Business Day Onsite Workstation Bundling
  • with HP Wolf Pro Security Edition (1 year)
  Additional Details
Mfr Part #: BM6G3UT#ABA
SHI Part #: 50313516
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G1i - Mini 5U - 1 x Core Ultra 7 265 / up to 5.3 GHz - RAM 64 GB - SSD 1 TB - HP Z Turbo Drive, TLC - RTX A1000 - IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP 3 years Next Business Day Onsite Workstation Bundling - with HP Wolf Pro Security Edition (1 year)
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
A/V Interface TypePCI Express 4.0 x8
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth21.8 cm
Dimensions & Weight / Height6.9 cm
Dimensions & Weight / Weight2.4 kg
Dimensions & Weight / Width21.1 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0
Hard Drive / Interface TypePCI Express 4.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W880
Mainboard / Processor SocketLGA1851 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax/be
  • Bluetooth 5.4
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed2.4 GHz
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores20-core
Processor / Processor Number265
Processor / TypeCore Ultra 7
RAM / Form FactorSO-DIMM 262-pin
RAM / Memory Speed3200 MHz
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity1 TB
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA RTX A1000 / Intel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor30 MB
Installed SizeL3 cache - 30 MB
Dimensions & Weight
Depth21.8 cm
Height6.9 cm
Weight2.4 kg
Width21.1 cm
Dimensions & Weight (Shipping)
Shipping Depth49.9 cm
Shipping Height29.7 cm
Shipping Weight5.4 kg
Shipping Width16.9 cm
Environmental Parameters
Humidity Range Operating8 - 85% RH (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 1 x headphones/microphone (1 side) (CTIA and OMTP headset support)
  • 4 x USB 3.2 Gen 2 (1 side, 3 rear) (one of them is charging)
  • 2 x USB-C 3.2 Gen 2x2 (2 side) (charging)
  • 2 x DisplayPort 1.4 (2 rear)
  • 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear)
  • 4 x Mini DisplayPort 1.4a
Slots
  • 1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode, full-length, low-profile)
  • 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 5.0 x4 mode (for internal storage))
  • 1 (total) / 0 (free) x M.2 Card - 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module)
General
Built-in DevicesSpeaker
Bundled ServicesHP 3 years Next Business Day Onsite Workstation Bundling
Bundled withHP Wolf Pro Security Edition (1 year)
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorMini - 5U
SensorsHP Tamper Lock
TypeWorkstation
Graphics Controller
Bandwidth96 GBps
Graphics ProcessorNVIDIA RTX A1000 / Intel Graphics - up to 8 TOPS
Interface TypePCIe 4.0 x8
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesDisplayPort
Video Memory8 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 1 TB
FeaturesHP Z Turbo Drive, triple-level cell (TLC)
Interface TypePCI Express 4.0
TypeSSD - M.2
Input Device
TypeKeyboard, mouse
Keyboard
Keyboard NameHP 320K
Localization & LayoutUS
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, WEEE, CECP, low halogen
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 320M
Networking
Compliant StandardsIEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 19
Interface (Bus) TypeM.2 2230
Wireless LAN SupportedYes
Wireless NICIntel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)33 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro English
SoftwareHP Support Assistant, HP Secure Erase, HP Image Assistant, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Documentation, HP Desktop Support Utilities, HP Notifications, HP PC Hardware Diagnostics Windows, HP UEFI BIOS Certification level 2.7B, WPS Office, myHP
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Efficiency89%
Power Factor CorrectionYes (active)
Power Provided280 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W880
Clock Speed2.4 GHz (P-core) / 1.8 GHz (E-core)
CPUIntel Core Ultra 7 (Series 2) 265
CPU Qty1
CPU SocketLGA1851 Socket
CPU UpgradabilityUpgradable
L2 cache36 MB
Max CPU Qty1
Max Turbo Speed5.3 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores20-core
Processor Main FeaturesIntel Turbo Boost Technology
RAM
Configuration Features2 x 32 GB
Effective Memory Speed3200 MHz
Form FactorSO-DIMM 262-pin
Installed Size64 GB (installed) / 128 GB (max)
Rated Memory Speed3200 MHz
Slots2 (total) / 0 (empty)
TechnologyDDR5 SDRAM
Storage Controller
Controller Interface TypeNVM Express
RAID LevelRAID 0, RAID 1
Type1 x RAID
Sustainability Information
ENERGY STAR CertifiedYes
EPEAT CompliantEPEAT Gold
