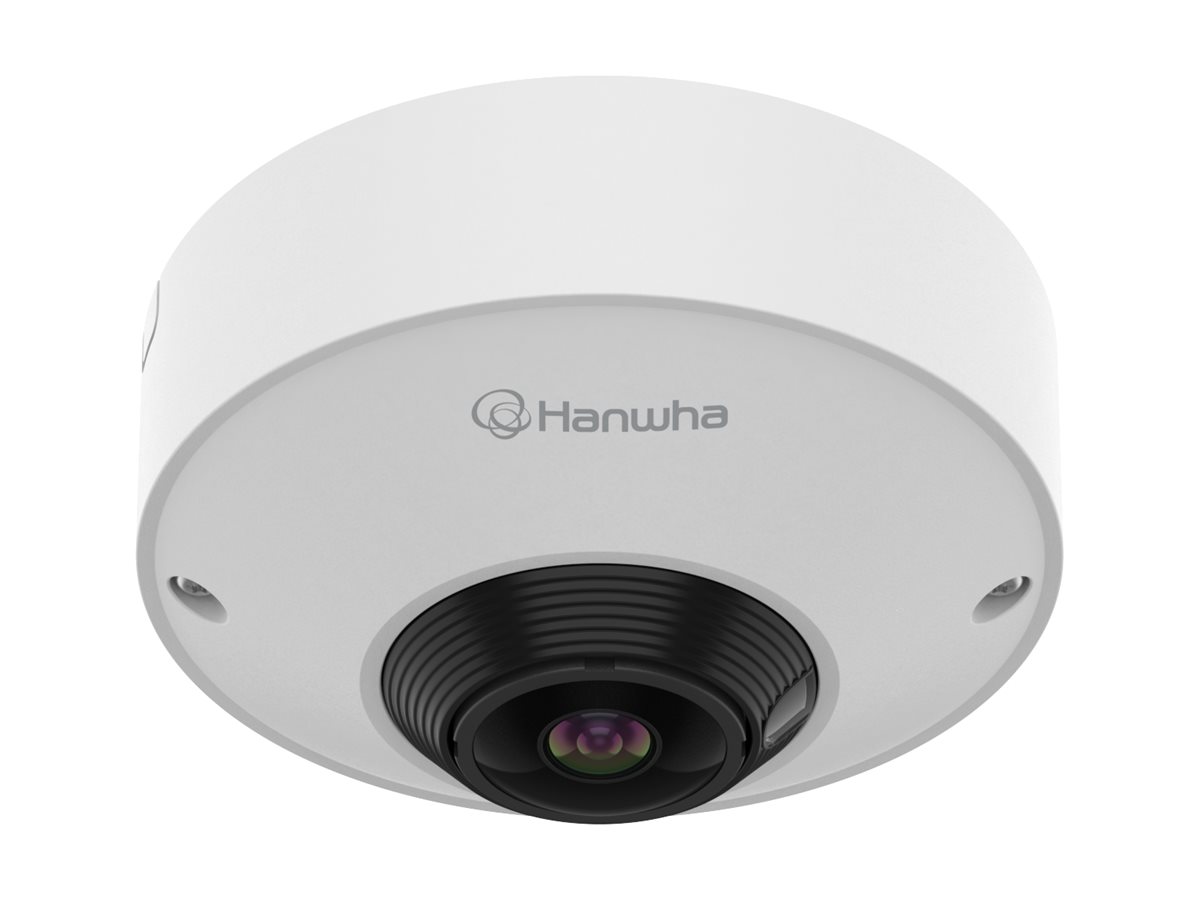

Hanwha Vision WiseNet Q QNF-C9010
MSRP$1,095.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet Q QNF-C9010
- Network surveillance camera
- fisheye
- color (Day&Night)
- 12 MP
- 3584 x 2688
- fixed focal
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,095.00 |
| Mfr Part #: | QNF-C9010 |
| SHI Part #: | 50294528 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNF-C9010 - Network surveillance camera - fisheye - color (Day&Night) - 12 MP - 3584 x 2688 - fixed focal - USB - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,095.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.9 cm |
| Dimensions & Weight / Height | 5.2 cm |
| Dimensions & Weight / Weight | 360 g |
| Dimensions & Weight / Width | 9.9 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3584 x 2688, 3584 x 1792, 3008 x 3008, 3584 x 896, 2560 x 2560, 2048 x 1536, 1920 x 1920, 1920 x 960, 1920 x 480, 1792 x 1344, 1504 x 1504, 1280 x 1280, 1280 x 640, 1280 x 320, 1024 x 768, 1024 x 512, 1024 x 256, 800 x 800, 768 x 576, 640 x 640, 640 x 320, 640 x 160, 512 x 384, 480 x 480 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), WiseNR II, Privacy Mask Function, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, image flip, image mirror, video analytics, Object Detection, Person Detection, Vehicle Detection, clothes color detection, vehicle color recognition, Best Shot Selector (BSS), motion detection, Virtual Line detection, Line Crossing Detection, direction detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, Defocus Detection, Tampering detection, people counting, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, 802.1x authentication, Access Control, aluminum housing |
| Flash Memory | 1 GB |
| Frame Rate (max) | 20 frames per second |
| Max Digital Video Resolution | 3584 x 2688 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 9.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Fisheye |
| Height | 5.2 cm |
| Weight | 360 g |
| Width | 9.9 cm |
| Image Sensor | |
| Type | 12 MP CMOS 1/6" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 185 |
| Focal Length | 1.76 mm |
| Horizontal Field of View (degree) | 185 |
| Lens Iris | F/1.8 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 185 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP42, EN 62676-4 |
| Power | |
| Power Device | 7.3 Watt |
| Power Requirements | PoE Class 3 |
