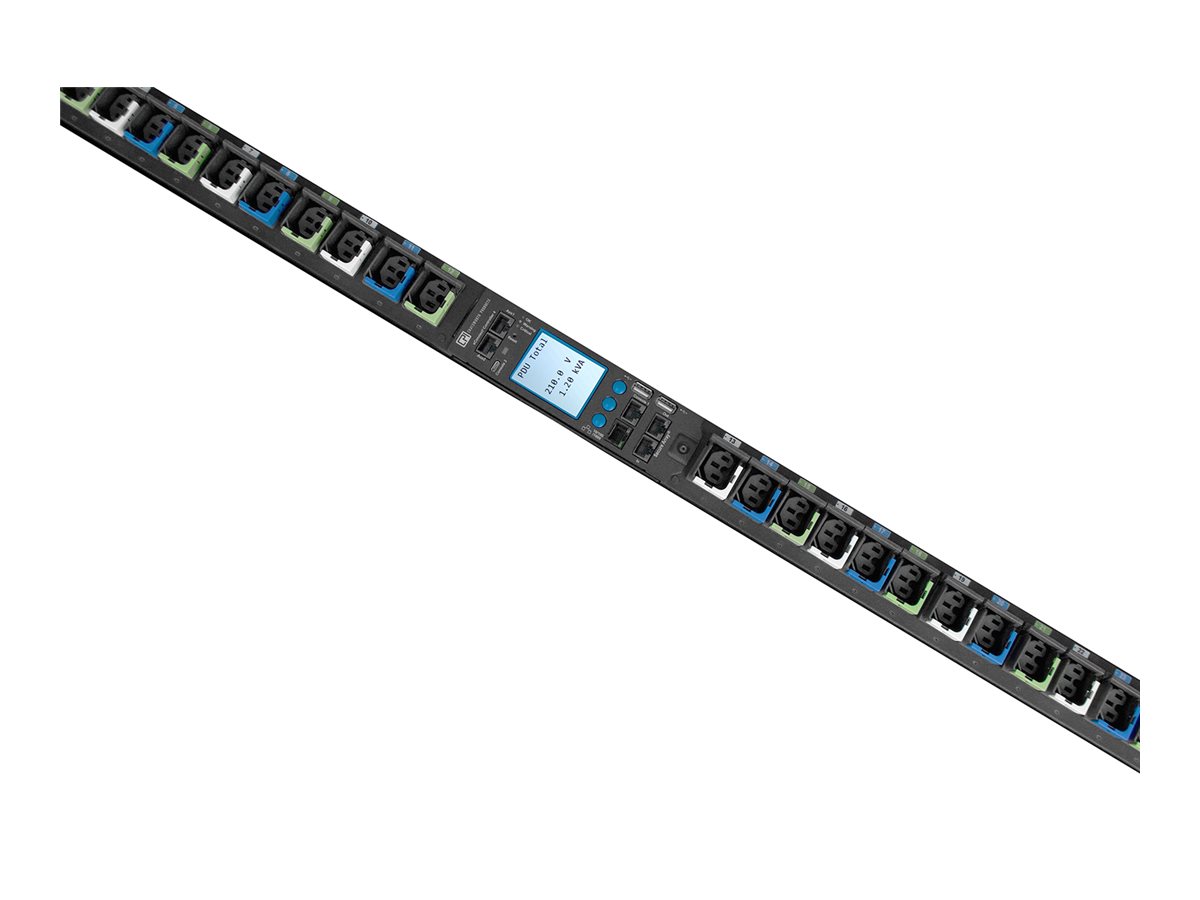

CPI Switched Pro eConnect PDU EA-6015-C
MSRP$3,144.64
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched Pro eConnect PDU EA-6015-C
- Power distribution unit (rack-mountable)
- vertical
- AC 120/208 V
- 8.6 kW
- 3-phase
- Ethernet 10/100/1000, USB, serial
- input: NEMA L21-30P
- output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19)
- 42U
- 3 m cord
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,144.64 |
| Mfr Part #: | EA-6015-C |
| SHI Part #: | 50292844 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect PDU EA-6015-C - Power distribution unit (rack-mountable) - vertical - AC 120/208 V - 8.6 kW - 3-phase - Ethernet 10/100/1000, USB, serial - input: NEMA L21-30P - output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 3 m cord - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $3,144.64 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.01 cm |
| Dimensions & Weight / Height | 182.7 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 5.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 120/208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.01 cm |
| Height | 182.7 cm |
| Weight | 8.2 kg |
| Width | 5.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL 489, IEC 62368, FCC Part 15 A, EN55022, RoHS, UL, cUL, NEMKO |
| Features | Vertical orientation, tool-less, for indoor use, password security, power LED status, Secure Array technology, simplified load balancing, electronic lock integration, monitored per outlet, switched per outlet, outlet grouping, replaceable controller, SD-card transfers PDU identity, Branch Circuit Monitoring System (BCMS), locking outlets, Hydraulic-Magnetic breakers, 5kAIC breaker, current meter, voltage monitoring, power measuring, energy meter, power factor meter, individually switchable sockets, LED indicators, LCD display, environmental sensor ready, bistable latching relays, grounded, firmware upgradable, field-replaceable module, color-coded labels, locking C19 connector, locking C13 connector |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTPS, LDAP, RADIUS, HTTP, SSH, RESTful API |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 120/208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 30 A |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
