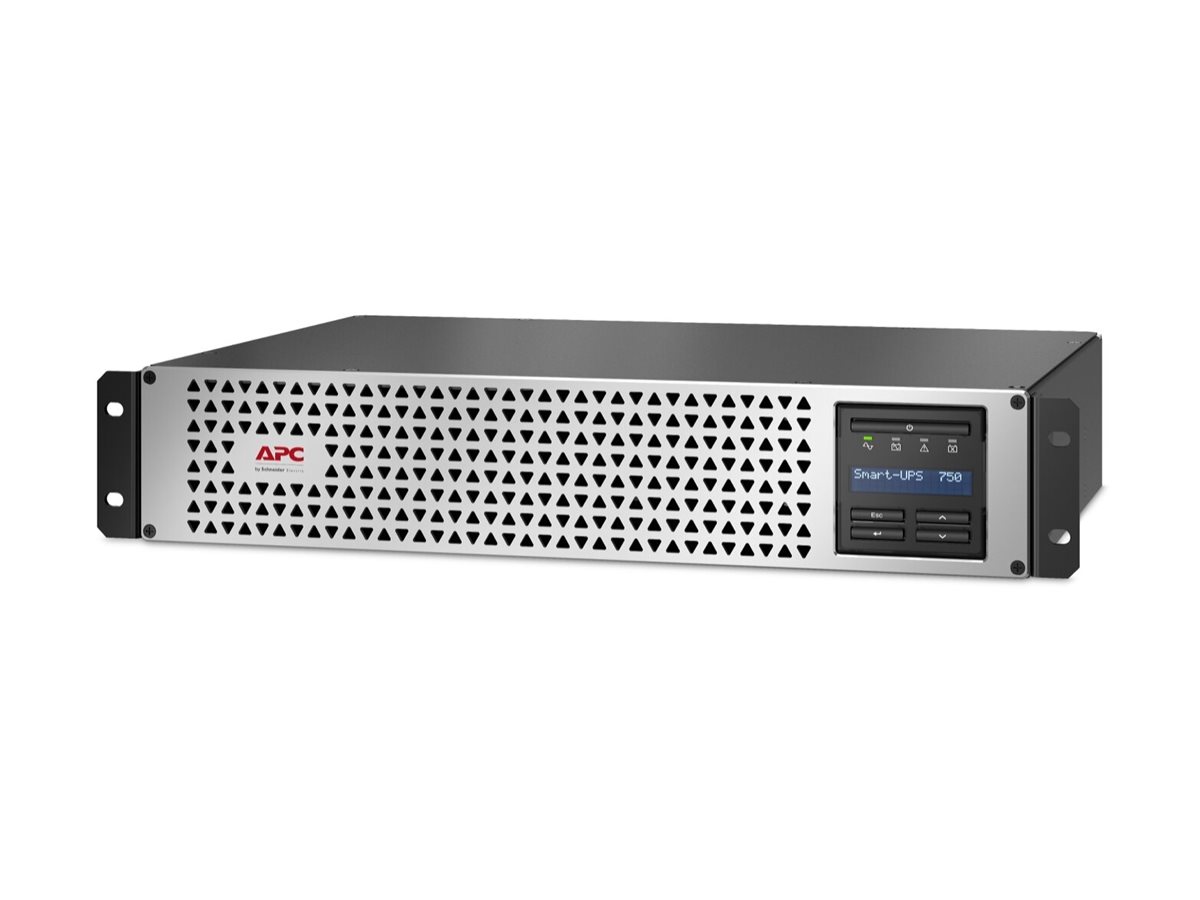

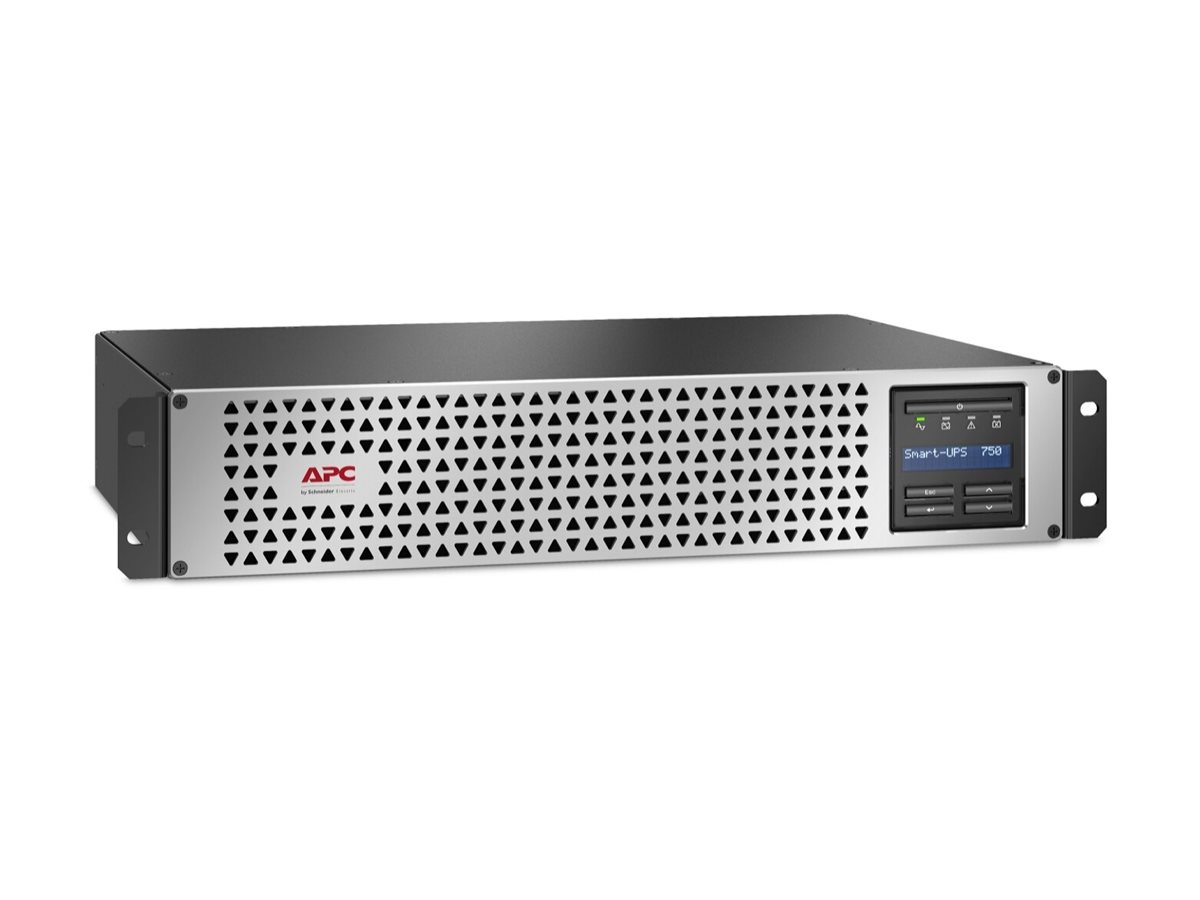

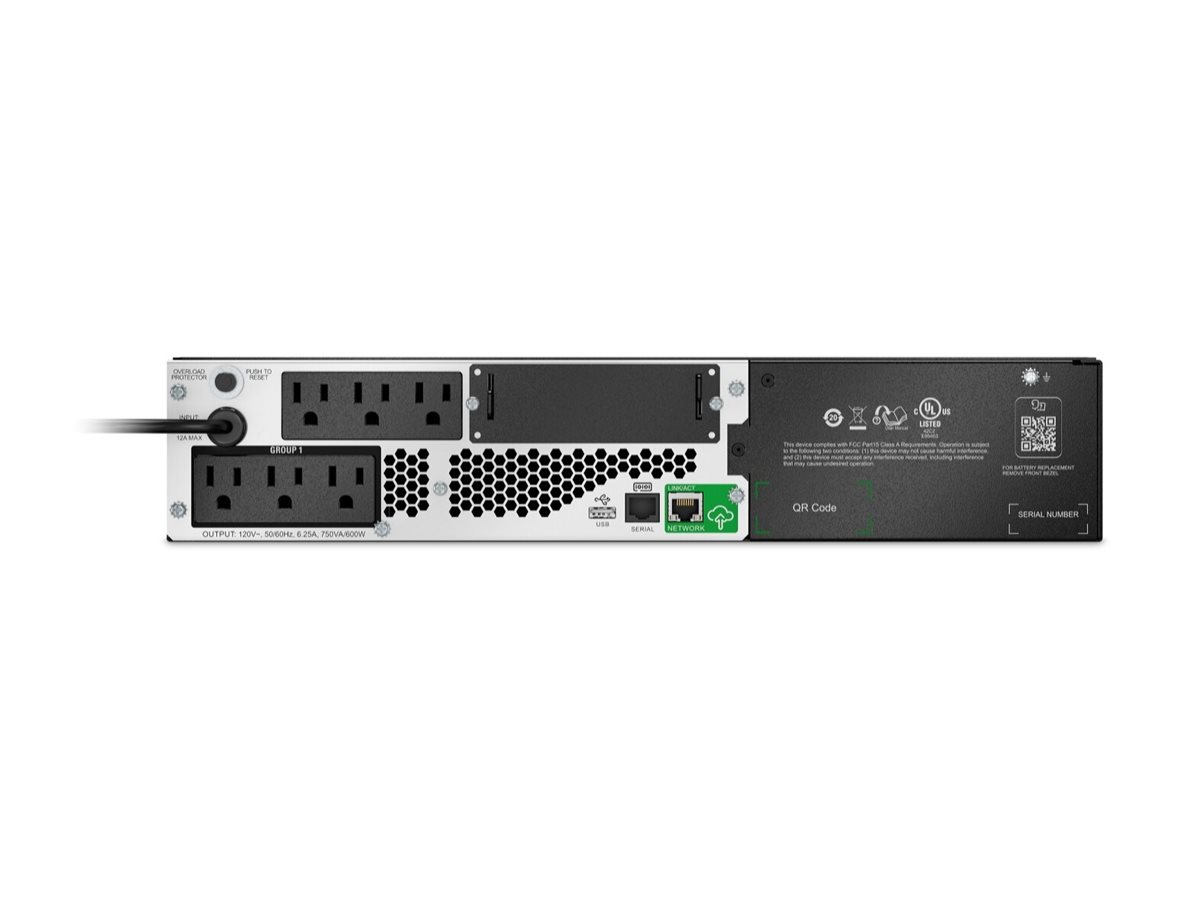

APC Smart-UPS - UPS (rack-mountable)
MSRP$2,015.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
APC Smart-UPS - UPS (rack-mountable)
- 6 NEMA 5-15R outlets, LCD, line interactive, short depth, SmartConnect port, SmartSlot
- AC 120 V
- 600 Watt
- 750 VA
- 1-phase
- lithium ion
- output connectors: 6
- 2U
- black with silver front bezel
- APC Take-Back
- TAA Compliant
- for P/N: AP9613, AP9640, AP9641, AP9643, AP9810, SBP1500RM, WBEXTWAR1YR-SP-03
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,015.00 |
| Mfr Part #: | SMTL750RM2UCUS |
| SHI Part #: | 50270886 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS - UPS (rack-mountable) - 6 NEMA 5-15R outlets, LCD, line interactive, short depth, SmartConnect port, SmartSlot - AC 120 V - 600 Watt - 750 VA - 1-phase - lithium ion - output connectors: 6 - 2U - black with silver front bezel - APC Take-Back - TAA Compliant - for P/N: AP9613, AP9640, AP9641, AP9643, AP9810, SBP1500RM, WBEXTWAR1YR-SP-03 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,015.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.8 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 15.42 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 750 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Technology | Lithium ion lithium ion |
| Transfer Time | 10 ms |
| Compatibility Information | |
| Designed For | P/N: AP9335T, AP9335TH, AP9613, AP9625, AP9640, AP9641, AP9643, AP9810, AR201, SBP1500RM, WBEXTWAR1YR-SP-03, WBEXTWAR3YR-SP-03 |
| Dimensions & Weight | |
| Depth | 31.8 cm |
| Height | 8.6 cm |
| Weight | 15.42 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 58.4 cm |
| Shipping Height | 22.9 cm |
| Shipping Weight | 17.69 kg |
| Shipping Width | 47.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 41 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black with silver front bezel |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | NOM, IP20, UL 1449, REACH |
| Equipment Protection Value | 150000 US Dollars |
| Features | Removable battery, LCD display, auto-sensing, audible alarm, visible alarm |
| Included Accessories | Rack mounting brackets, rack mounting rails |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 97.2% at 25% Load, 98% at 50% Load, 98% at 75% Load, 97.8% at 100% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 600 watt / 750 VA |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Surge Energy Rating | 680 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
