Hardware Computers and Tablets Desktops and Workstations
Add to My Favorites
Desktops and Workstations

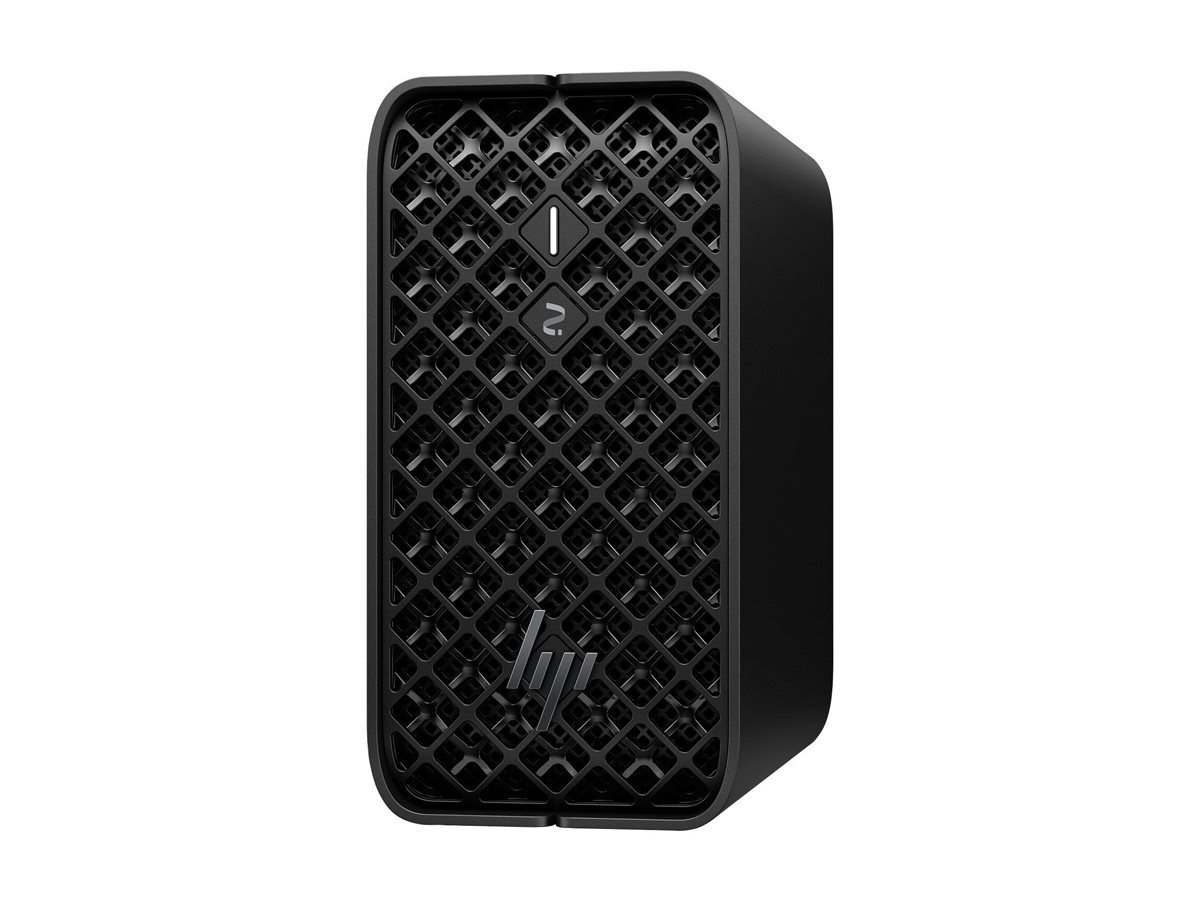

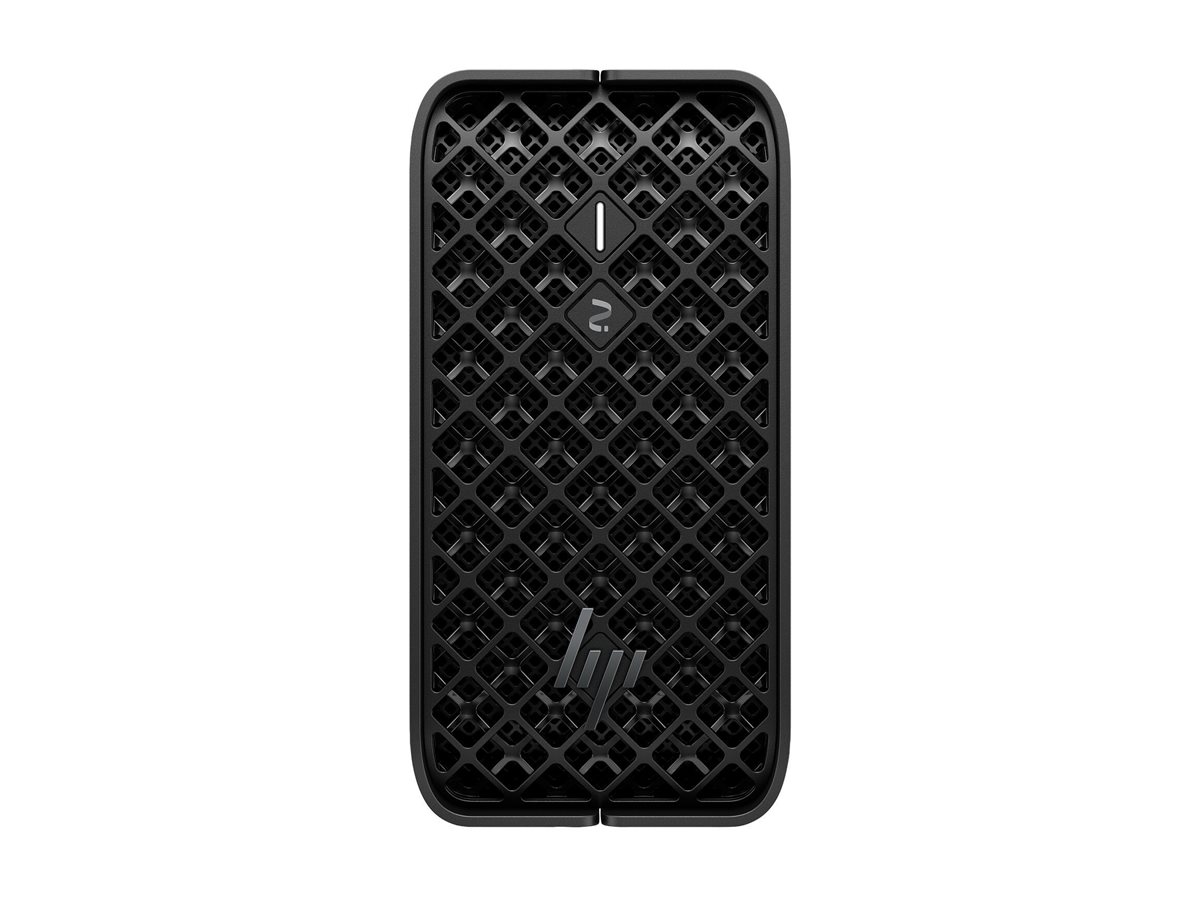

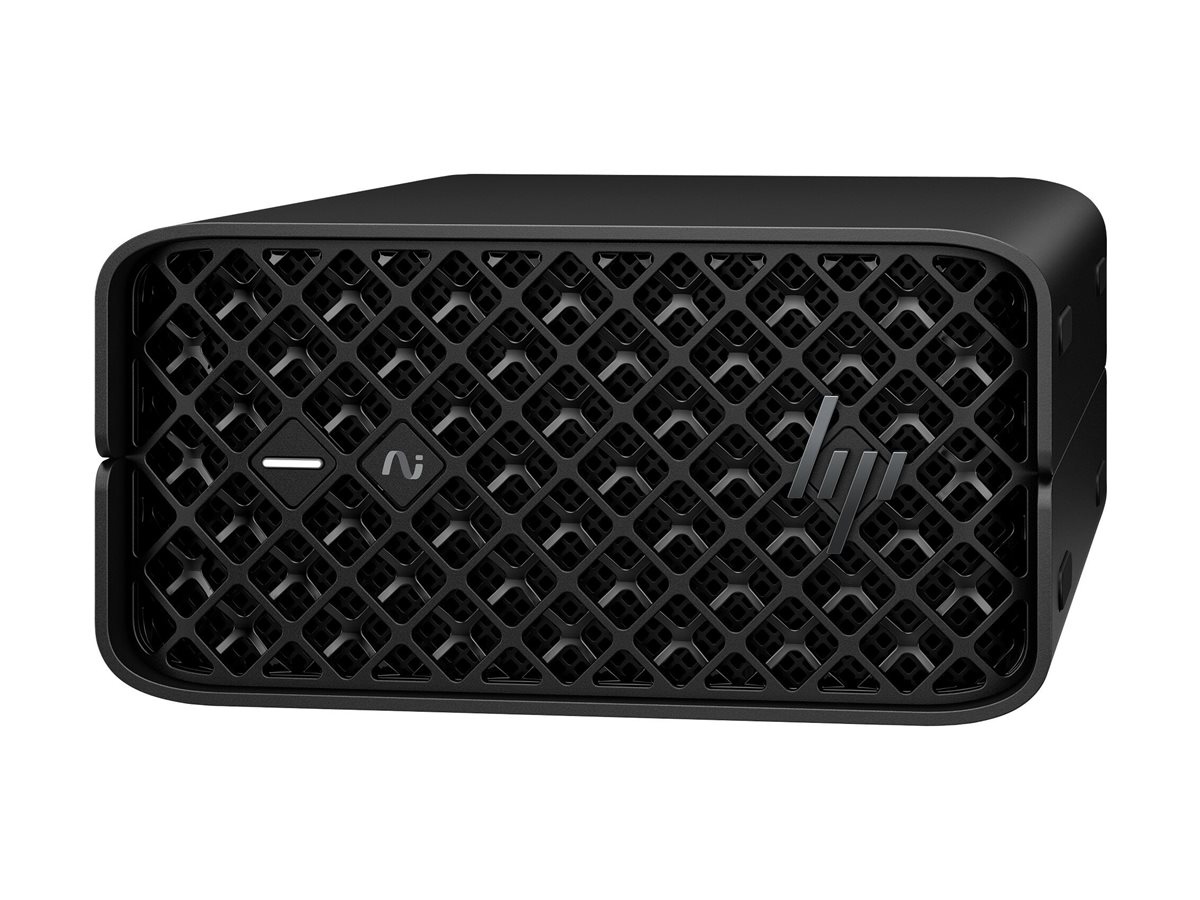

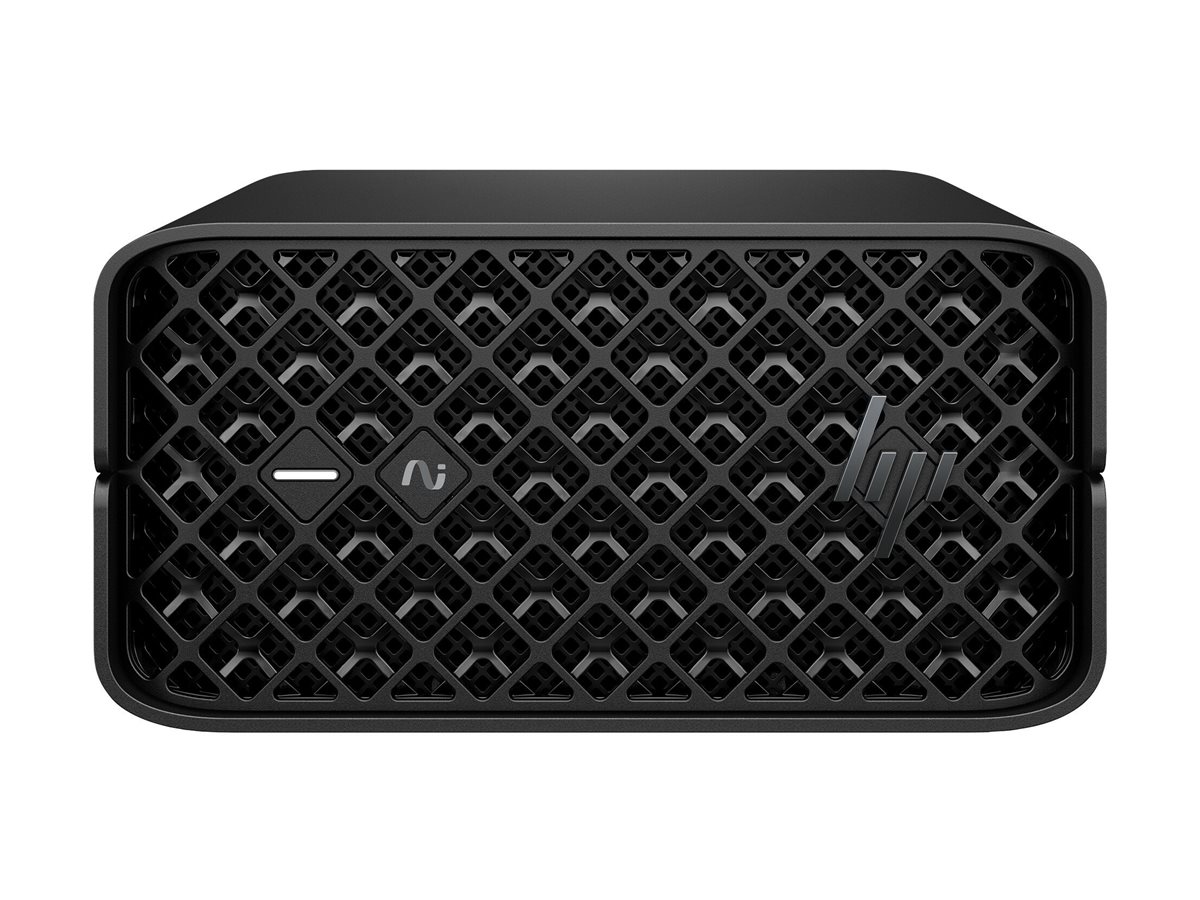

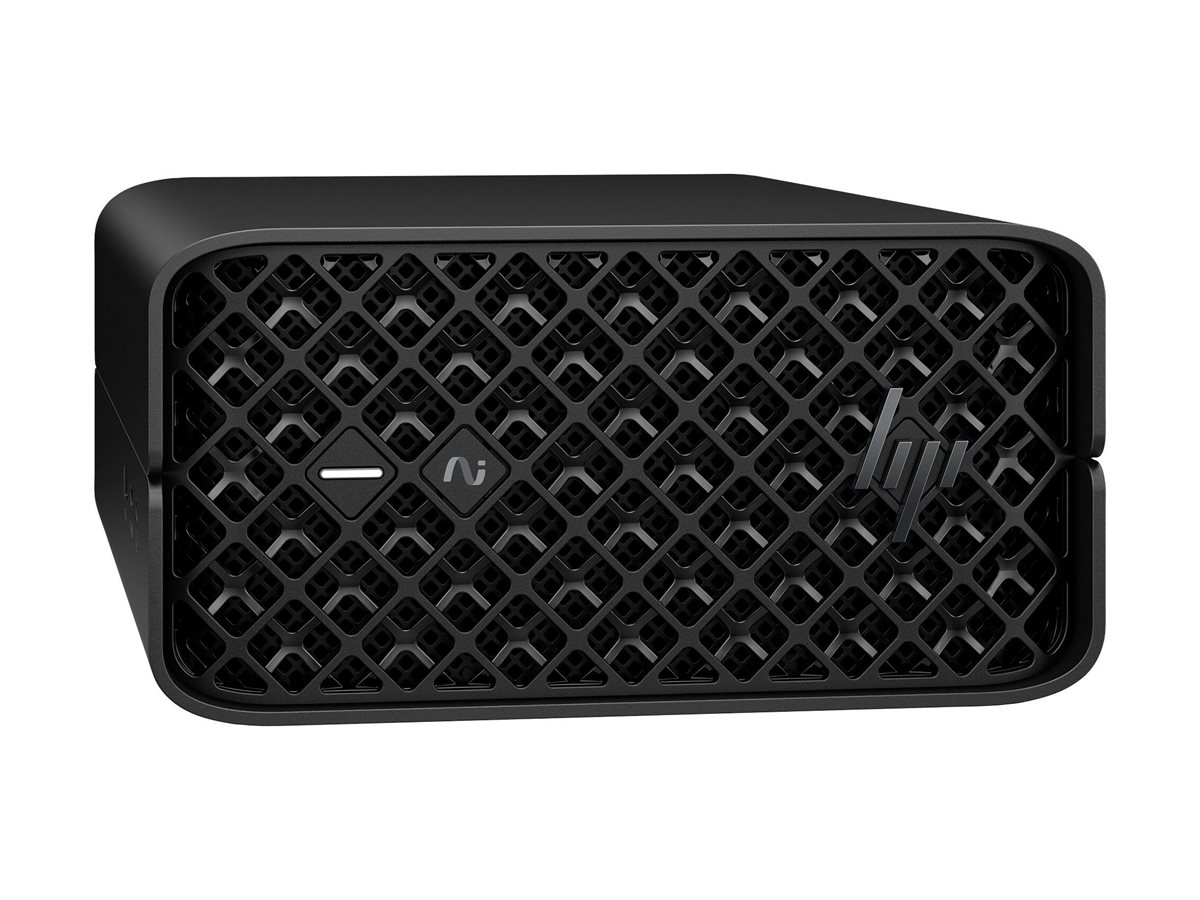

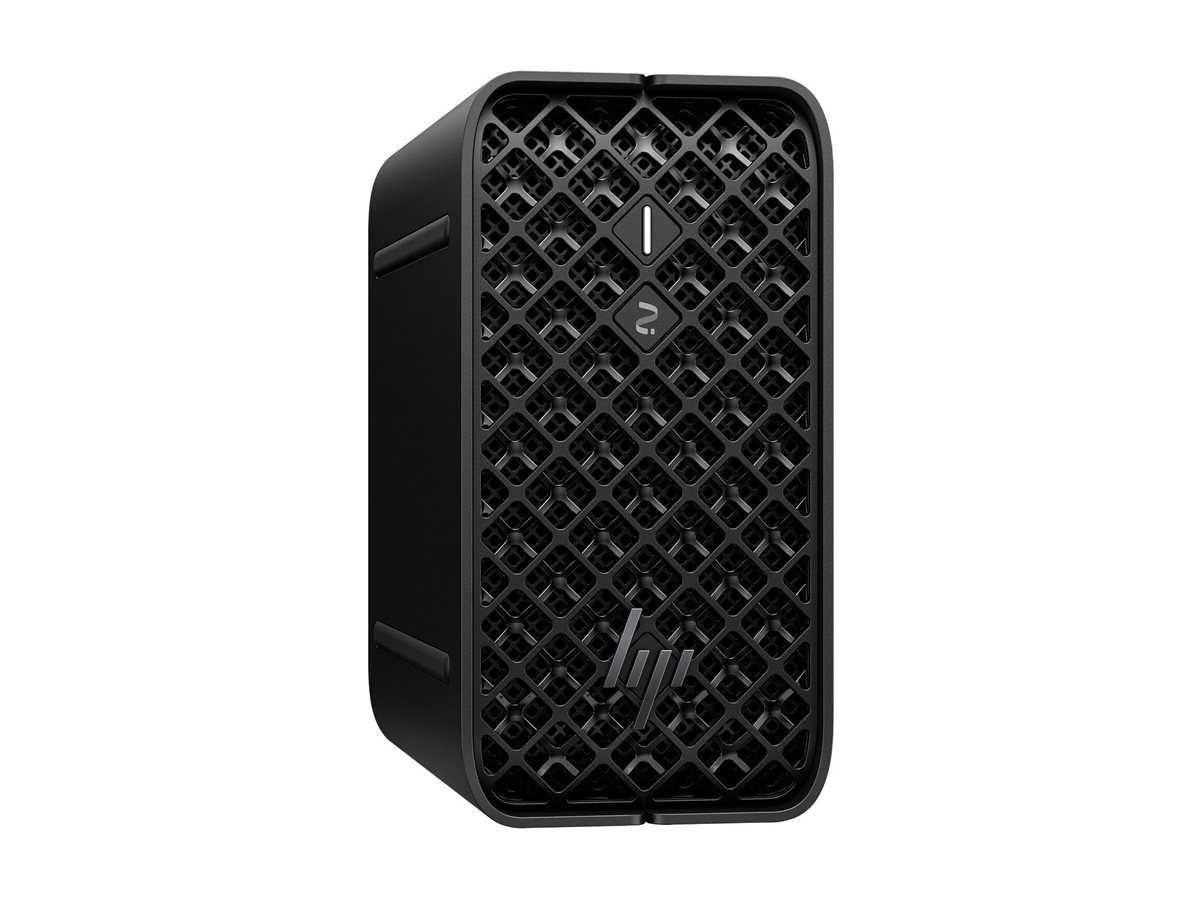

HP Workstation Z2 G1a

Login for Price
HP Workstation Z2 G1a
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Mini 4U
  • 1 x Ryzen AI Max+ Pro 395 / up to 5.1 GHz
  • RAM 64 GB
  • SSD 1 TB
  • Radeon 8060S
HP Workstation Z2 G1a
  • Mini 4U
  • 1 x Ryzen AI Max+ Pro 395 / up to 5.1 GHz
  • RAM 64 GB
  • SSD 1 TB
  • Radeon 8060S
  • IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet, 2.5 Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • jet black
  • with HP Wolf Pro Security Edition (1 year)
  Additional Details
Mfr Part #: BN4G0UT#ABA
SHI Part #: 50233296
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G1a - Mini 4U - 1 x Ryzen AI Max+ Pro 395 / up to 5.1 GHz - RAM 64 GB - SSD 1 TB - Radeon 8060S - IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet, 2.5 Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - jet black - with HP Wolf Pro Security Edition (1 year)
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth20 cm
Dimensions & Weight / Height8.55 cm
Dimensions & Weight / Weight
  • 2.3 kg
  • 2.4 kg
Dimensions & Weight / Width16.8 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0
Hard Drive / Interface TypePCI Express 4.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Processor SocketBGA2077 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax/be
  • Bluetooth 5.4
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed3 GHz
Processor / ManufacturerAMD
Processor / Number of Cores16-core
Processor / Processor Number
  • 395
  • R2314
Processor / TypeRyzen AI Max+ Pro
RAM / Memory Speed4000 MHz
RAM / TechnologyLPDDR5X SDRAM
System / Hard Drive Capacity1 TB
System / Type
  • Thin client
  • Workstation
Video Output / Graphics ProcessorAMD Radeon 8060S
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor64 MB
Installed SizeL3 cache - 64 MB
Dimensions & Weight
Depth20 cm
Height8.55 cm
Weight2.3 kg
Width16.8 cm
Dimensions & Weight (Shipping)
Shipping Depth49.9 cm
Shipping Height29.8 cm
Shipping Weight4.1 kg
Shipping Width18.5 cm
Environmental Parameters
Humidity Range Operating8 - 85% RH (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity

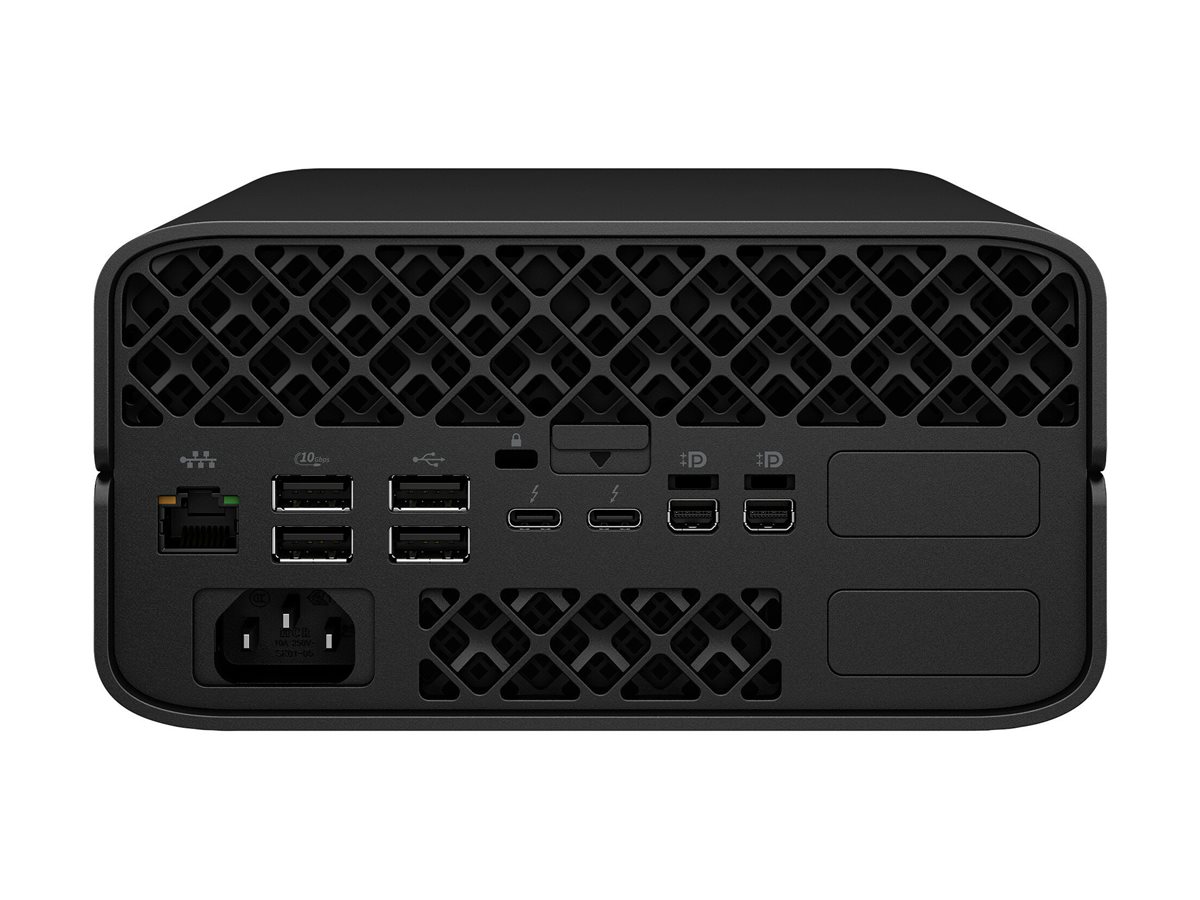

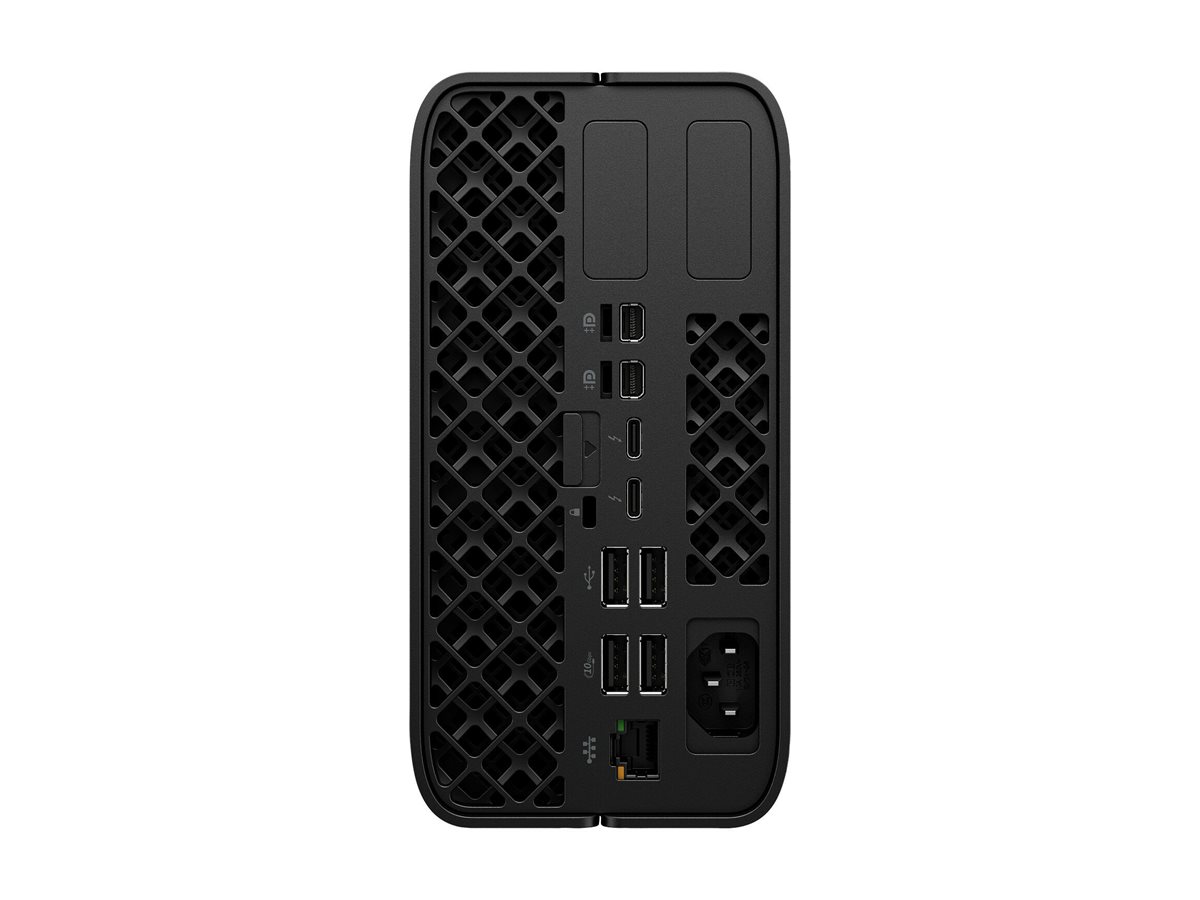

Interfaces
  • 1 x headphones/microphone (1 side)
  • 3 x USB 3.2 Gen 2 (1 side, 2 rear) (one of them is charging)
  • 1 x USB-C 3.2 Gen 2/DisplayPort 2.1 (1 side) (Power Delivery)
  • 2 x Mini DisplayPort 2.1 (2 rear)
  • 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear)
  • 2 x USB 2.0 - Type A (2 rear)
  • 2 x Thunderbolt 4/USB4/DisplayPort 2.1 (2 rear) (Power Delivery)
Slots
  • 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
  • 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
General
Built-in DevicesSpeaker
Bundled withHP Wolf Pro Security Edition (1 year)
ColorJet black
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorMini - 4U
SensorsHP Tamper Lock
TypeWorkstation
Graphics Controller
Graphics ProcessorAMD Radeon 8060S Unified Memory Architecture (UMA)
Video InterfacesDisplayPort, USB-C
Hard Drive
Capacity1 x 1 TB
Interface TypePCI Express 4.0
TypeSSD - M.2
Input Device
TypeKeyboard, mouse
Keyboard
InterfaceUSB
Keyboard NameHP 320K
Localization & LayoutUS
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, WEEE, CECP, low halogen
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameHP 320M
Networking
Compliant StandardsIEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet ControllerRealtek RTL8125BP-CG
FeaturesWake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 19
Interface (Bus) TypeM.2 2230
Wireless LAN SupportedYes
Wireless NICMediaTek MT7925
Neural Processor Unit (NPU)
Neural Processor Unit (NPU)AMD Ryzen AI
NPU Performance Up To (TOPS)50 TOPS
Total Processor Performance Up To (TOPS)126 TOPS
Operating System / Software
Copilot+ PCYes
OS ProvidedWindows 11 Pro English
SoftwareHP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Efficiency92%
Power Factor CorrectionYes (active)
Power Provided300 Watt
Processor / Chipset
Clock Speed3 GHz
CPUAMD Ryzen AI Max+ Pro 395
CPU Qty1
CPU SocketBGA2077 Socket
CPU UpgradabilityUpgradable
L2 cache16 MB
Max CPU Qty1
Max Turbo Speed5.1 GHz
Number of Cores16-core
RAM
Configuration FeaturesProvided memory is soldered
Effective Memory Speed4000 MHz
Installed Size64 GB (installed) / 128 GB (max)
Rated Memory Speed4267 MHz
TechnologyLPDDR5X SDRAM
Storage Controller
Controller Interface TypeNVM Express
RAID LevelRAID 0, RAID 1
Type1 x RAID
