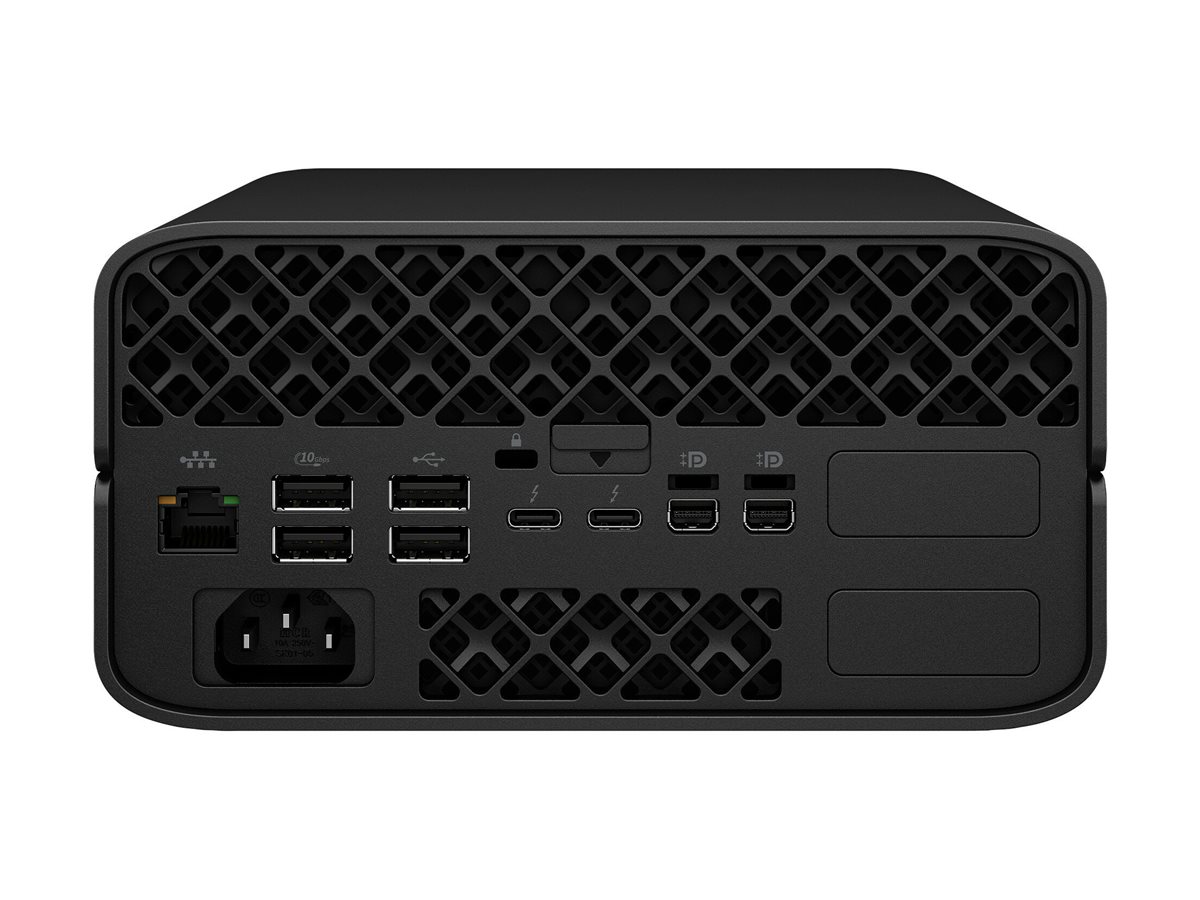

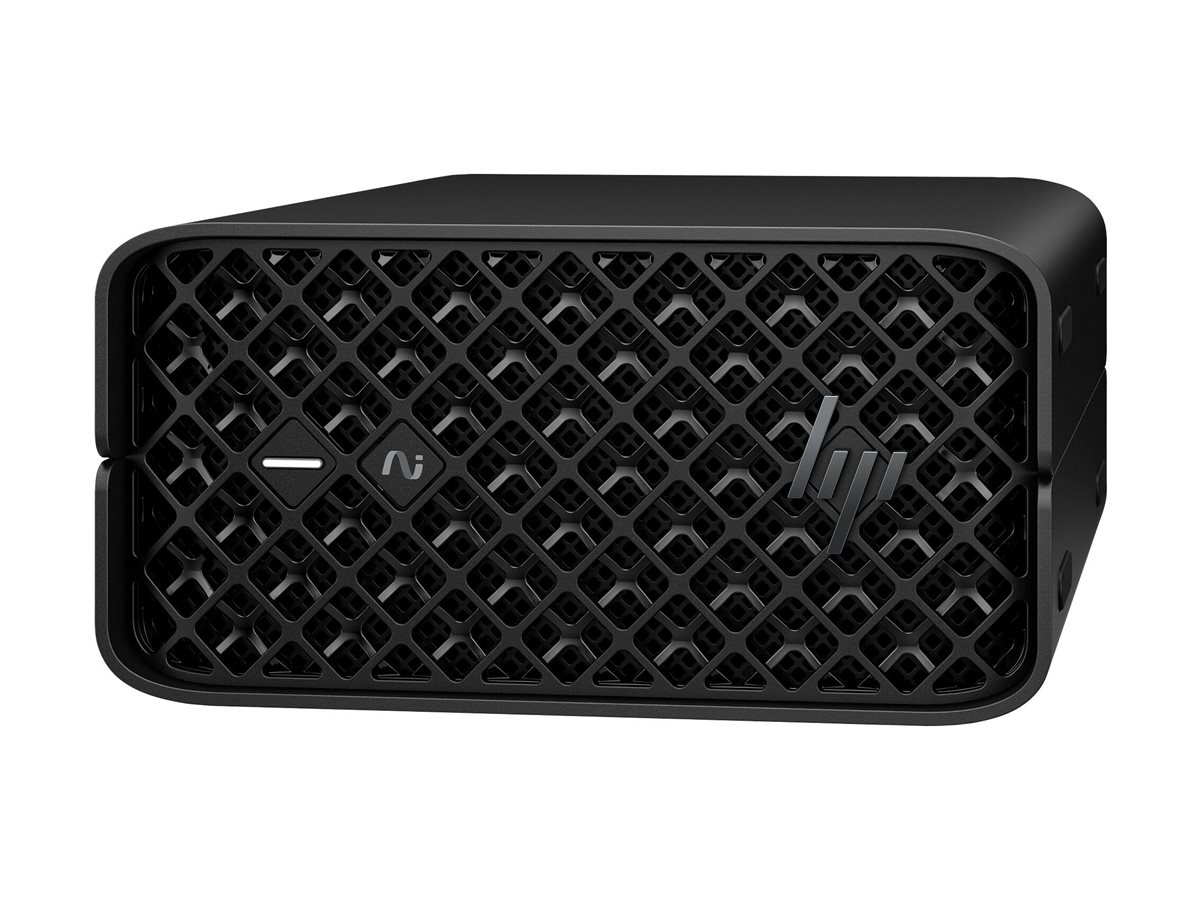

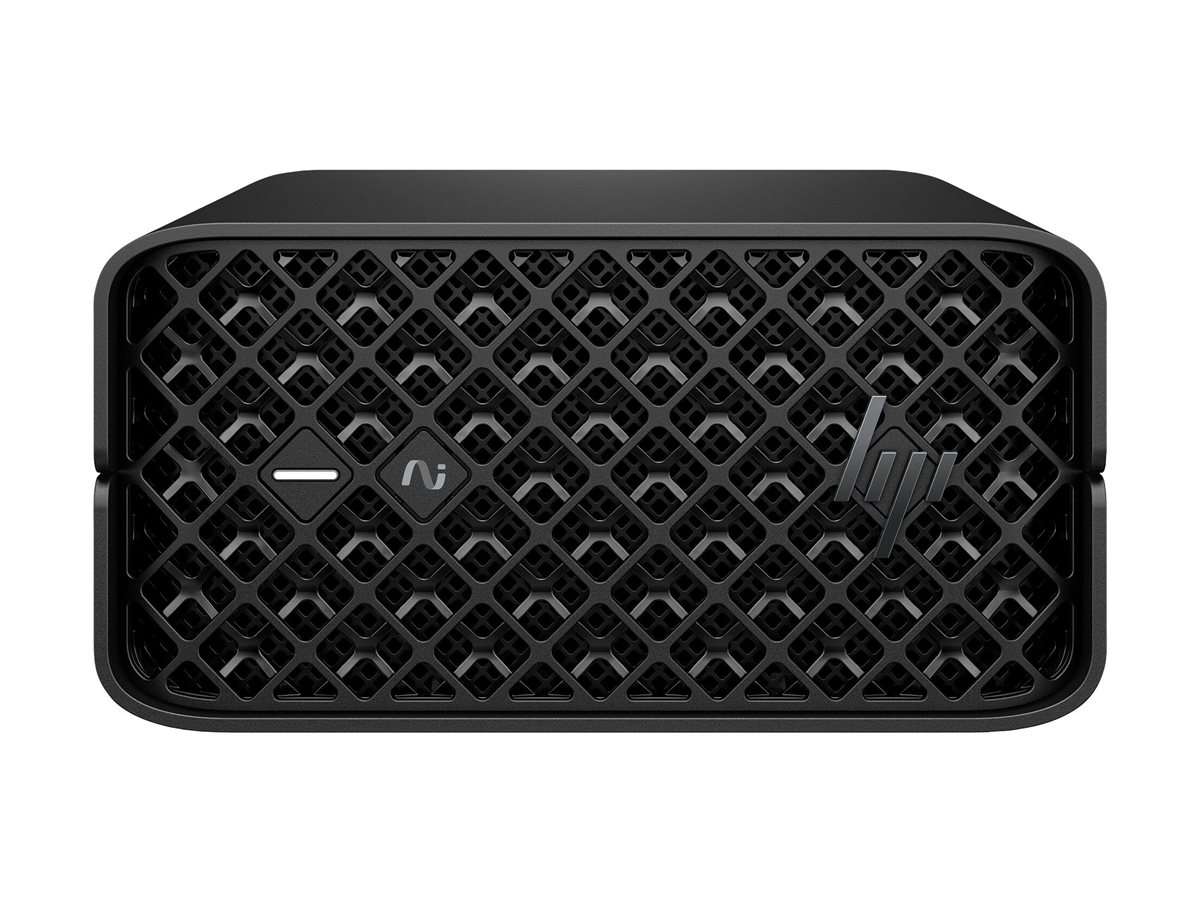

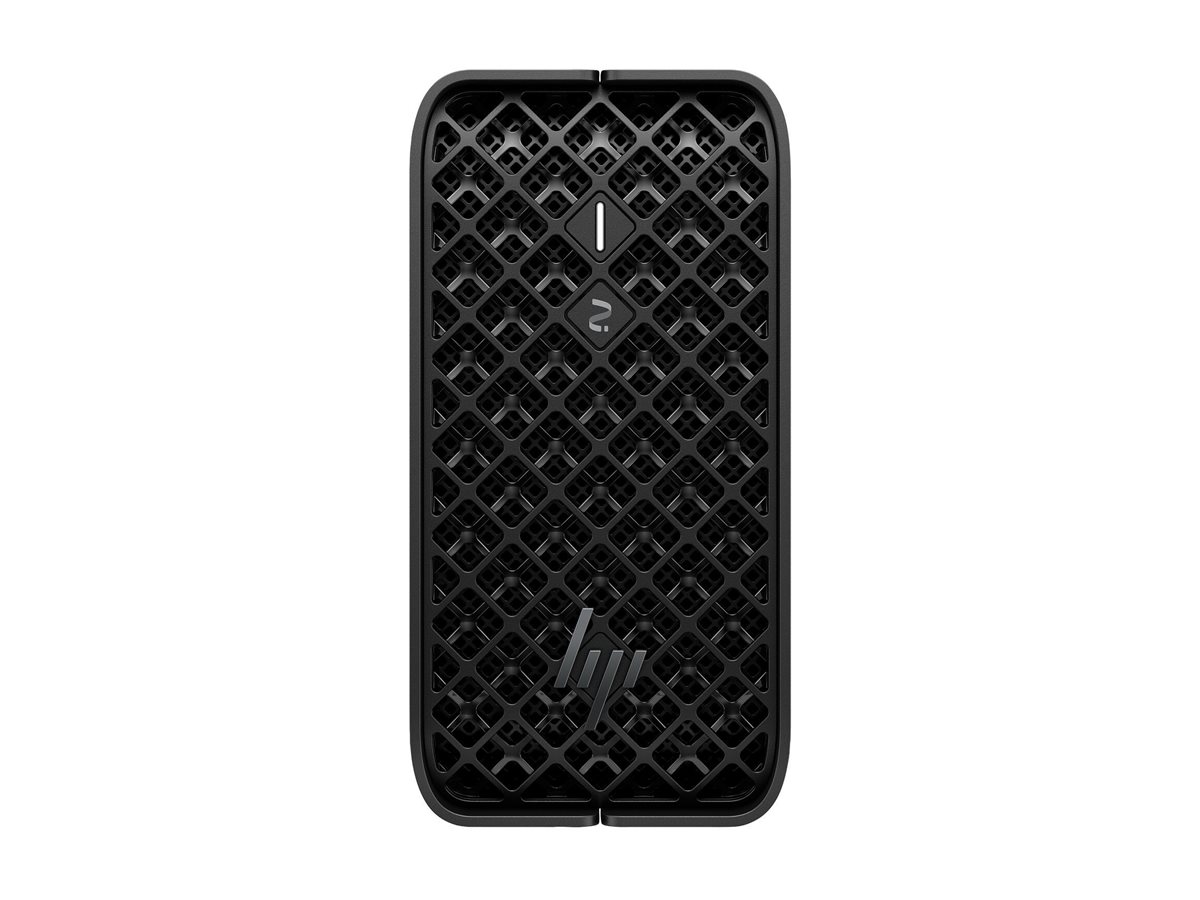

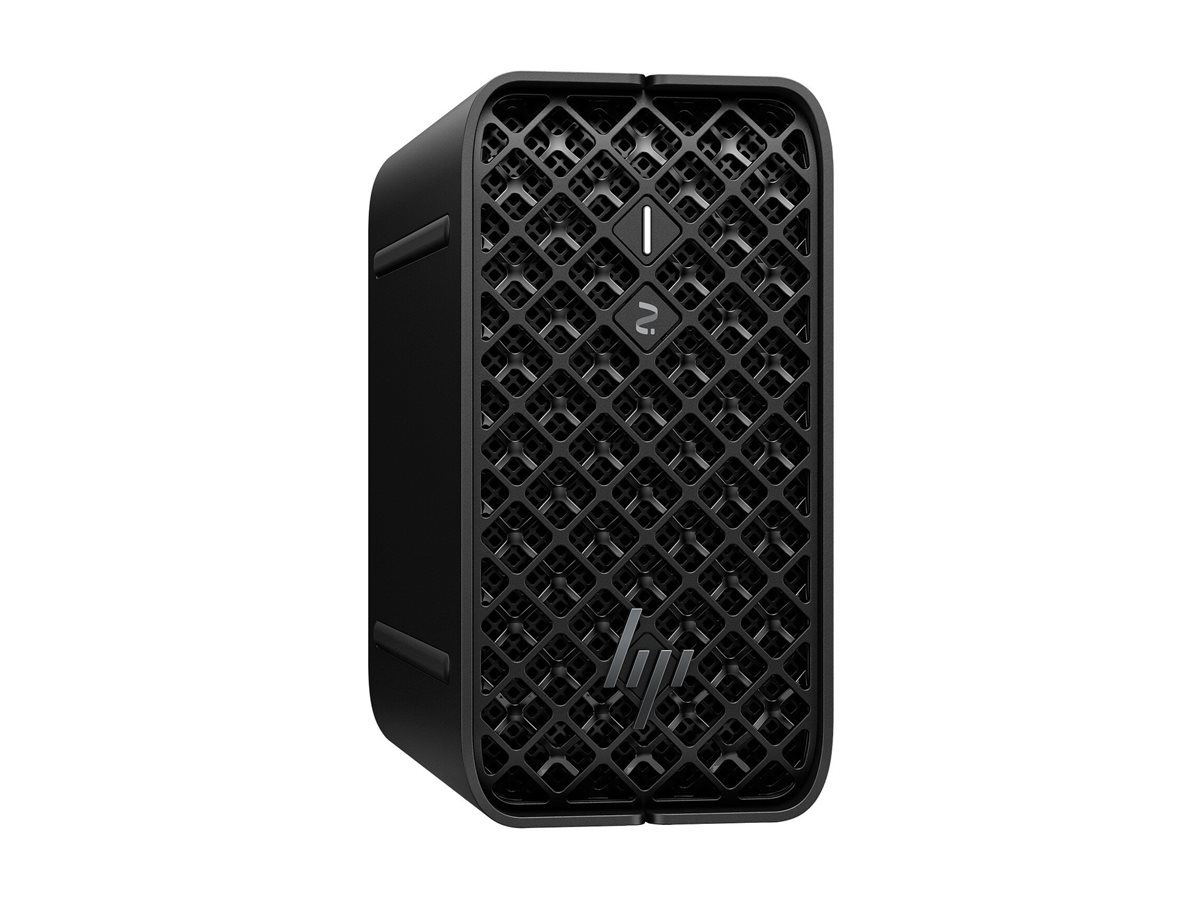

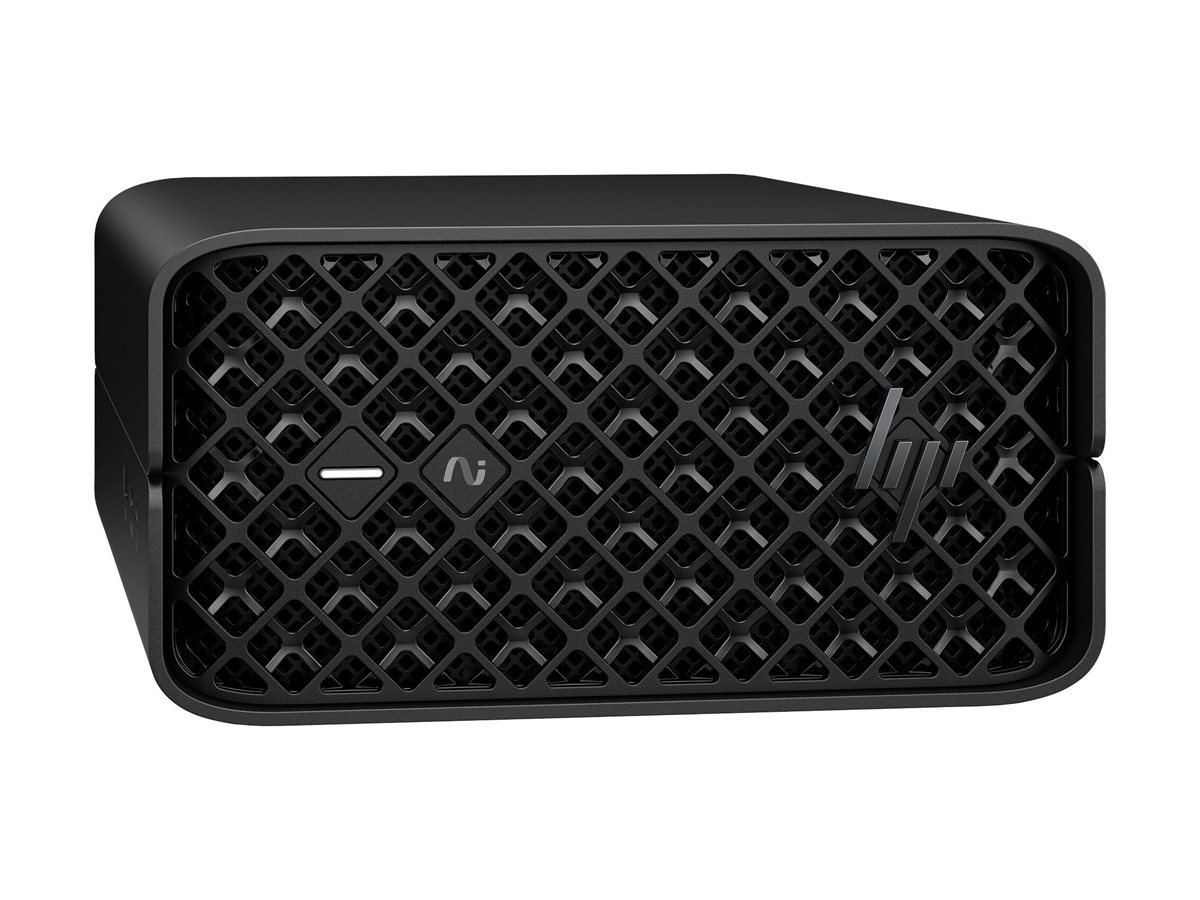

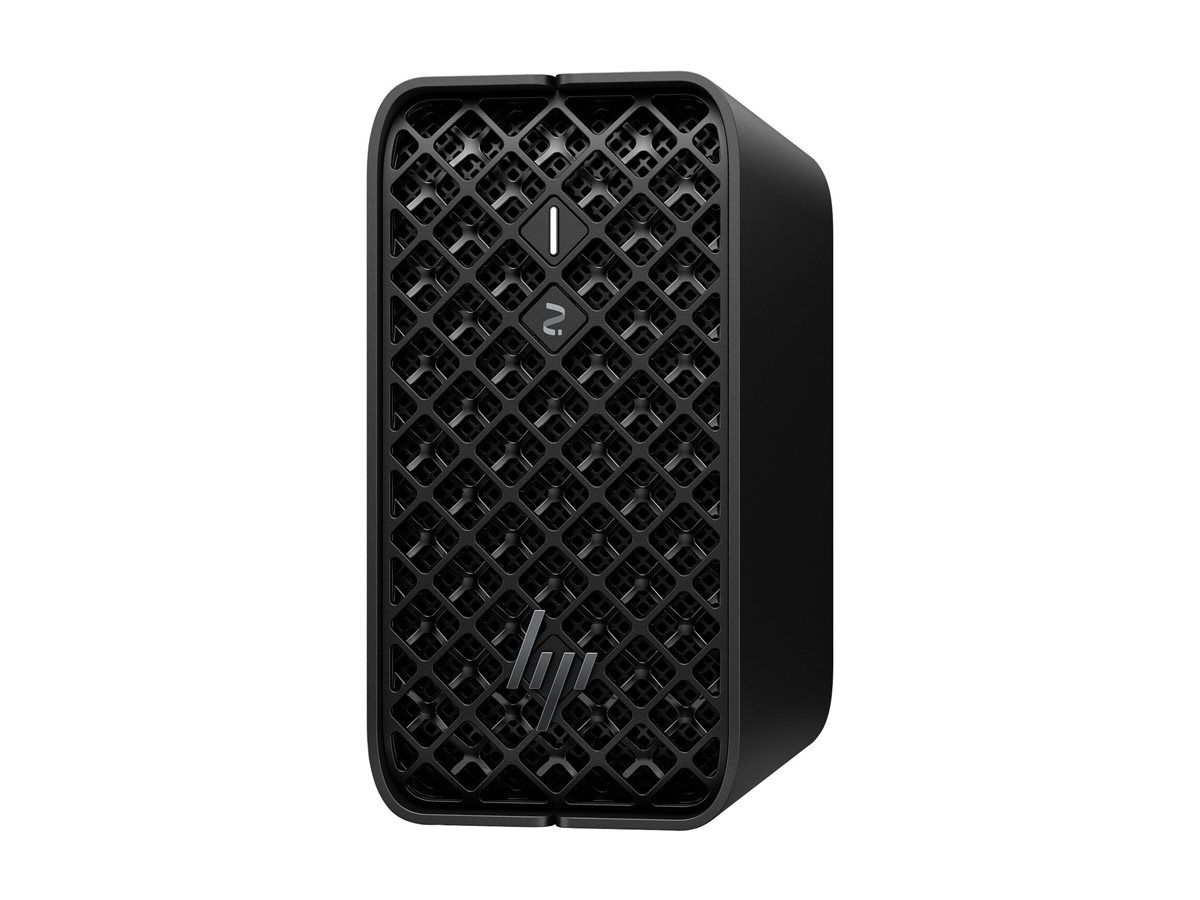

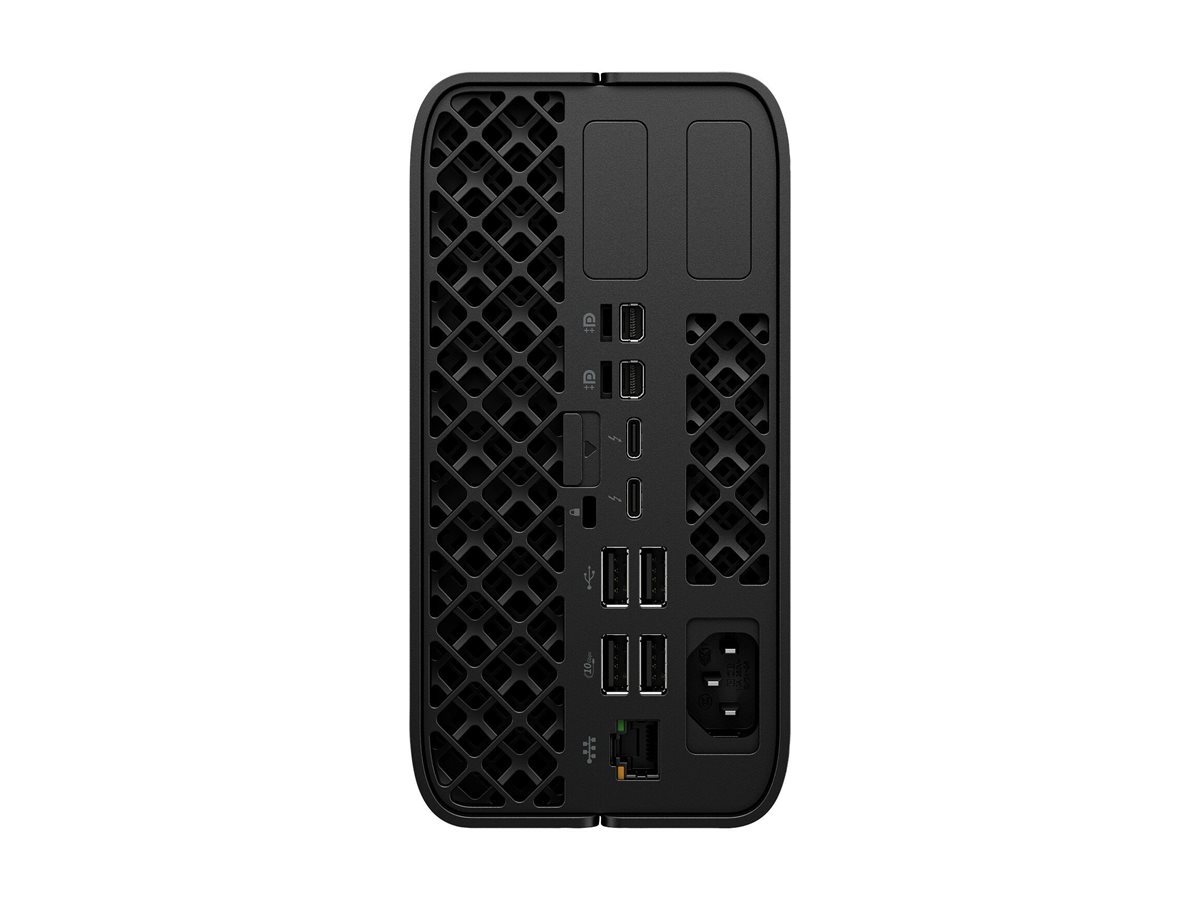

HP Workstation Z2 G1a

Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
Quick Details
|
---|
|
HP Workstation Z2 G1a
- Mini 4U
- 1 x Ryzen AI Max Pro 385 / up to 5 GHz
- RAM 32 GB
- SSD 1 TB
- Radeon 8050S
- Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4
- Win 11 Pro
- monitor: none
- keyboard: US
- jet black
- Smart Buy
- with HP Wolf Pro Security Edition (1 year)
Additional Details | |
---|---|
Mfr Part #: | BN4F7UT#ABA |
SHI Part #: | 50233290 |
Category: | Desktop computers |
UNSPSC: | 43211507 |
Manufacturer: | HP, Inc. |
Product Type: | Hardware |
General Information | |
---|---|
Category | Desktop computers |
Description | HP Workstation Z2 G1a - Mini 4U - 1 x Ryzen AI Max Pro 385 / up to 5 GHz - RAM 32 GB - SSD 1 TB - Radeon 8050S - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 - Win 11 Pro - monitor: none - keyboard: US - jet black - Smart Buy - with HP Wolf Pro Security Edition (1 year) |
Manufacturer | HP, Inc. |
UNSPSC | 43211507 |
Main Specifications | |
Chassis / Form Factor | Ultra small form factor |
Dimensions & Weight / Depth | 20 cm |
Dimensions & Weight / Height | 8.55 cm |
Dimensions & Weight / Weight | 2.3 kg |
Dimensions & Weight / Width | 16.8 cm |
Display / Type | None. |
Hard Drive / Capacity | 1 TB |
Hard Drive / Interface | PCI Express 4.0 |
Hard Drive / Interface Type | PCI Express 4.0 |
Header / Brand | HP |
Header / Country Kits | United States |
Header / Localization | English |
Mainboard / Chipset Type | AMD PRO 665 |
Mainboard / Processor Socket | BGA2077 Socket |
Miscellaneous / Product Color | Black |
Networking / Data Link Protocol |
|
Networking / Wireless LAN Supported | Yes |
Networking / Wireless Protocol |
|
Optical Storage / Drive Type | No optical drive |
Optical Storage / Type | None |
OS Provided / Type | Windows 11 Pro |
Packaged Quantity | 1 |
Processor / Clock Speed | 3.6 GHz |
Processor / Manufacturer | AMD |
Processor / Number of Cores | 8-core |
Processor / Processor Number |
|
Processor / Type | Ryzen AI Max Pro |
RAM / Memory Speed | 4000 MHz |
RAM / Technology | LPDDR5X SDRAM |
System / Hard Drive Capacity | 1 TB |
System / Type |
|
Video Output / Graphics Processor | AMD Radeon 8050S |
Audio Output | |
Compliant Standards | High Definition Audio |
Cache Memory | |
Cache Per Processor | 32 MB |
Installed Size | L3 cache - 32 MB |
Dimensions & Weight | |
Depth | 20 cm |
Height | 8.55 cm |
Weight | 2.3 kg |
Width | 16.8 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 49.9 cm |
Shipping Height | 29.8 cm |
Shipping Weight | 4.1 kg |
Shipping Width | 18.5 cm |
Environmental Parameters | |
Humidity Range Operating | 8 - 85% RH (non-condensing) |
Max Operating Temperature | 35 °C |
Min Operating Temperature | 5 °C |
Expansion / Connectivity | |
Interfaces |
|
Slots |
|
General | |
Built-in Devices | Speaker |
Bundled with | HP Wolf Pro Security Edition (1 year) |
Color | Jet black |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Localization | Language: English / region: United States |
Product Form Factor | Mini - 4U |
Sensors | HP Tamper Lock |
Type | Workstation |
Graphics Controller | |
Graphics Processor | AMD Radeon 8050S Unified Memory Architecture (UMA) |
Video Interfaces | DisplayPort, USB-C |
Hard Drive | |
Capacity | 1 x 1 TB |
Interface Type | PCI Express 4.0 |
Type | SSD - M.2 |
Input Device | |
Type | Keyboard, mouse |
Keyboard | |
Keyboard Name | HP 320K |
Localization & Layout | US |
Miscellaneous | |
Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen, CEC |
Manufacturer Selling Program | HP Smart Buy |
Security Slot Type | Kensington security slot |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Monitor | |
Monitor Type | None. |
Mouse | |
Mouse Name | HP 320M |
Networking | |
Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az, IEEE 802.1Qav |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 |
Ethernet Controller | Realtek RTL8125BP-CG |
Features | ACPI support, auto-uplink (auto MDI/MDI-X), dual stream (2x2), Intel Active Management Technology (AMT) 19, PXE 2.1 support, Wake on LAN (WoL) |
Interface (Bus) Type | M.2 2230 |
Wireless LAN Supported | Yes |
Wireless NIC | MediaTek MT7925 |
Neural Processor Unit (NPU) | |
Neural Processor Unit (NPU) | AMD Ryzen AI |
NPU Performance Up To (TOPS) | 50 TOPS |
Total Processor Performance Up To (TOPS) | 106 TOPS |
Operating System / Software | |
Copilot+ PC | Yes |
OS Provided | Windows 11 Pro English |
Software | HP UEFI BIOS Certification level 2.7B, HP PC Hardware Diagnostics Windows, HP Image Assistant, HP Manageability Integration Kit, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Recover Gen4, HP Sure Start Gen7, HP Client Security Manager Gen6, HP Sure Admin, HP BIOSphere Gen6, HP Sure Click, Microsoft Pluton Security, HP Sure Run Gen5, HP Secure Erase |
Optical Storage | |
Type | No optical drive |
Power | |
Device Type | Power supply |
Efficiency | 92% |
Power Factor Correction | Yes (active) |
Power Provided | 300 Watt |
Processor / Chipset | |
Clock Speed | 3.6 GHz |
CPU | AMD Ryzen AI Max Pro 385 |
CPU Qty | 1 |
CPU Socket | BGA2077 Socket |
CPU Upgradability | Upgradable |
L2 cache | 8 MB |
Max CPU Qty | 1 |
Max Turbo Speed | 5 GHz |
Number of Cores | 8-core |
Processor Main Features | 65W TDP |
RAM | |
Configuration Features | Provided memory is soldered |
Effective Memory Speed | 4000 MHz |
Installed Size | 32 GB (installed) / 128 GB (max) |
Rated Memory Speed | 4267 MHz |
Technology | LPDDR5X SDRAM |
Storage Controller | |
Controller Interface Type | NVM Express |
RAID Level | RAID 0, RAID 1 |
Type | 1 |
Sustainability Information | |
ENERGY STAR Certified | Yes |
