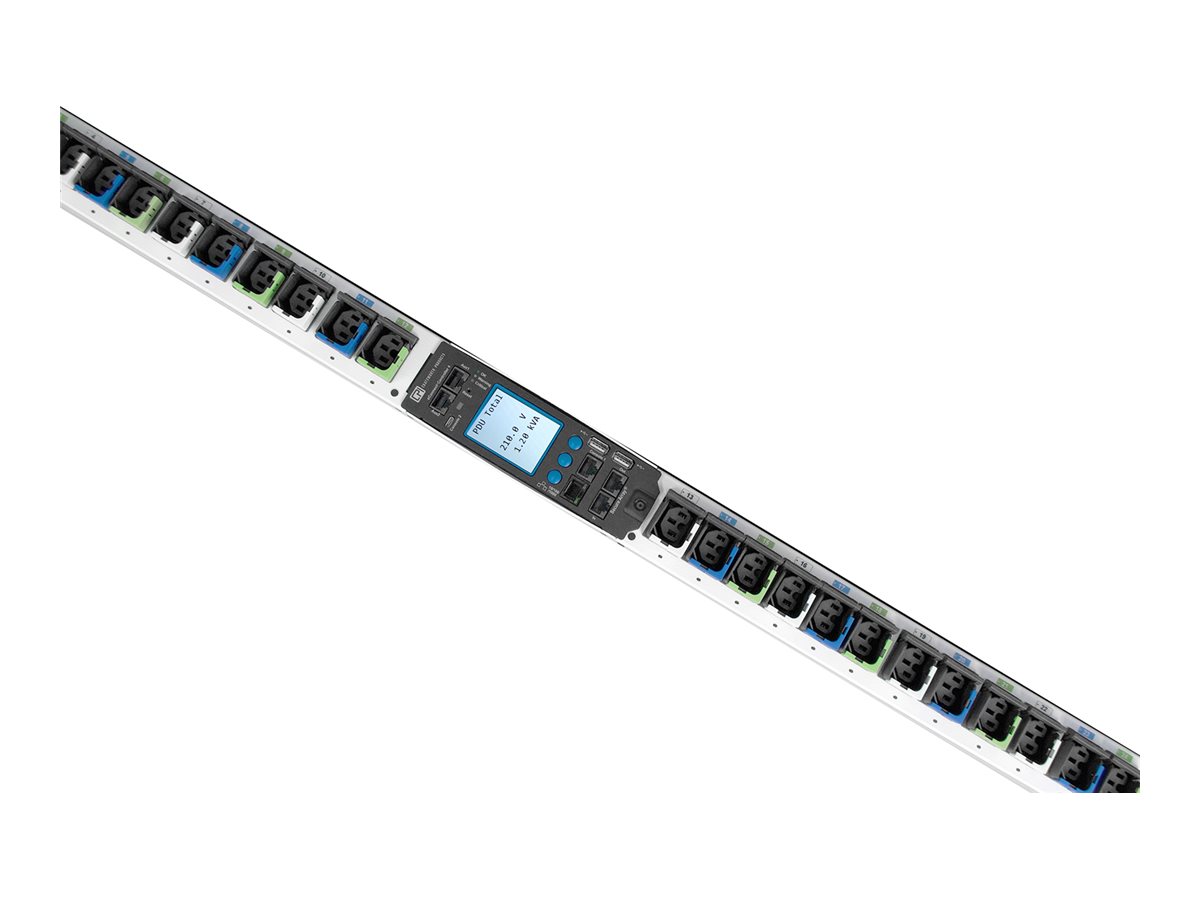

CPI Switched eConnect PDU EA-5137-E
MSRP$4,162.18
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched eConnect PDU EA-5137-E
- Power distribution unit (rack-mountable)
- AC 208 V
- 17.2 kW
- 3-phase
- Ethernet 10/100/1000, serial, USB
- input: IEC 60309 3P+E 60A
- output connectors: 36 (36 x IEC 60320 C13)
- 45U
- 3 m cord
- North America
- glacier white
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,162.18 |
| Mfr Part #: | EA-5137-E |
| SHI Part #: | 50064807 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched eConnect PDU EA-5137-E - Power distribution unit (rack-mountable) - AC 208 V - 17.2 kW - 3-phase - Ethernet 10/100/1000, serial, USB - input: IEC 60309 3P+E 60A - output connectors: 36 (36 x IEC 60320 C13) - 45U - 3 m cord - North America - glacier white - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $4,162.18 |
| UNSPSC | 24102001 |
| Main Specifications | |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 45U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | IEEE 802.1x, UL 62368, IEC 62368, cUL, FCC Part 15 A, EN55022, UL 489, RoHS, NEMKO |
| Features | Remote monitoring, vertical orientation, indoor use, low-profile design, tool-less mounting, password security, Zero Touch Provisioning (ZTP), LED indicator, color-coded labels, locking outlets, Hydraulic-Magnetic breakers, voltage meter, power measuring, current meter, energy meter, power factor meter, Branch Circuit Monitoring System (BCMS), field-replaceable protection module, replaceable controller, environmental sensor ready, individually switchable sockets, bistable latching relays, outlet grouping, SD-card transfers PDU identity, grounded, firmware upgradable, Secure Array technology, simplified load balancing, electronic lock integration, LCD display, power cable IP67 compliant, field-replaceable module |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, Web GUI, SNMP 1, SNMP 2, SNMP 3, CLI, RESTful API, SSH, RADIUS, LDAP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E 60A |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 60 A |
| Output Voltage | 50/60 Hz |
| Power Capacity | 17.2 kW |
| Power Output Connectors Details | 36 x power IEC 60320 C13 10 A |
