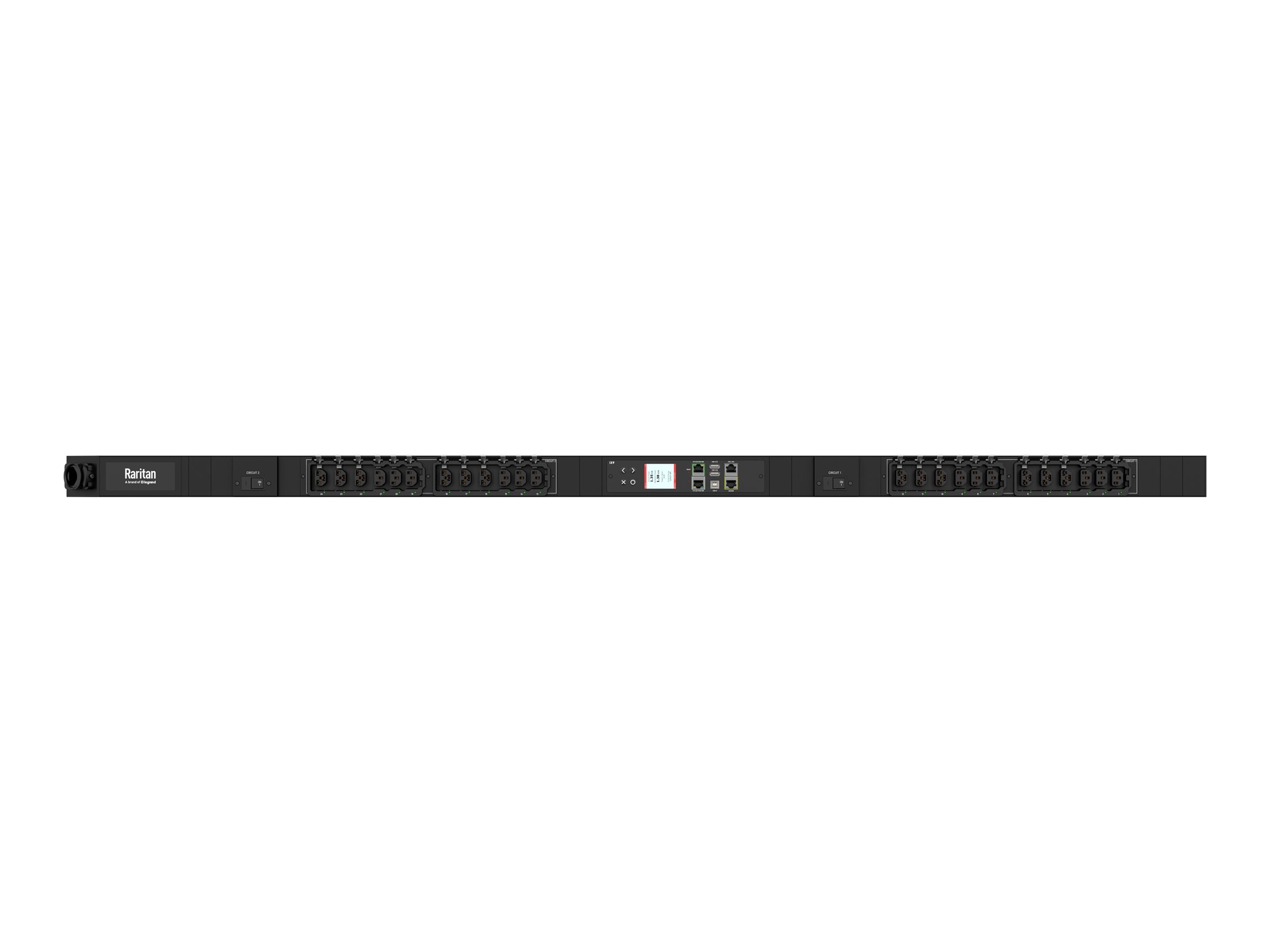

Raritan PX4-2884-E7 - Power distribution unit (rack-mountable)
MSRP$1,242.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX4-2884-E7 - Power distribution unit (rack-mountable)
- AC 208 V
- 5000 VA
- 1-phase
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L6-30P
- output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx)
- 2U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,242.00 |
| Mfr Part #: | PX4-2884-E7 |
| SHI Part #: | 50060663 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-2884-E7 - Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx) - 2U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,242.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Powder-coated, extruded aluminum housing, active power meter, real power meter, energy meter, power factor meter, voltage meter, current meter, metering per input line, metering per branch circuit breaker, remote outlet switching, LED indicators, LCD display, locking outlets, Raritan SecureLock Ready, cascadable, environmental sensor ready, 2 x J62-X0 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Power Output Connectors Details |
|
