Lantronix N-GXE-xx-02 Series
MSRP$330.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

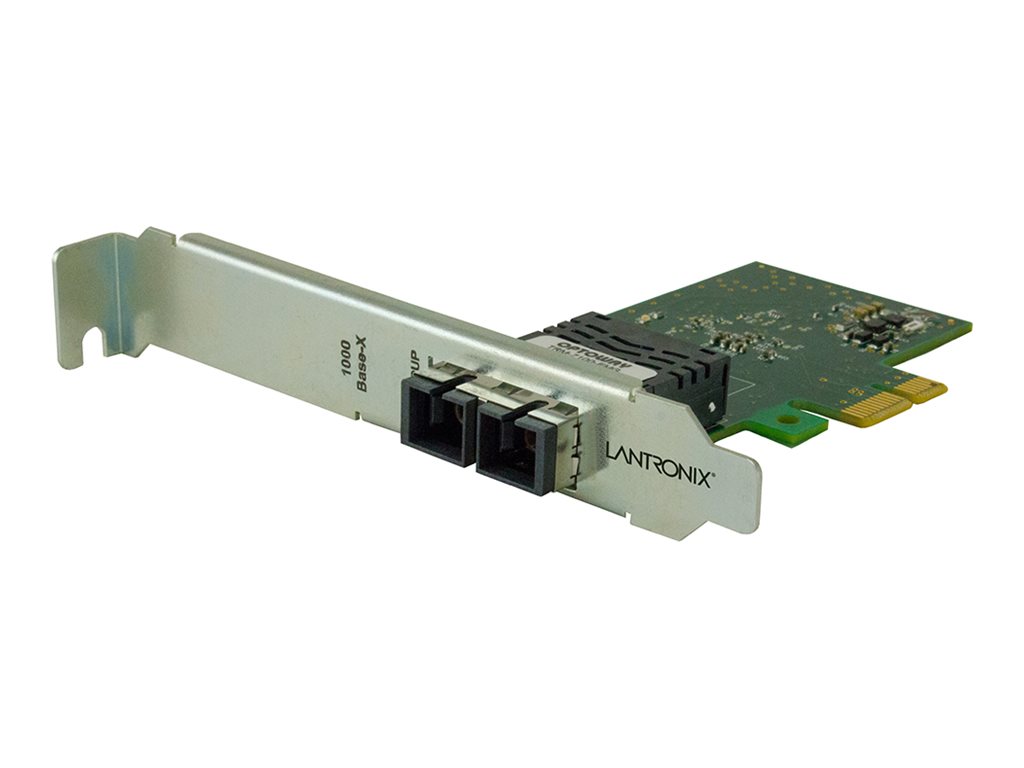

Lantronix N-GXE-xx-02 Series
- Network adapter
- PCIe 2.1 low profile
- 1000Base-SX x 2
- 850 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $330.00 |
| Mfr Part #: | N-GXE-SC-02 |
| SHI Part #: | 50060279 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Lantronix N-GXE-xx-02 Series - Network adapter - PCIe 2.1 low profile - 1000Base-SX x 2 - 850 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $330.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.41 cm |
| Dimensions & Weight / Height | 55.2 cm |
| Dimensions & Weight / Weight | 250 g |
| Header / Brand | Lantronix |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 10.41 cm |
| Height | 55.2 cm |
| Weight | 250 g |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-SX - SC multi-mode |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, RoHS, EN55022 Class B, EN55024 |
| Included Accessories | Low-profile bracket |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | Ethernet 1000Base-SX |
| Compliant Standards | IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Features | Full duplex capability, flow control, VLAN support, LACP, SLB, WOL, APM support, ACPI 2.0 support, Jumbo Frames support (up to 9014 bytes), MSI-X, MSI, UEFI PXE Boot, multimode, 8 dB link budget, 50/125µm core size, 62.5/125µm core size |
| Max Range Open Space | 550 m |
| Network / Transport Protocol | IPv6, IPv4 |
| Optical Wave Length | 850 nm |
| Performance | Bandwidth (full duplex): 2 Gbps |
| Ports | 1000Base-SX x 2 |
| Status Indicators | Link/activity, port duplex mode, speed |
| Power | |
| Power Consumption Operational | 2 Watt |
| Voltage Required | DC 3.3 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, FreeBSD, Linux, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 8.1 / 10, Windows Pro |
