Raritan PX4-2407CR-A0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

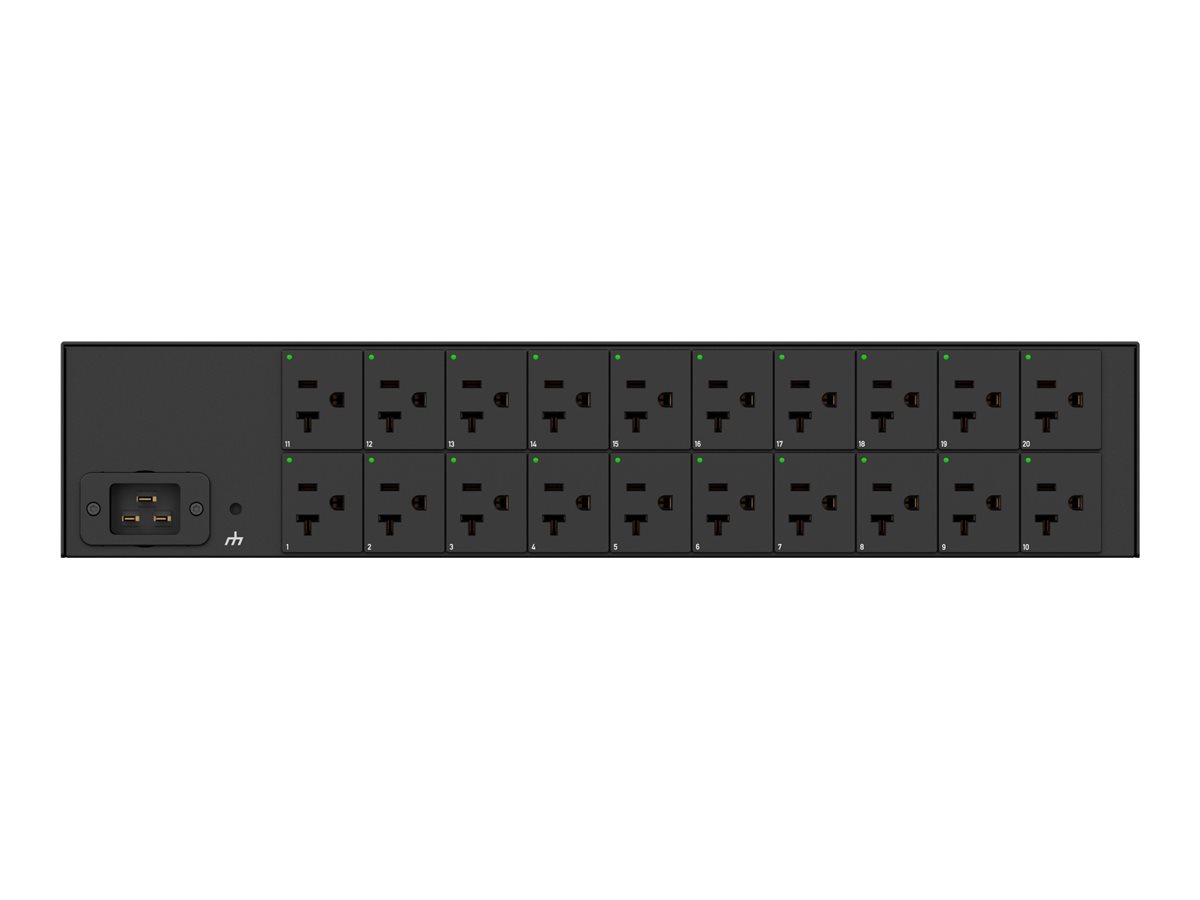

Raritan PX4-2407CR-A0
- Power distribution unit (rack-mountable)
- AC 120 V
- 1900 VA
- 1-phase
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60320 C20
- output connectors: 20 (NEMA 5-20R)
- 2U
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-2407CR-A0 |
| SHI Part #: | 50043051 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-2407CR-A0 - Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 20 (NEMA 5-20R) - 2U - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,539.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.3 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 3.63 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Power Capacity (VA) | 1900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 29.3 cm |
| Height | 8.8 cm |
| Weight | 3.63 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 45.4 cm |
| Shipping Height | 26.4 cm |
| Shipping Weight | 7.71 kg |
| Shipping Width | 55.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Powder-coated, extruded aluminum housing, voltage meter, current meter, crest factor meter, power factor meter, LCD display, metering per input line, environmental sensor ready, cascadable, LED indicators |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Power Output Connectors Details | 20 x power NEMA 5-20R |
