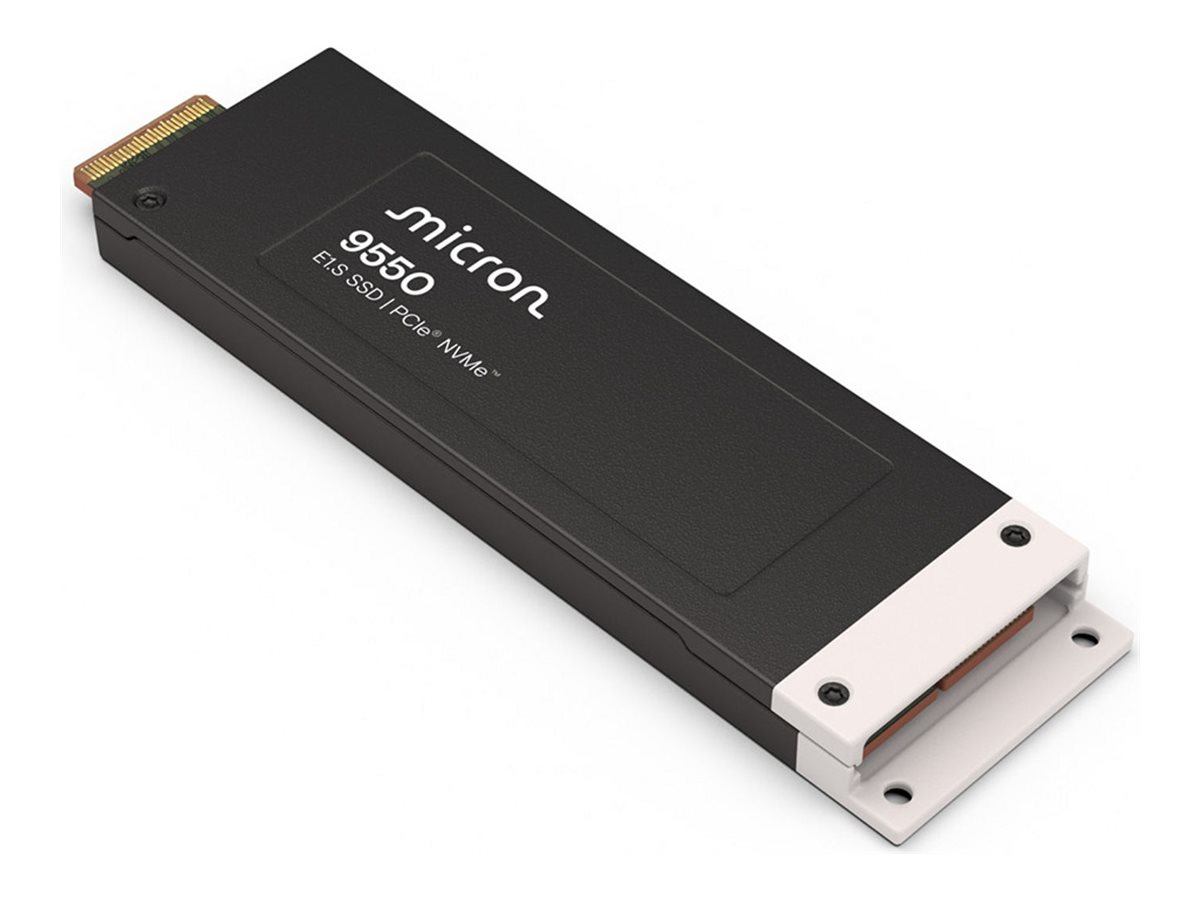

Micron 9550 PRO - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Micron 9550 PRO - SSD
- Enterprise
- encrypted
- 7.68 TB
- internal
- E1.S
- PCI Express 5.0 x4 (NVMe)
- 256-bit AES, FIPS 140-3 Level 2
- TCG Opal Encryption 2.02, Self-Encrypting Drive (SED)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MTFDLCE7T6THA-1BK1DABYYR |
| SHI Part #: | 50014291 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Micron Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 9550 PRO - SSD - Enterprise - encrypted - 7.68 TB - internal - E1.S - PCI Express 5.0 x4 (NVMe) - 256-bit AES, FIPS 140-3 Level 2 - TCG Opal Encryption 2.02, Self-Encrypting Drive (SED) |
| Manufacturer | Micron Technology |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 118.75 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Width | 33.75 mm |
| Hard Drive / Capacity | 7.68 TB |
| Hard Drive / Form Factor | E1.S |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | E1.S |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 7.68 TB |
| Depth | 118.75 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES, FIPS 140-3 Level 2 |
| Features | Open Compute Project 2.0, NVM Express (NVMe) 2.0b, static wear leveling, Dynamic Wear Leveling, End-to-end data path protection, Power Loss Protection (PLP), Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, Firmware Upgrade without Reset, S.M.A.R.T. |
| Form Factor | E1.S |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | PCI Express 5.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Width | 33.75 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, cUL, BSMI, RCM, KC, RRL, WEEE, TUV, VCCI, IC, Morocco, UkrSEPRO, UKCA |
| Performance | |
| 4KB Random Read | 3300000 IOPS |
| 4KB Random Write | 380000 IOPS |
| Drive Class | Enterprise |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 14000 MBps (read) / 10000 MBps (write) |
| SSD Endurance | 29.4 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
