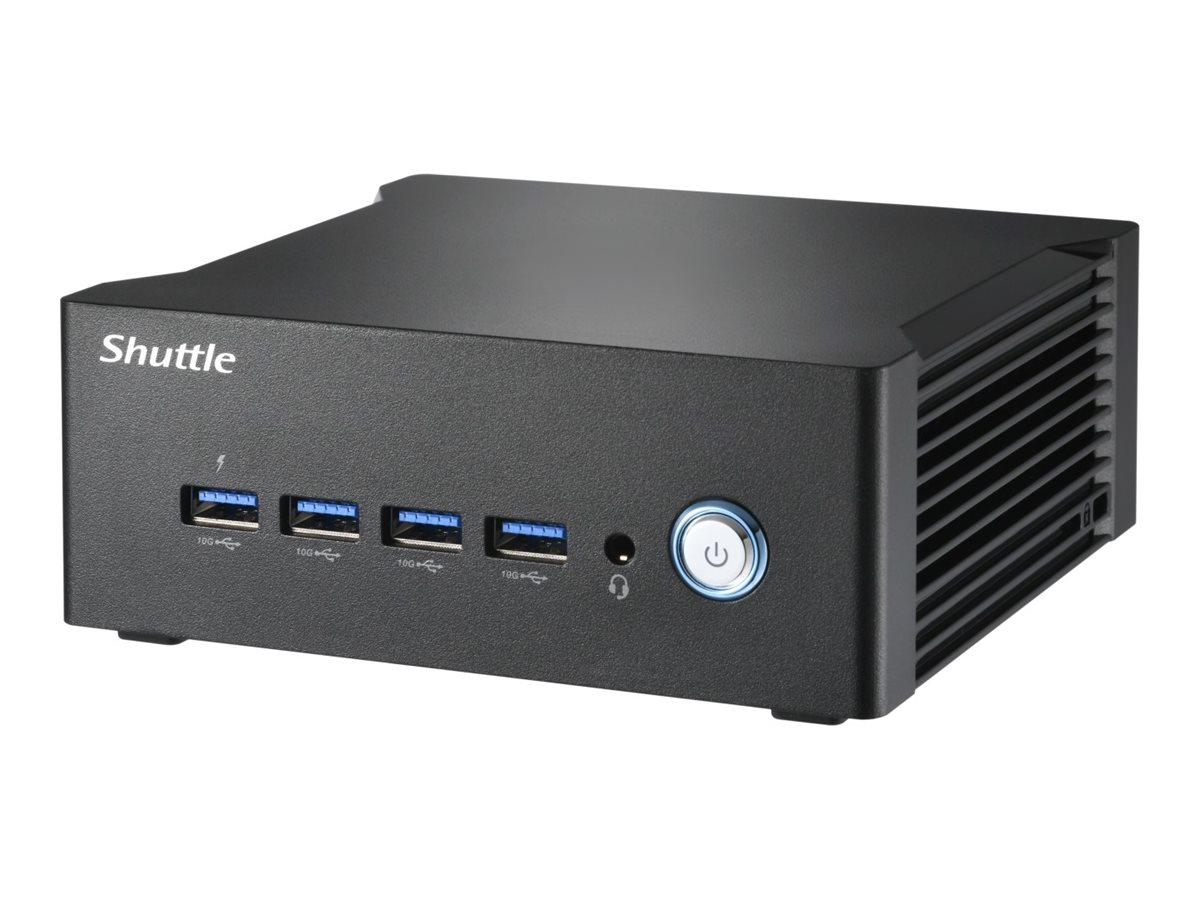

Shuttle XPC nano NT10H5
MSRP$1,059.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Shuttle XPC nano NT10H5
- Barebone
- mini PC 1 x Core Ultra 5 125H / up to 4.5 GHz
- RAM 0 GB
- Intel Arc Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,059.99 |
| Mfr Part #: | NT10H5 |
| SHI Part #: | 50013747 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Shuttle Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Shuttle XPC nano NT10H5 - Barebone - mini PC 1 x Core Ultra 5 125H / up to 4.5 GHz - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - black |
| Manufacturer | Shuttle Computer |
| MSRP | $1,059.99 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 14.3 cm |
| Dimensions & Weight / Height | 5.78 cm |
| Dimensions & Weight / Weight | 800 g |
| Dimensions & Weight / Width | 13.2 cm |
| Display / Type | None. |
| Header / Brand | Shuttle |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.2 GHz |
| Processor / Generation | Series 1 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 14-core |
| Processor / Processor Number | 125H |
| Processor / Type | Core Ultra 5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Memory Speed | 2800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel Arc Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 18 MB |
| Installed Size | 18 MB |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 14.3 cm |
| Height | 5.78 cm |
| Weight | 800 g |
| Width | 13.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.7 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel Arc Graphics |
| Max Monitors Supported | 4 |
| Video Interfaces | HDMI, USB-C |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | UL, BSMI, CB, FCC, RoHS, cTUVus, ERP, EMI, IEC 62368 |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm, VESA |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Neural Processor Unit (NPU) | |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 11.5 TOPS |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 watt |
| Voltage Required | (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 1.2 GHz (P-core) / 700 MHz (E-core) |
| CPU | Intel Core Ultra 5 (Series 1) 125H |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.5 GHz (P-core) / 3.6 GHz (E-core) |
| Number of Cores | 14-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Effective Memory Speed | 2800 MHz |
| Features | Unbuffered, registered, dual channel memory architecture |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Rated Memory Speed | 2800 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
