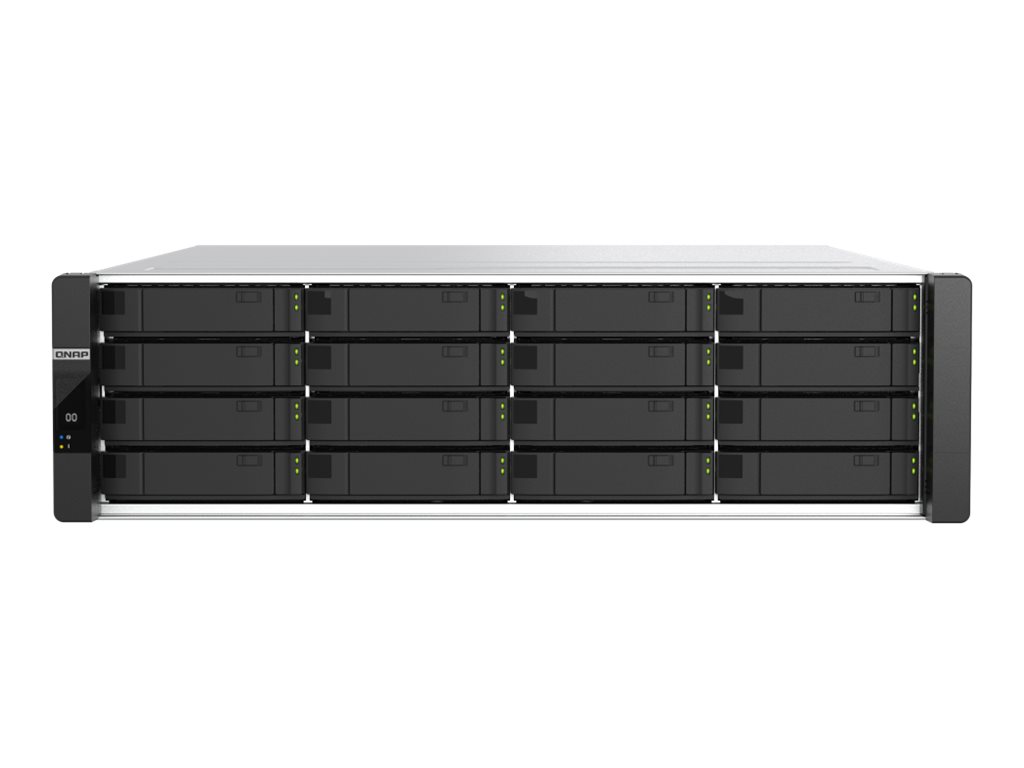

QNAP ES1686dc R2 - NAS server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
QNAP ES1686dc R2 - NAS server
- 16 bays
- rack-mountable
- SAS 12Gb/s
- RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP
- RAM 96 GB
- Gigabit Ethernet / 10 Gigabit Ethernet
- iSCSI support
- 3U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ES1686DC-R2-2142IT-96G-US |
| SHI Part #: | 49990639 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | QNAP |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | QNAP ES1686dc R2 - NAS server - 16 bays - rack-mountable - SAS 12Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 96 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 3U |
| Manufacturer | QNAP |
| MSRP | $15,999.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 58.775 cm |
| Dimensions & Weight / Height | 13.2 cm |
| Dimensions & Weight / Weight | 30.22 kg |
| Dimensions & Weight / Width | 44.62 cm |
| Header / Brand | QNAP |
| Header / Country Kits | United States |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | D-2142IT |
| Processor / Type | Xeon |
| Service & Support / Type | 5-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 34.92 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Built-in Devices | 64 GB SSD, 3 x 60 mm fans, buzzer |
| Depth | 58.775 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 3U |
| Height | 13.2 cm |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Localization | United States |
| Weight | 30.22 kg () |
| Width | 44.62 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, EN 55022 Class A, EN55024, EN60950, BSMI, VCCI, CB, LVD |
| Features | Reset button |
| Included Accessories | 2 x power cables, 64 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD), rack rail kit, 2 x battery backup units |
| Networking | |
| Data Link Protocol | 1GbE, 10GbE |
| Encryption Algorithm | AES-NI |
| Features | Floating point unit, Encryption Engine, SSD cache acceleration support, WOL, Jumbo Frames support, Storage Pool, JBOD Expansion, fibre channel service, storage QoS, RAID Group, RAID Hot Spare, End-to-End Data Integrity, silent error detection and self-healing, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Shared Folder Snapshot, LUN snapshot, FTP server, Resource Monitor, Network Recycle Bin, Smart Fan, CLI management, iSER, 2-factor authentication, Service binding, failover support |
| Network / Transport Protocol | IPv4, IPv6, FTP, iSCSI, SMSC |
| Network Services Compatibility | Microsoft CIFS, Microsoft Active Directory (AD), FTP, FTPS, HTTP, HTTPS, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4.1 (NFS v4.1), File Level Security (ACLs) |
| Performance | Concurrent connections (CIFS): 10000 - (with maximum memory) |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, LDAP, FTPS, TFTP, HTTP, HTTPS, SSH, SMTP, Bonjour |
| Power | |
| Power Consumption Operational | 500.87 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 700 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 90 - 264 V |
| Processor / Memory | |
| Features | Registered, ECC |
| Flash Memory Installed | 4 GB |
| Max Supported Qty | 2 |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| Processors Installed | 2 x Intel Xeon D-2142IT 1.9 GHz |
| RAM | 96 GB (installed) / 512 GB (supported) - DDR4 |
| Software / System Requirements | |
| Storage Operating System | QNAP QES 2.2.1 |
| Storage Controller | |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP |
| Type | RAID |
