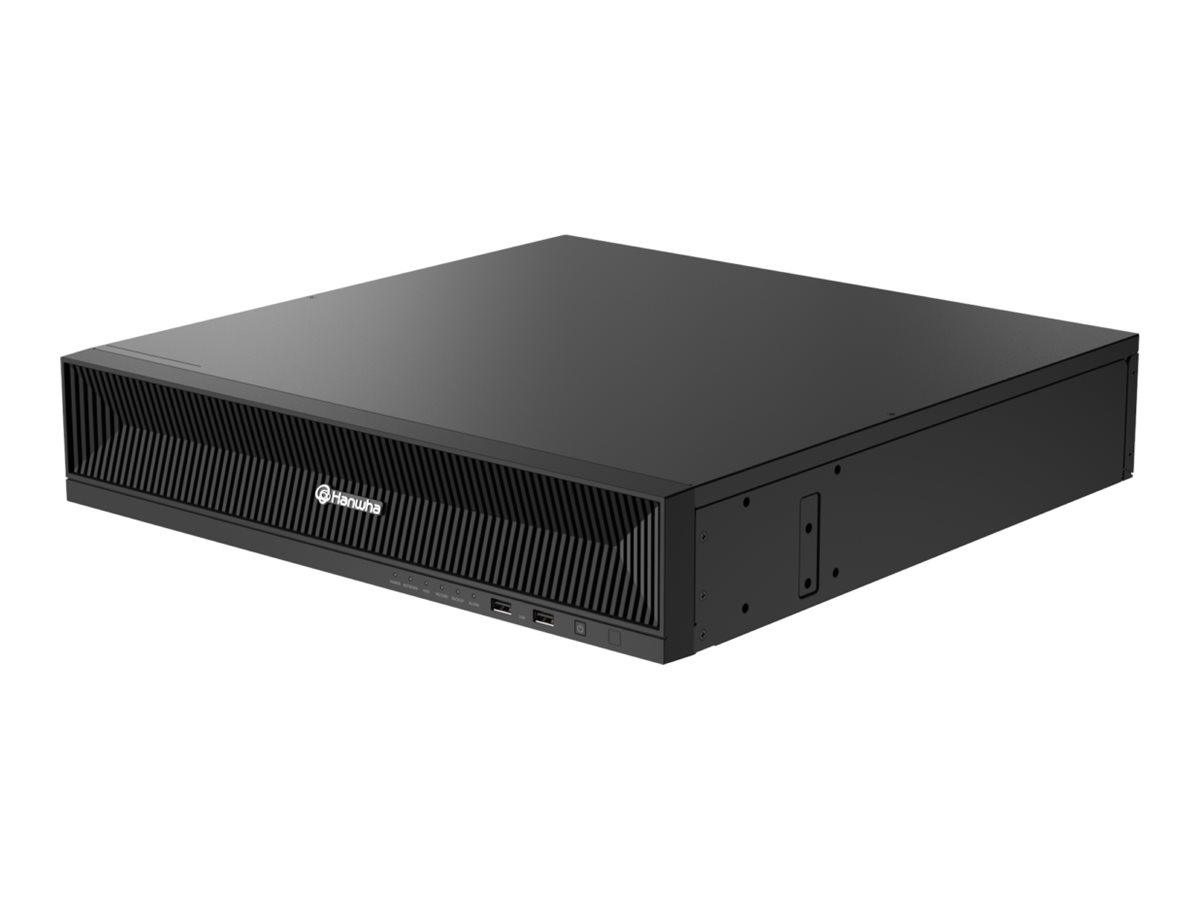

Hanwha Vision WiseNet XRN-6420B2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet XRN-6420B2
- NVR
- 64 channels 80 TB
- networked
| Additional Details | |
|---|---|
| Mfr Part #: | XRN-6420B2-80TB |
| SHI Part #: | 49978505 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet XRN-6420B2 - NVR - 64 channels 80 TB - networked |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.49 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 7.3 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm output x 4, alarm input x 8 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 3 |
| Other Ports | iSCSI, USB 3.0 x 2, USB 2.0 x 2 |
| Video Output Ports | HDMI x 2 |
| Dimensions & Weight | |
| Depth | 43.49 cm |
| Height | 8.6 cm |
| Weight | 7.3 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 64 |
| Color | Black |
| Compliant Standards | IEEE 802.1x, TLS, NDAA |
| Compression Format | H.265, H.264, MJPEG, AVI, G.711, G.726, AAC |
| Device Type | NVR |
| Image Resolution | 3840x2160, 1920x1080 |
| OS Provided | Linux |
| Package Content | Keyboard, mouse |
| Video Channels | 64 |
| Hard Drive | |
| Capacity | 80 TB |
| Quantity Supported | 8 |
| Supported Max Total Capacity | 80 TB |
| Networking | |
| DDNS Support | Yes |
| Features | ONVIF support, built-in buzzer, Hanwha DDNS, IP address filtering, 802.1x authentication, Trusted Platform Module (TPM), Source-Specific Multicast (SSM), auto bitrate con?guration, data compression, GOP control, Hallway view, mobile users support |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTSP, RTCP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF, SUNAPI, TLS, CGI |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption | 143 Watt |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, 32 split screens, 36 split screens, 64 split screens, dynamic layout |
| Features | Recording data rate up to 520 Mbps, dual stream support, e-mail alarm notifications, event notification, 300 PTZ position presets, 200 Mbps Incoming Bandwidth, Fisheye Dewarp function, Auto Recovery Backup (ARB), 2-way audio communication, Webviewer, brightness adjustment, contrast adjustment |
| Frame Rate (Playback) | 15 fps, 30 fps |
| Networked | Yes |
| Playback Search | Bookmark, date/time, event, text, smart search |
| Record Events | Scheduled, continuous, event, pre-event, alarm, video loss, sensor, motion detection, analytics, defocus detection, audio detection |
| Video Recording Resolution | CIF, 32 Megapixels, 12 Megapixels, 1920x1080, 1280x720, D1, 8.3 Megapixels |
| System Requirements | |
| Browser | Edge/Safari/Google Chrome |
