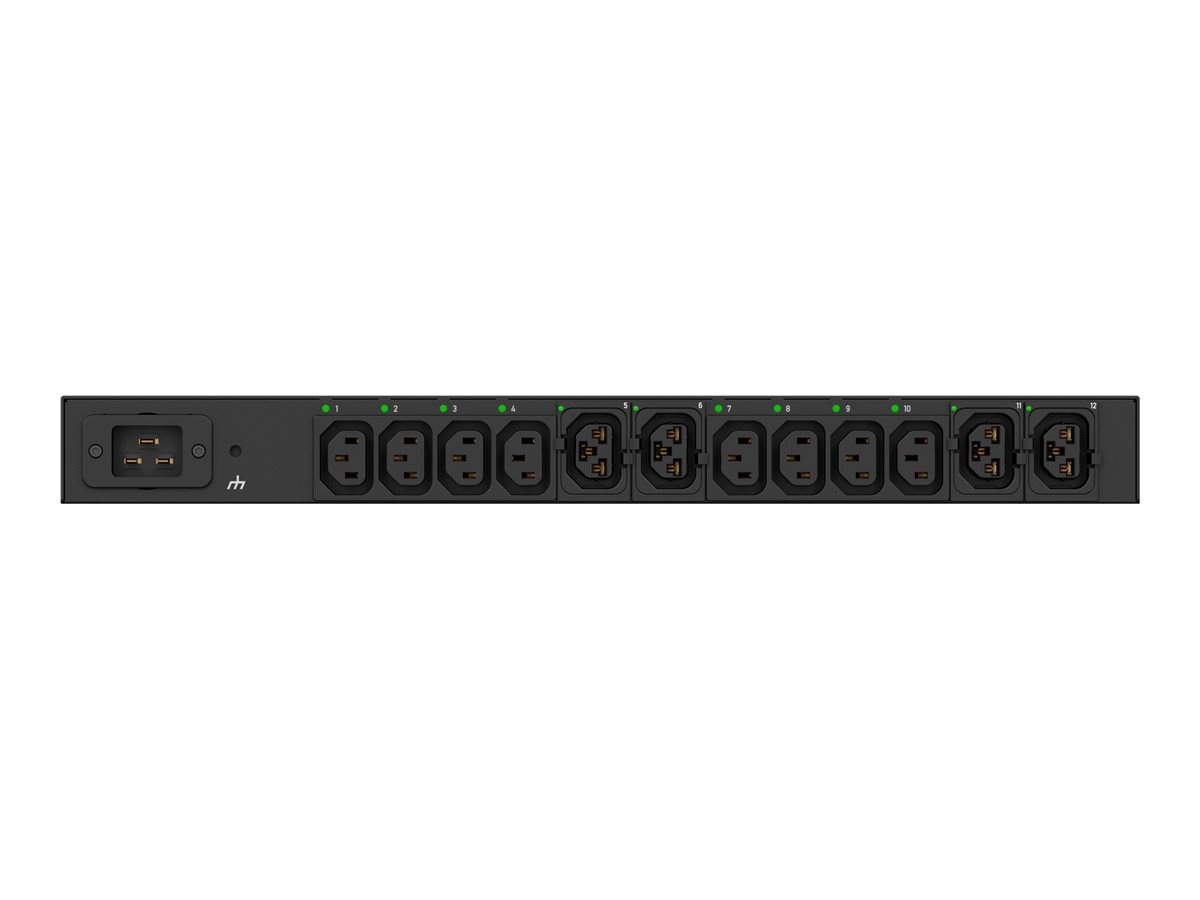

Raritan PX4-1256CR-C8E8A0
MSRP$963.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX4-1256CR-C8E8A0
- Power distribution unit (rack-mountable)
- AC 240 V
- 3800 VA
- 1-phase
- Ethernet 10/100/1000, RS-232, USB
- input: IEC C20
- output connectors: 12 (power IEC 60320 C13, IEC 60320 Cx)
- 1U
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $963.00 |
| Mfr Part #: | PX4-1256CR-C8E8A0 |
| SHI Part #: | 49911401 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-1256CR-C8E8A0 - Power distribution unit (rack-mountable) - AC 240 V - 3800 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC C20 - output connectors: 12 (power IEC 60320 C13, IEC 60320 Cx) - 1U - black |
| Manufacturer | Legrand |
| MSRP | $963.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.3 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.08 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Power Capacity (VA) | 3800 VA |
| Power Device / Voltage Required | AC 240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 18.3 cm |
| Height | 4.4 cm |
| Weight | 4.08 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 37.2 cm |
| Shipping Height | 20.8 cm |
| Shipping Width | 55 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Extruded aluminum housing, powder coated, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, rear feed cord entry |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP, CLI |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC C20 |
| Input Voltage | AC 240 V |
| Input Voltage Range | AC 100 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 240 V 50/60 Hz |
| Power Capacity | 3800 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 3.8 kVA at 240 V |
| Power Output Connectors Details |
|
