Hardware Computers and Tablets Desktops and Workstations

Desktops and Workstations

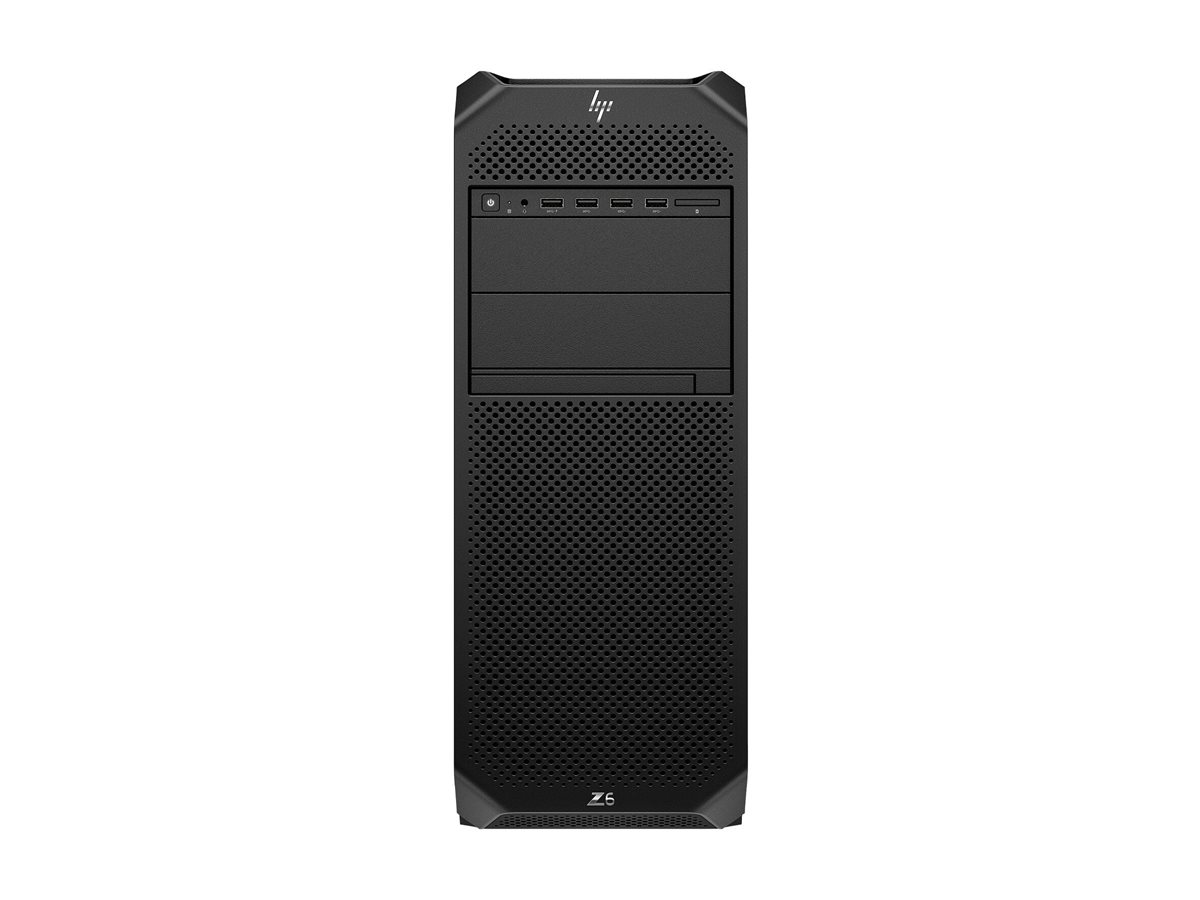

HP Workstation Z6 G5

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Tower 4U 1 x Xeon W W5-3535X / up to 4.8 GHz RAM 16 GB SSD 512 GB HP Z Turbo Drive, NVMe, TLC

HP Workstation Z6 G5

Tower 4U
1 x Xeon W W5-3535X / up to 4.8 GHz
RAM 16 GB
SSD 512 GB
HP Z Turbo Drive, NVMe, TLC
RTX 4000 Ada
Gigabit Ethernet
Win 11 Pro
monitor: none
keyboard: US
black
Smart Buy
with HP Wolf Pro Security Edition (1 year)

Additional Details
Mfr Part #:	BG9A2UT#ABA
SHI Part #:	49887877
Category:	Desktop computers
UNSPSC:	43211507
Manufacturer:	HP, Inc.
Product Type:	Hardware

Keyboards and Keypads

HP Desktop 320MK - Keyboard and mouse set

USB
US
Smart Buy
for Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 83X G8, 840, 84X G8, 85X G8

HP Desktop 320K - Keyboard

US
for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360

HP Desktop 320K - Keyboard

USB
US
Smart Buy
for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360

Mice and Trackballs

HP 125 - Mouse - wired

USB
black
promo

HP 125 - Mouse - wired

USB
black

HP 128 - Mouse - laser

wired
black

Monitors and Displays

HP 524pf - Series 5 Pro

LED monitor
24" (23.8" viewable)
1920 x 1080 Full HD (1080p) @ 100 Hz
IPS
350 cd/m²
1500:1

HP 324pf - Series 3 Pro

LED monitor
24" (23.8" viewable)
1920 x 1080 Full HD (1080p) @ 100 Hz
IPS
250 cd/m²
1000:1

HP P24h G5 - LED monitor

23.8"
1920 x 1080 Full HD (1080p) @ 75 Hz
IPS
250 cd/m²
1000:1
5 ms

General Information
Category	Desktop computers
Description	HP Workstation Z6 G5 - Tower 4U - 1 x Xeon W W5-3535X / up to 4.8 GHz - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - RTX 4000 Ada - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	46.48 cm
Dimensions & Weight / Height	44.45 cm
Dimensions & Weight / Weight	12.8 kg
Dimensions & Weight / Width	16.89 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	LGA4677 Socket-E
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.9 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	W5-3535X
Processor / Type	Xeon Xeon W
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX 4000 Ada
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	45 MB
Installed Size	L3 cache - 45 MB
Dimensions & Weight
Depth	46.48 cm
Height	44.45 cm
Weight	12.8 kg
Width	16.89 cm
Dimensions & Weight (Shipping)
Shipping Depth	61 cm
Shipping Height	59.3 cm
Shipping Weight	17.25 kg
Shipping Width	31.3 cm
Environmental Parameters
Humidity Range Operating	8 - 85% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 5.25" 1 (total) / 1 (free) x external 5.25" Slim Line 2 (total) / 2 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) 2 x USB-C 3.2 Gen 2x2 (2 in front) (Power Delivery 3.0) 2 x USB 3.2 Gen 1 (2 in front) (one of them is Battery Charging 1.2) 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) 6 x USB 3.2 Gen 1 (6 rear) 4 x DisplayPort 1.4a
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 - full-length, full-height 2 (total) / 2 (free) x PCIe 4.0 x4 - full-length, half-height 2 (total) / 2 (free) x PCIe 4.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode)
General
Built-in Devices	Speaker
Bundled with	HP Wolf Pro Security Edition (1 year)
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Type	Workstation
Graphics Controller
Bandwidth	360 GBps
Graphics Processor	NVIDIA RTX 4000 Ada
Interface Type	PCIe 4.0 x16
Video Interfaces	DisplayPort
Video Memory	20 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express
Type	SSD - M.2 2280
Input Device
Type	Keyboard, mouse
Keyboard
Interface	USB
Keyboard Name	HP 320K
Localization & Layout	US
Miscellaneous
Compliant Standards	RoHS, WEEE, CECP, Common Criteria EAL4+, FEMP
Manufacturer Selling Program	HP Smart Buy
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	PXE 2.1 support, Intel Active Management Technology (AMT), Wake on LAN (WoL)
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Anyware, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP PC Hardware Diagnostics Windows, HP Notifications, HP Desktop Support Utility, HP Documentation, myHP, HP Easy Clean, Kingsoft Office, HP Image Assistant, HP Support Assistant, HP Smart Health, HP Driver Packs (free download), HP System Software Manager, HP BIOS Config Utility, HP Client Catalog, HP Manageability Integration Kit (free download), HP Sure Run, HP BIOSphere Gen6
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Power Provided	1125 Watt
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	2.9 GHz
CPU	Intel Xeon W W5-3535X
CPU Qty	1
CPU Socket	LGA4677 Socket-E
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.8 GHz
Number of Cores	20-core
Processor Main Features	Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Turbo Boost Max 3.0, Intel Smart Cache
RAM
Configuration Features	1 x 16 GB
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 1 TB (max)
Rated Memory Speed	2400 MHz
Slots	8 (total) / 7 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	SATA/NVMe
Sustainability Information
ENERGY STAR Certified	Yes
