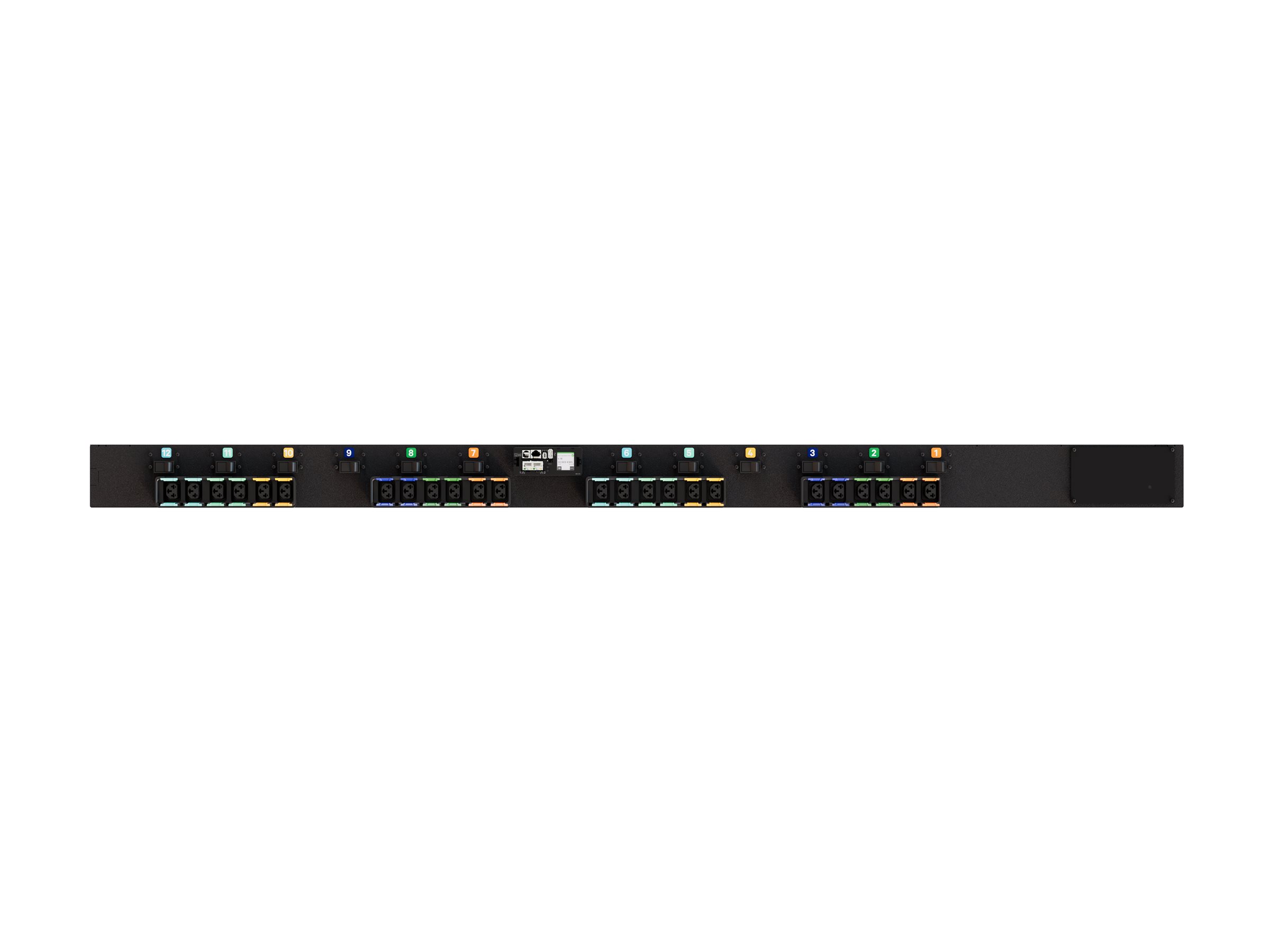

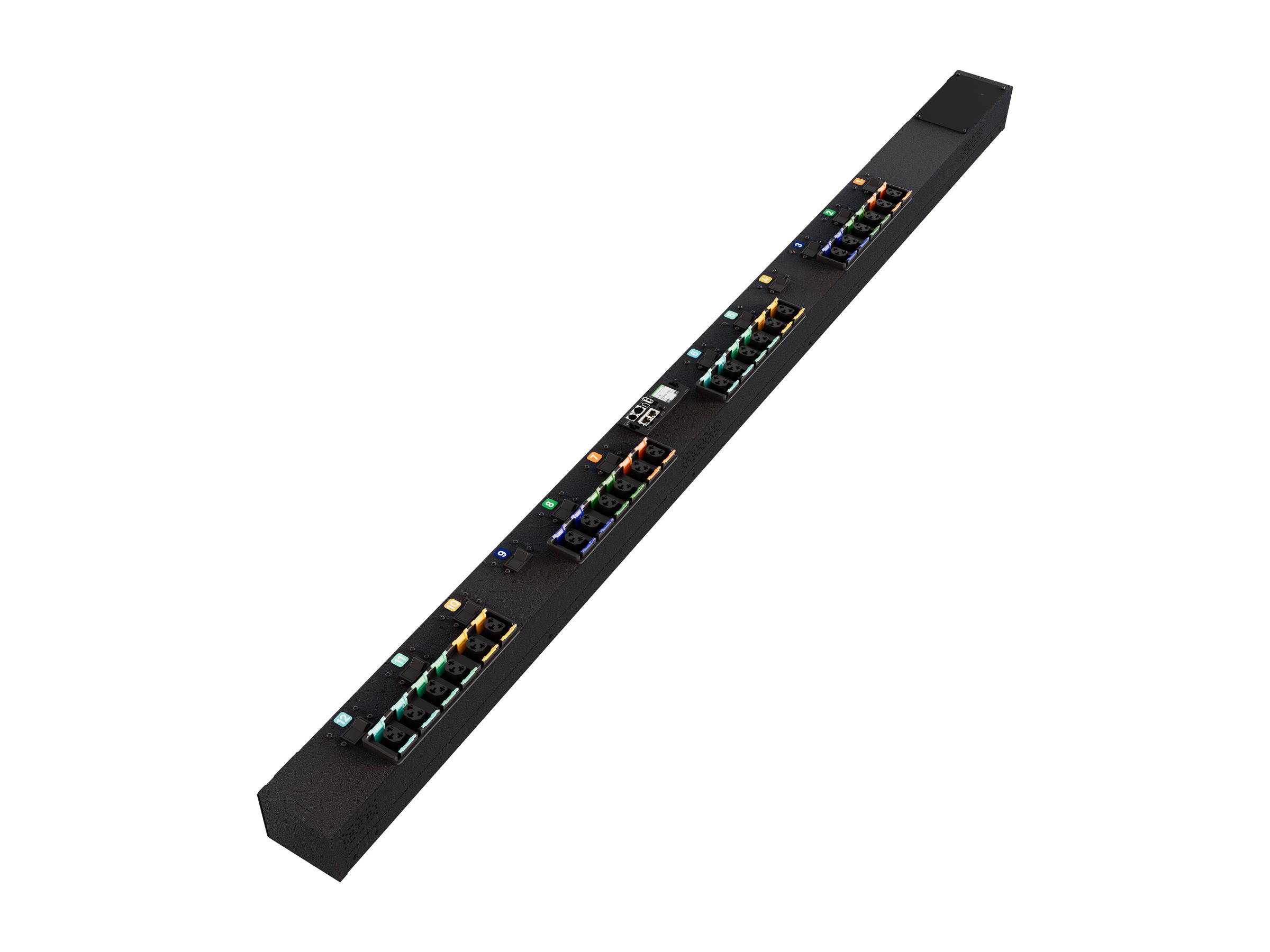

Vertiv PowerIT JMNR5MIZ1-24CF18-8HW15A9BXX-S
MSRP$4,836.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vertiv PowerIT JMNR5MIZ1-24CF18-8HW15A9BXX-S
- Power distribution unit (rack-mountable)
- AC 208/240 V
- 28.8 kW
- 1-phase delta / 3-phase delta
- Ethernet 10/100/1000, RS-232, USB
- input: hardwire
- output connectors: 24 (IEC 60320 C13/C19)
- 0U
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,836.00 |
| Mfr Part #: | VP6NA0A0 |
| SHI Part #: | 49887025 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Vertiv PowerIT JMNR5MIZ1-24CF18-8HW15A9BXX-S - Power distribution unit (rack-mountable) - AC 208/240 V - 28.8 kW - 1-phase delta / 3-phase delta - Ethernet 10/100/1000, RS-232, USB - input: hardwire - output connectors: 24 (IEC 60320 C13/C19) - 0U - black - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $4,836.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.6 cm |
| Dimensions & Weight / Height | 168.3 cm |
| Dimensions & Weight / Width | 9.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 208/240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.6 cm |
| Height | 168.3 cm |
| Width | 9.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.98 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | ANSI, IEC, UL 2900-1, UL, RoHS, C-UL, FCC Part 15 A, UL 62368-1, ANSI C12.1, IEC 62053-21 |
| Features | Vertical orientation, powder-coated, overload protection, remote power cycling, environment sensor ports, outlet control, color-coded labels, U-lock outlets, P-lock power cord compatible, daisy chain functionality, high retention locking outlets, remote outlet switching, remote reboot, monitored outlet level, Interchangeable Monitoring Device (IMD) module, monitored, touch screen LCD display, bottom end feed cord entry, 12 x 20A double pole magnetic breakers |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | IPv4, IPv6, HTTP, HTTPS, DHCP, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, Syslog, TACACS+, SNMP 2c, SNMP 3, Modbus, TCP/IP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Input Voltage | AC 208/240 V |
| Input Wiring | 1-phase delta / 3-phase delta |
| Max Electric Current | 80 A |
| Output Voltage | AC 208 V |
| Power Capacity | 28.8 kW |
| Power Output Connectors Details | 24 x power IEC 60320 C13/C19 |
