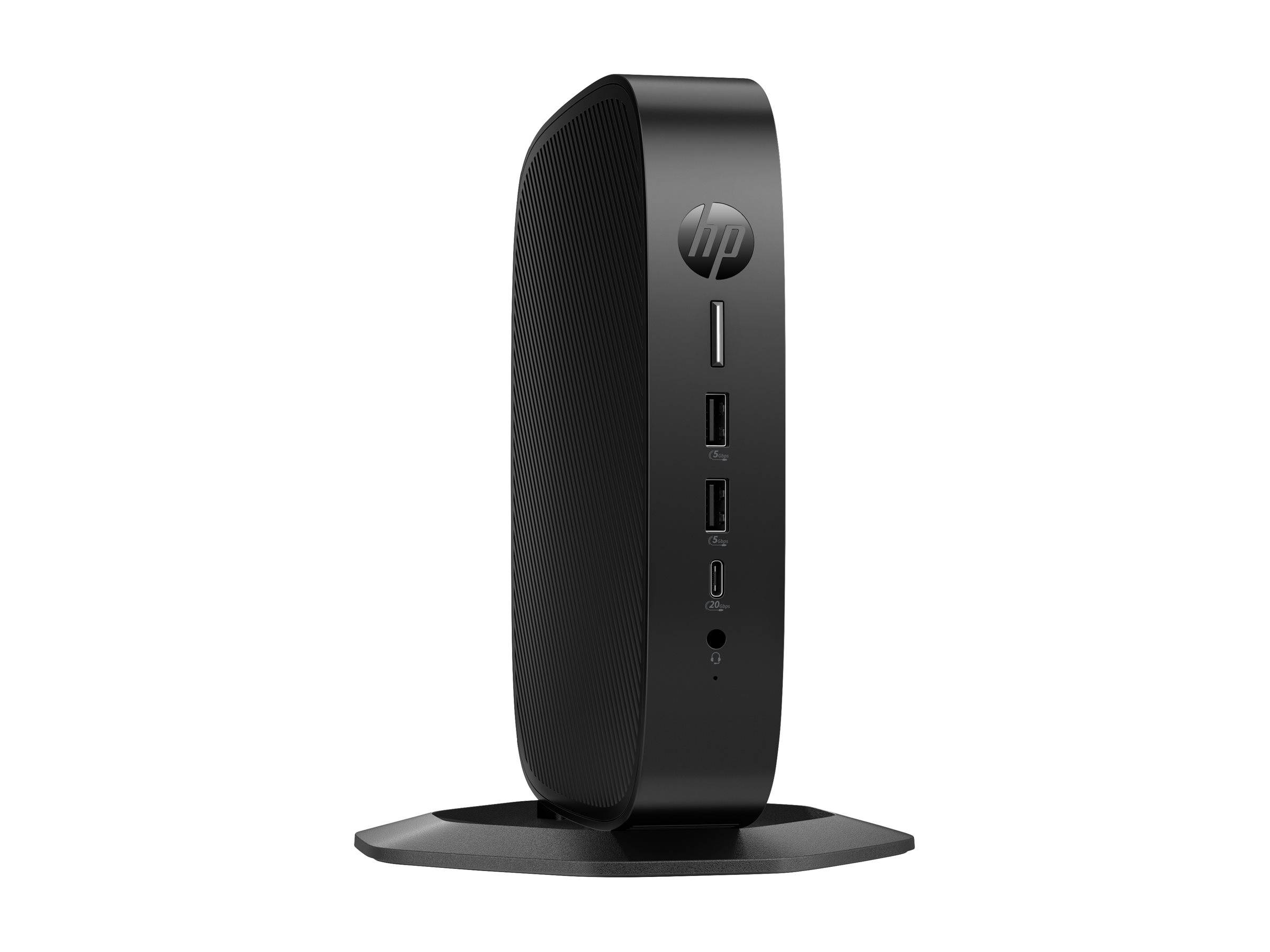

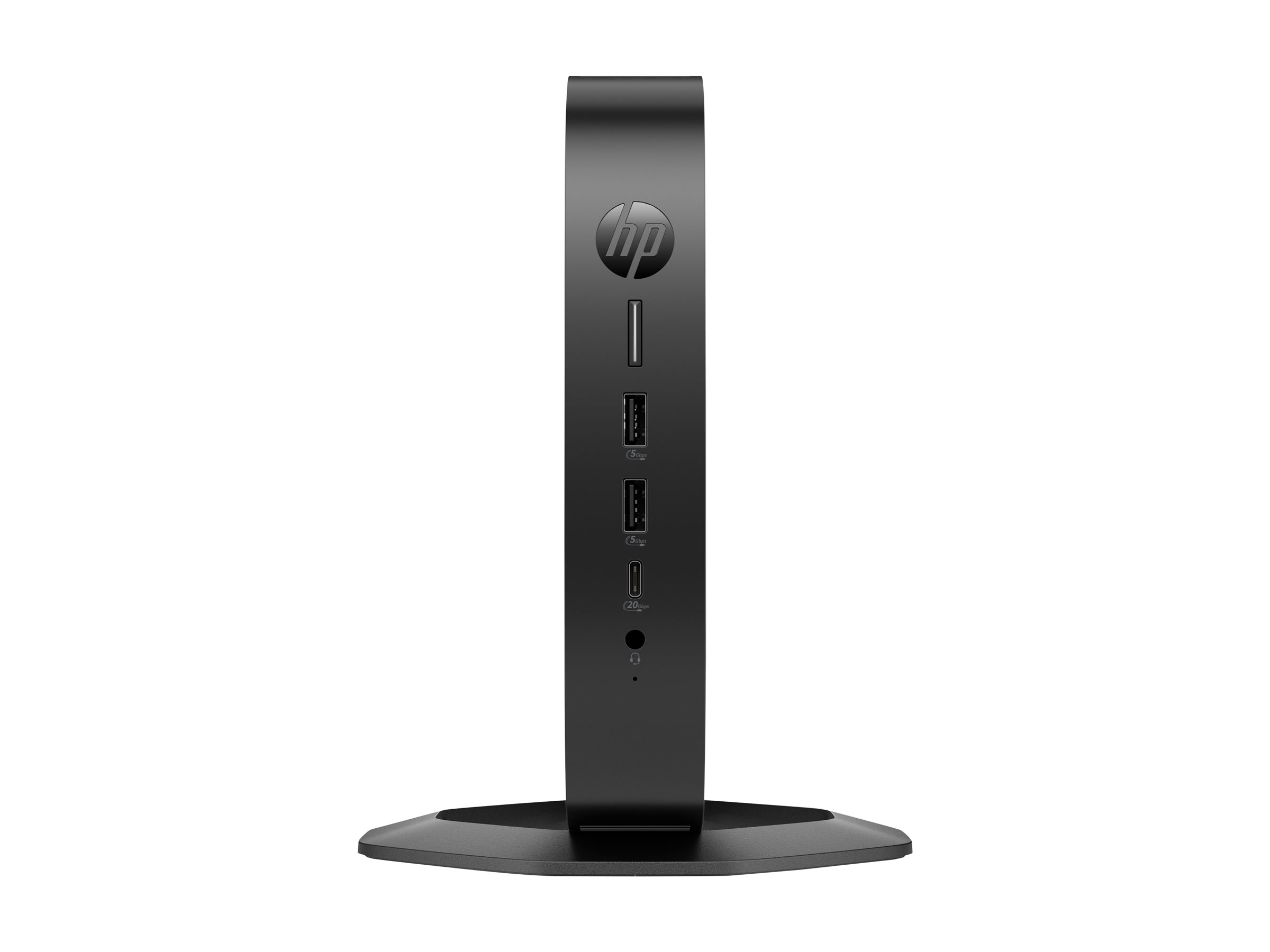

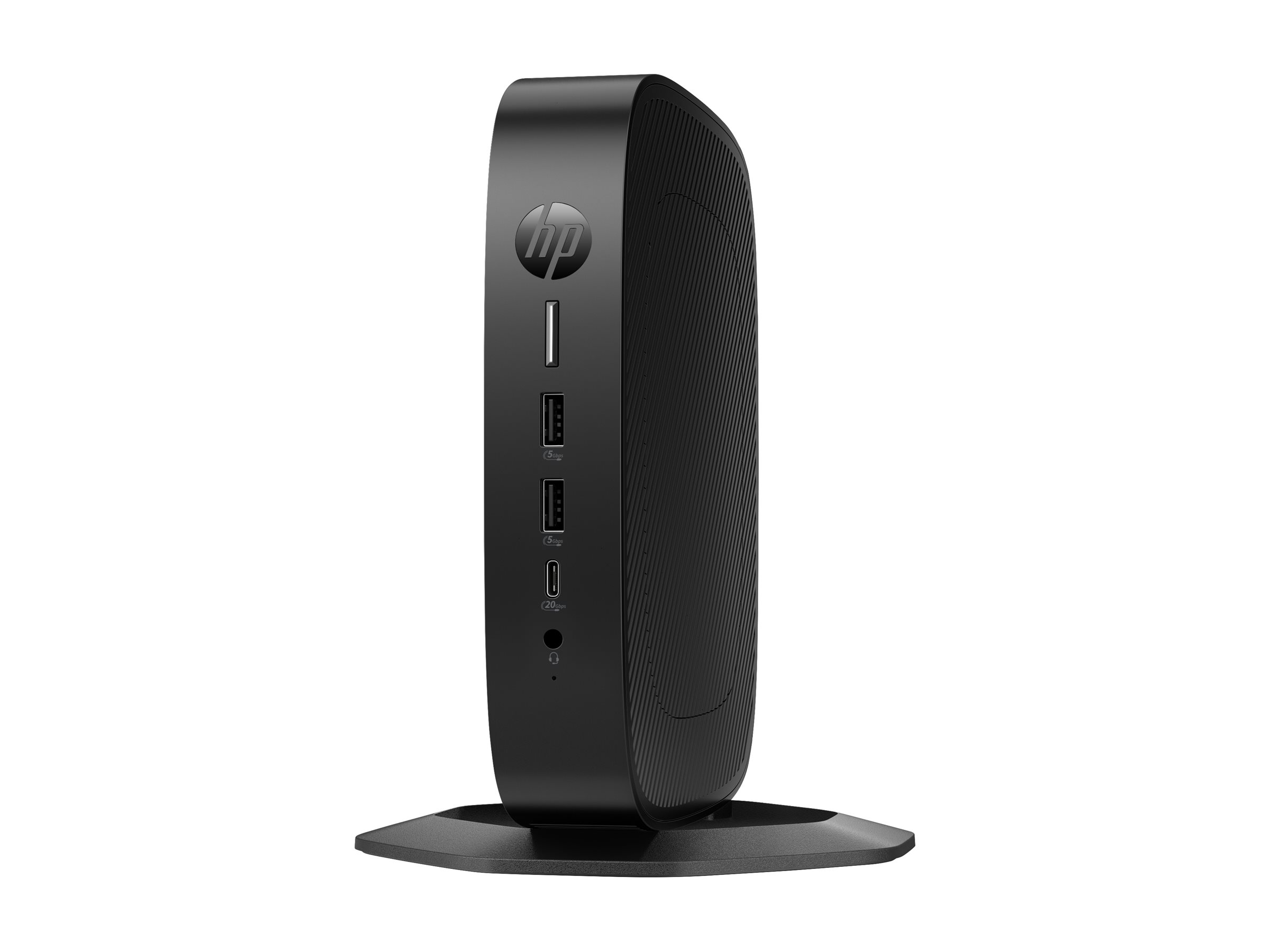

HP Elite t660 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP Elite t660 - Thin client
- SFF 1 x U-Series U300E / up to 4.3 GHz
- RAM 8 GB
- flash 64 GB
- eMMC
- UHD Graphics
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4
- 11 IoT Enterprise 2024 LTSC
- monitor: none
- keyboard: US
- Smart Buy
| Additional Details | |
|---|---|
| Mfr Part #: | B94VDUT#ABA |
| SHI Part #: | 49879322 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Monitors and Displays
- LED monitor
- 24" (23.8" viewable)
- 1920 x 1080 Full HD (1080p) @ 100 Hz
- IPS
- 350 cd/m²
- 1500:1
- LED monitor
- 24" (23.8" viewable)
- 1920 x 1080 Full HD (1080p) @ 100 Hz
- IPS
- 350 cd/m²
- 1500:1
- LED monitor
- 27"
- 2560 x 1440 QHD @ 100 Hz
- IPS
- 350 cd/m²
- 1500:1
Phone Headsets
- headset
- on-ear
- wired
- USB-A
- black
- Certified for Microsoft Teams
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP Elite t660 - Thin client - SFF 1 x U-Series U300E / up to 4.3 GHz - RAM 8 GB - flash 64 GB - eMMC - UHD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 - 11 IoT Enterprise 2024 LTSC - monitor: none - keyboard: US - Smart Buy |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 20 cm |
| Dimensions & Weight / Weight | 1.2 kg |
| Dimensions & Weight / Width | 3.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 64 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 IoT Enterprise 2024 LTSC |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 5-core |
| Processor / Processor Number | U300E |
| Processor / Type | U-Series |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Memory Speed | 2600 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 64 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | Intel UHD Graphics |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| Dimensions & Weight | |
| Depth | 20 cm |
| Dimensions & Weight Details |
|
| Height | 20 cm |
| Weight | 1.2 kg |
| Width | 3.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.2 cm |
| Shipping Height | 26 cm |
| Shipping Weight | 2.98 kg |
| Shipping Width | 49.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Max Monitors Supported | 4 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 64 GB |
| Features | eMMC |
| Type | Flash |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS2, ERP, CECP, SEPA, HP GSE, WEEE, low halogen, UL, CB, GS, CCC, BSMI, FCC Class B certified, CISPR Class B, VCCI Class B, ICES Class B, AS/NZS, CNS Class B, KCC Class B, EN60601-1-2 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4 |
| Ethernet Controller | Realtek RTL8111HSH-CG |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC English |
| Software | Microsoft Edge, HP Sure Start, HP User State Tool, HP Sure Admin, HP Secure Erase, HP ThinUpdate, HP Device Manager, HP Easy Tools, HP Smart Zero Client Services, HP USB Port Manager, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Easy Shell, HP True Graphics, HP Write Manager, Microsoft AVD, Microsoft RFX, Microsoft RDP, Citrix HDX, Citrix ICA, HP Remote Graphics Software, LogOn Manager, Microsoft Firewall, Microsoft Unified Write Filter, Microsoft SCCM/EDM-agent, Microsoft Windows Media Player, Microsoft Direct Access, CyberLink Power Media Player |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 87% |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 1.1 GHz |
| CPU | Intel U-Series U300E |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.3 GHz (P-core) / 3.2 GHz (E-core) |
| Number of Cores | 5-core |
| Processor Main Features | Intel Turbo Boost Technology |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 2600 MHz |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 2800 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Gold |
