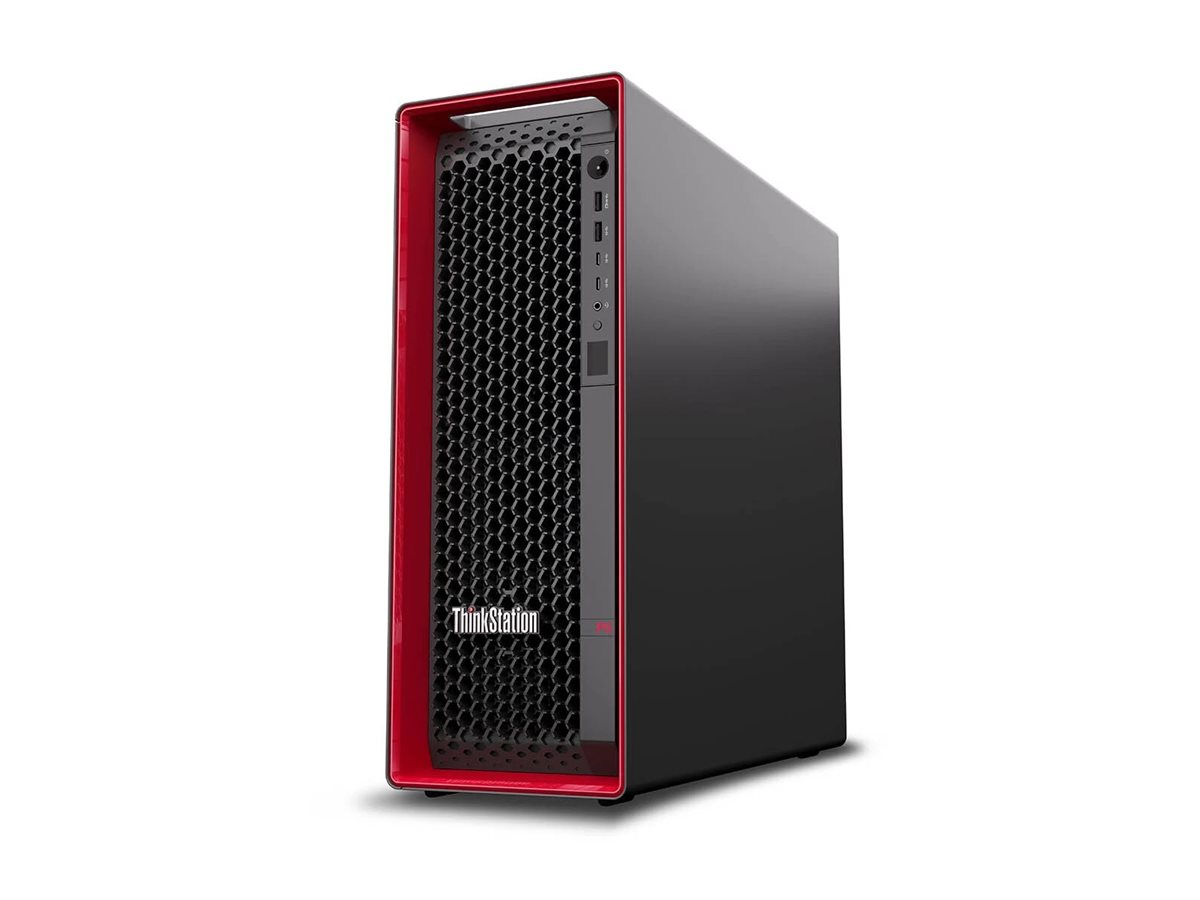

Lenovo ThinkStation P5 30G9
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo ThinkStation P5 30G9
- Tower 1 x Xeon W W5-2455X / up to 4.6 GHz
- vPro Enterprise
- RAM 64 GB
- SSD 1 TB
- TCG Opal Encryption, Performance
- RTX A4500
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
- Win 11 Pro for Workstations
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 30G9S2RT48 |
| SHI Part #: | 49867509 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkStation P5 30G9 - Tower 1 x Xeon W W5-2455X / up to 4.6 GHz - vPro Enterprise - RAM 64 GB - SSD 1 TB - TCG Opal Encryption, Performance - RTX A4500 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro for Workstations - monitor: none |
| Manufacturer | Lenovo |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 45.39 cm |
| Dimensions & Weight / Height | 44.6 cm |
| Dimensions & Weight / Weight | 19 kg |
| Dimensions & Weight / Width | 16.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Mainboard / Chipset Type | Intel W790 |
| Mainboard / Processor Socket | FCLGA4677 Socket |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro for Workstations |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | W5-2455X |
| Processor / Type | Xeon W |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Platform Technology | Intel vPro Enterprise |
| System / Type | Workstation |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX A4500 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | 30 MB |
| Dimensions & Weight | |
| Depth | 45.39 cm |
| Height | 44.6 cm |
| Weight | 19 kg |
| Width | 16.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 3.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Platform Technology | Intel vPro Enterprise |
| Product Form Factor | Tower |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A4500 |
| Video Interfaces | DisplayPort |
| Video Memory | 20 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | TCG Opal Encryption, Performance |
| Interface Type | PCI Express 4.0 x4 |
| Manufacturer | Micron |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, TCG Certified |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16 |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Operating System / Software | |
| OS Provided | Windows 11 Pro for Workstations |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Efficiency | 92% |
| Power Provided | 1000 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W790 |
| Clock Speed | 3.2 GHz |
| CPU | Intel Xeon W W5-2455X |
| CPU Qty | 1 |
| CPU Socket | FCLGA4677 Socket |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 12-core |
| RAM | |
| Configuration Features | 4 x 16 GB |
| Effective Memory Speed | 2400 MHz |
| Features | Registered |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 512 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 8 (total) / 4 (empty) |
| Technology | DDR5 SDRAM - ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Type | 1 x RAID |
| Storage Controller (2nd) | |
| Controller Interface Type | PCI Express |
| Type | 1 x NVMe |
| Sustainability Information | |
| Carbon Footprint | 2205 kg carbon emissions (EU) |
| EPEAT Compliant | EPEAT Gold |
| PAIA Version | 1.3.2 |
| TCO Certified | TCO Certified Desktops 9 |
| Total CF/unit Standard Deviation (kg CO2e) | 744 |
