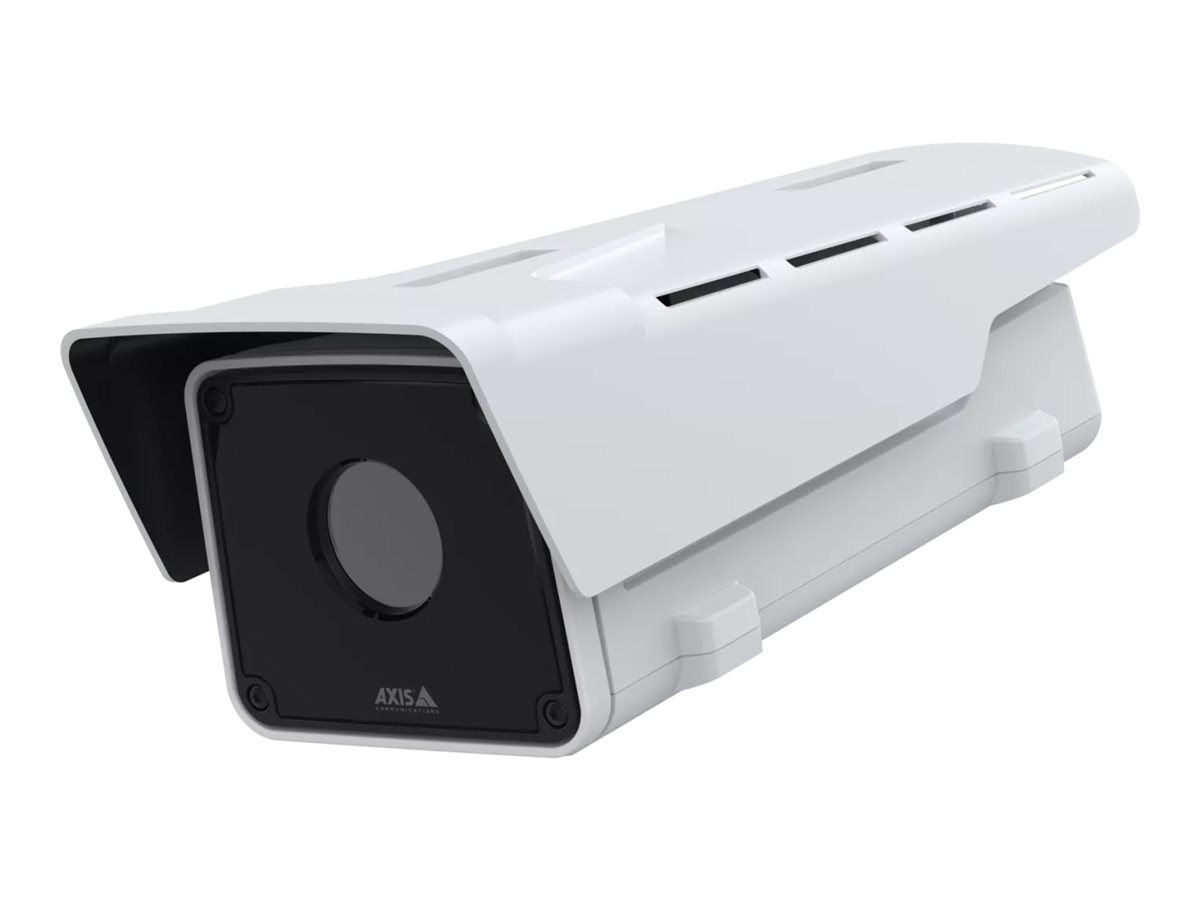

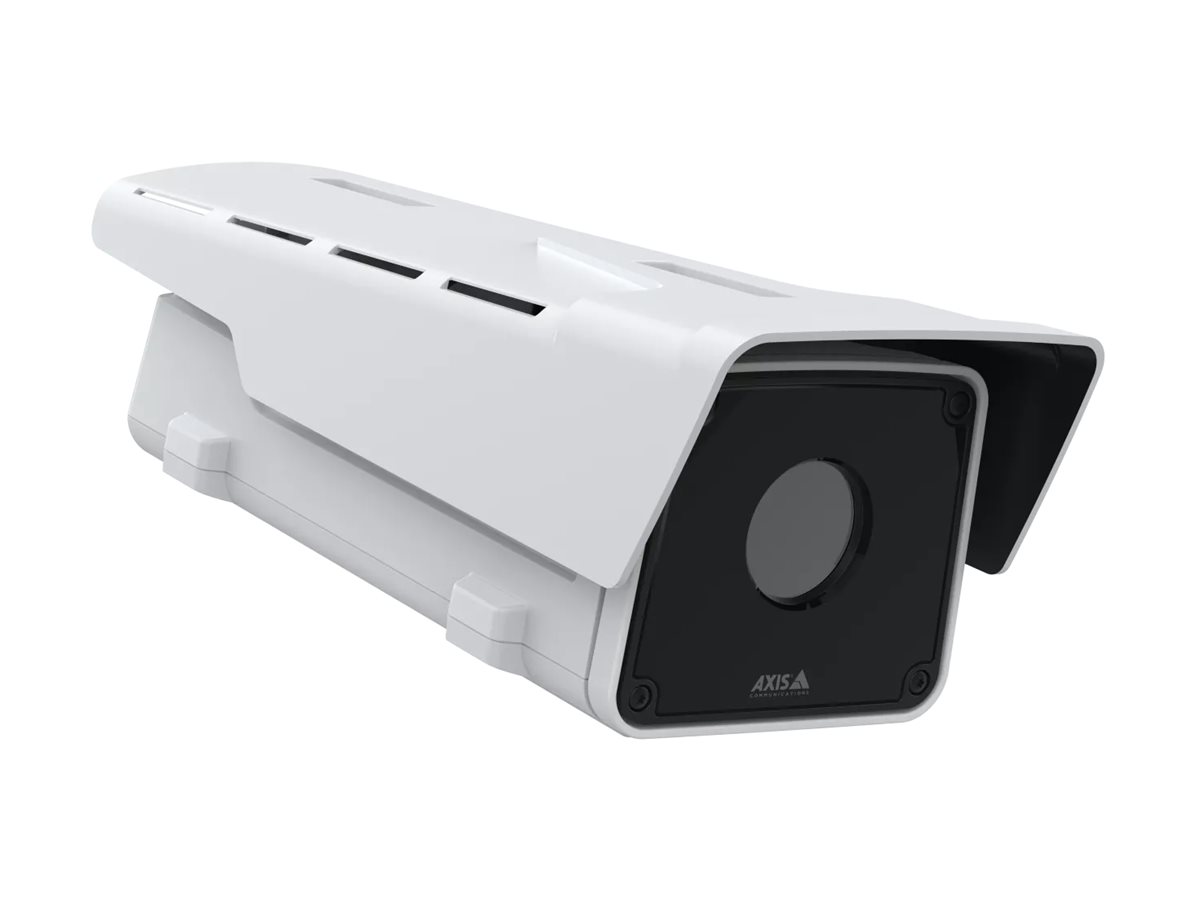

AXIS Q21 Series Q2112-E

$7,617.00
AXIS Q21 Series Q2112-E
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Thermal network camera
  • bullet
  • outdoor
  • weather resistant / impact resistant
  • 800 x 600
AXIS Q21 Series Q2112-E
  • Thermal network camera
  • bullet
  • outdoor
  • weather resistant / impact resistant
  • 800 x 600
  • audio
  • GbE
  • H.264, MJPEG, H.265, AVC, HEVC
  • DC 10
  • 28 V / PoE Class 4
  • TAA Compliant
  Additional Details
Price: $7,617.00
Mfr Part #: 02605-001
SHI Part #: 49819199
Category: Surveillance and detection equipment
UNSPSC: 46171600
Manufacturer: Axis Communications
Product Type: Hardware
General Information
CategorySurveillance and detection equipment
DescriptionAXIS Q21 Series Q2112-E - Thermal network camera - bullet - outdoor - weather resistant / impact resistant - 800 x 600 - audio - GbE - H.264, MJPEG, H.265, AVC, HEVC - DC 10 - 28 V / PoE Class 4 - TAA Compliant
ManufacturerAxis Communications
MSRP$6,619.00
UNSPSC46171600
Main Specifications
Dimensions & Weight / Weight3.5 kg
Header / BrandAxis
Header / Country Kits
  • Argentina
  • Australia
  • Brazil
  • China
  • European Union
  • Japan
  • Korea
  • United Kingdom
  • United States
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type5-year warranty
Camera
Digital Video Capture Resolution800 x 600, 768 x 576, 384 x 288
Digital Video FormatH.264, MJPEG, H.265, AVC, HEVC
FeaturesAxis Edge Vault, thermal sensitivity 20 mK (NETD), electronic image stabilization, Thermal Imaging System, 640 x 480 thermal resolution, multiple color palettes, Zipstream technology, Audio Detection, active tampering alarm, 24/7 recording, false alarm reduction, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, 256 preset positions, controllable frame rate, controllable bandwidth, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, contrast control, brightness control, sharpness control, local contrast control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, polygon privacy mask, Automatic Gain Control (AGC), network speaker pairing, spectrum visualizer, half duplex audio, full duplex audio, bit rate control, Privacy Mask Function, Edge Storage, trigger recording, manually schedule recording, clips notification, alarm notifications, Pixel Counter Support, level grid, Network Time Security (NTS), aluminum housing, NAS-Ready, PVC free, TPM 2.0 module
Flash Memory8 GB
Frame Rate (max)8.3 frames per second
Max Digital Video Resolution800 x 600
Motion DetectionYes
RAM2 GB
Type- fixed - outdoor - weather resistant / impact resistant
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)10 - 100% RH (condensing)
Expansion / Connectivity
Encryption AlgorithmPEAP, MSCHAPv2, Dynamic PSK, TLS 1.2, TLS 1.3, PKI, 256-bit AES-XTS-Plain64
Ports
  • LAN/power - RJ-45
  • Audio line-in/microphone - 3.5 mm jack
  • Audio line out - 3.5 mm jack
  • 2 x serial RS-485/RS-422 - terminal block
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsLPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS
Audio SupportYes: 10-band graphic equalizer, two-way audio via edge-to-edge technology
Connectivity TechnologyWired
Device TypeThermal network camera
Form FactorBullet
LocalizationArgentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Weight3.5 kg
Image Sensor
Effective Pixels640 x 480
TypeUncooled Micro bolometer
Interfaces
Alarm Inputs Qty4
Alarm Outputs Qty4
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsIPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, EAP
Lens Construction
Focal Length19 mm
Focus AdjustmentAthermalized
Horizontal Field of View (degree)31
Lens IrisF/1.0
Min Focus Distance8.5 m
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
ColorWhite, NCS S 1002-B
Compliant StandardsIK10, IP66, IP67, NEMA Type 4X, NEMA TS-2, FIPS 140-2, Halogen-free, CSA, cUL, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, RCM, AS/NZS CISPR 32 Class A, ICES, NMB-003, VCCI Class A, KS C 9835, KS C 9832, FCC Part 15 Subpart B:2020 Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IEC/EN 62262, ISO 21207 method B, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, BSI
Included AccessoriesTerminal block connectors, connector guard, cable gaskets, owner authentication key
TAA CompliantYes
Power
Power Device5.6 Watt
Power RequirementsDC 10 - 28 V / PoE Class 4
Software / System Requirements
Software IncludedAXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, AXIS Speed Monitor
