Hanwha Vision T Series TNV-C8034RM
MSRP$889.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

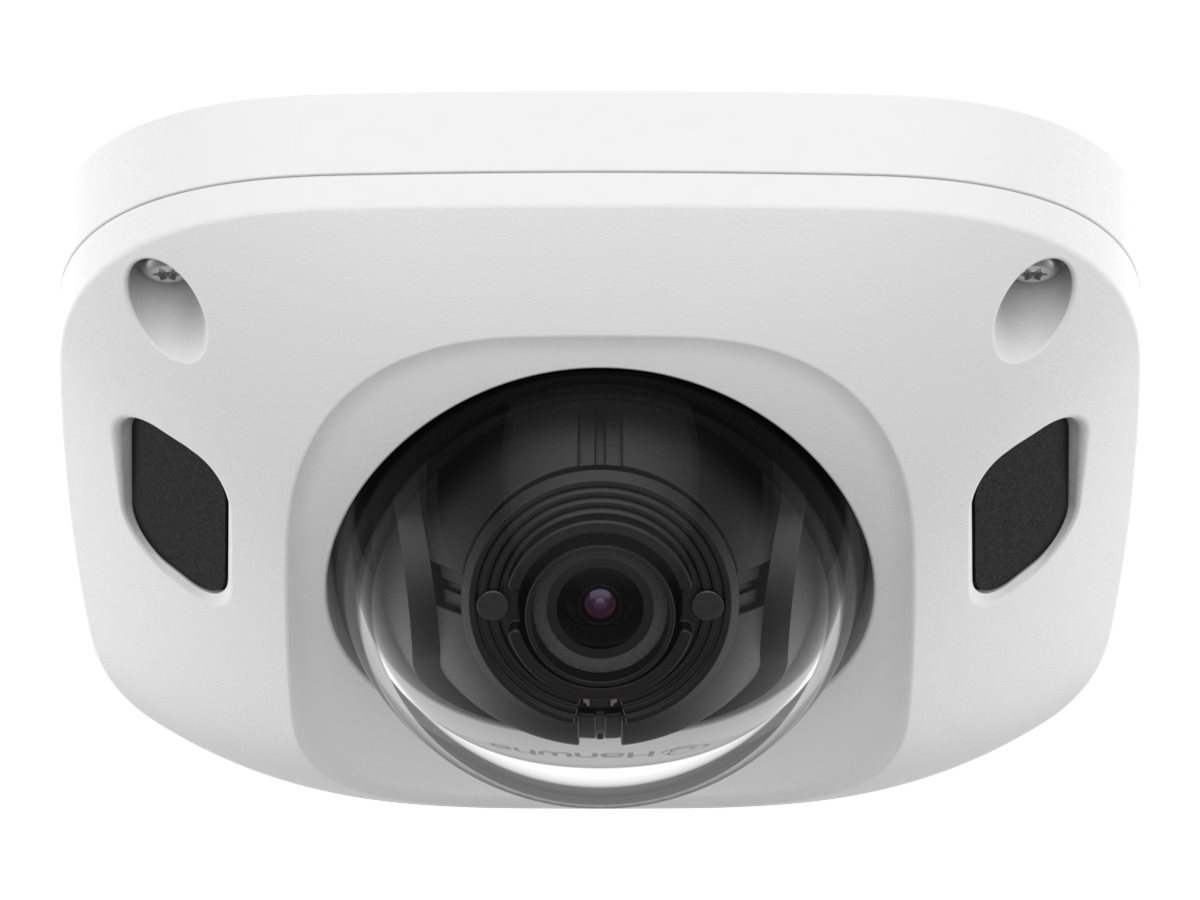

Hanwha Vision T Series TNV-C8034RM
- Network surveillance camera
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- M12 mount
- fixed iris
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $889.00 |
| Mfr Part #: | TNV-C8034RM |
| SHI Part #: | 49815454 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision T Series TNV-C8034RM - Network surveillance camera - dome - color (Day&Night) - 5 MP - 2592 x 1944 - M12 mount - fixed iris - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $889.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 5.5 cm |
| Dimensions & Weight / Weight | 466 g |
| Dimensions & Weight / Width | 10.6 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Features | AI-based analytics, AI-based business intelligence, hard-coated dome, Electronic Image Stabilizer (EIS), shock detection, heater, -90° / +90° rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), 120 dB dynamic range, Samsung Super Noise Reduction (SSNR) V, 32 privacy zones, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), image flip, image mirror, Hallway View, Object Detection, Person Detection, clothes color detection, vehicle color recognition, Best Shot Selector (BSS), Virtual Line detection, Line Crossing Detection, Directional Detection, loitering detection, intrusion detection, entrance / exit detection, Tampering detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, aluminum housing, AE(Automative Exposure) control system, Vehicle Detection, white balance, Defocus Detection, alarm notifications |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 10.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.5 cm |
| Weight | 466 g |
| Width | 10.6 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 64 |
| Focal Length | 6 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 50 |
| Lens Iris | F/1.65 fixed iris |
| Min Focus Distance | 2 m |
| Type | M12 mount |
| Vertical Field of View (degree) | 37 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | EMC, EN 45545, EN 50121-4, EN 50121-3-2, JIS E 5006, IEC 62236-3-2, IEC 62236-4, JIS E 4031, EN 50498, EN 50155, IEC/EN61373 |
| Panning | |
| Range (degree) | -5 to +5 |
| Power | |
| Power Device | 7.2 watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
