Hanwha Vision T TNV-C8014RM
MSRP$889.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

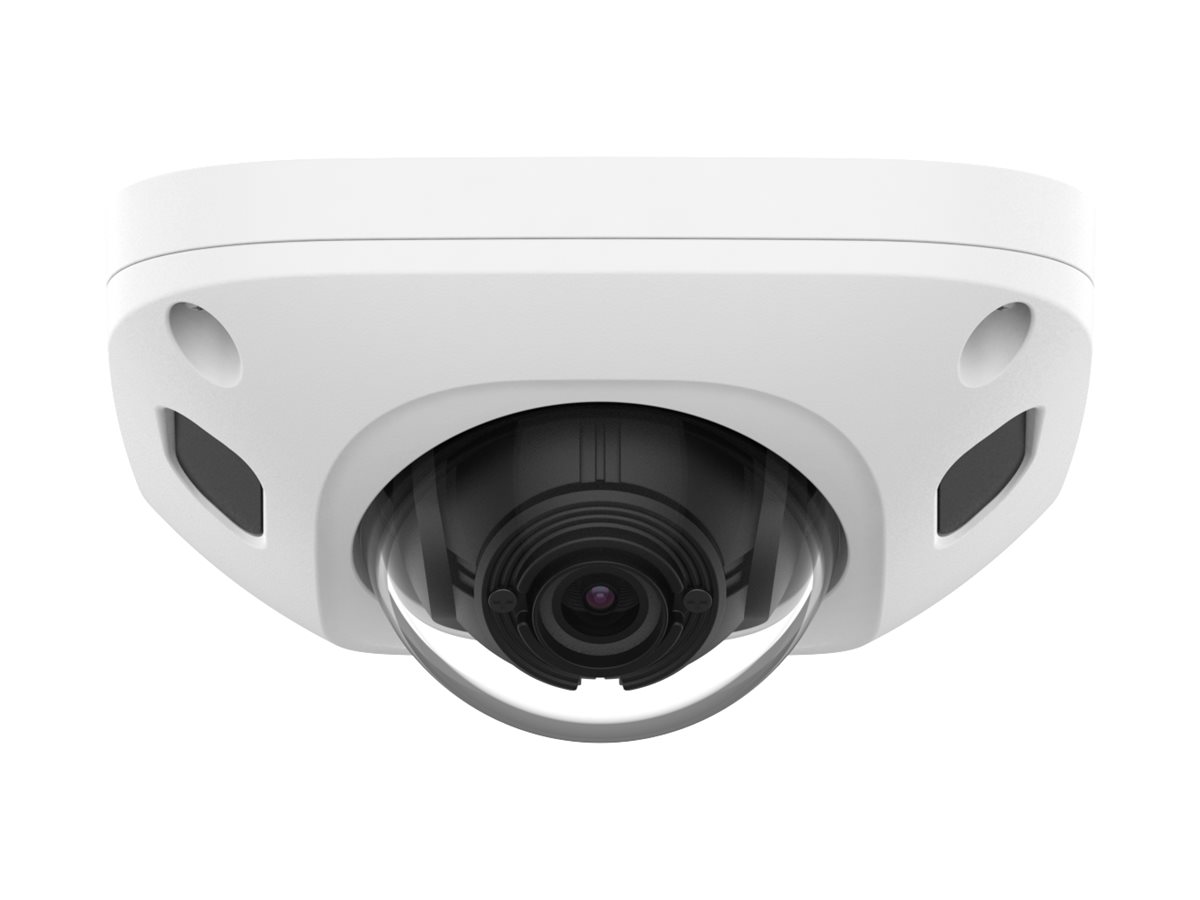

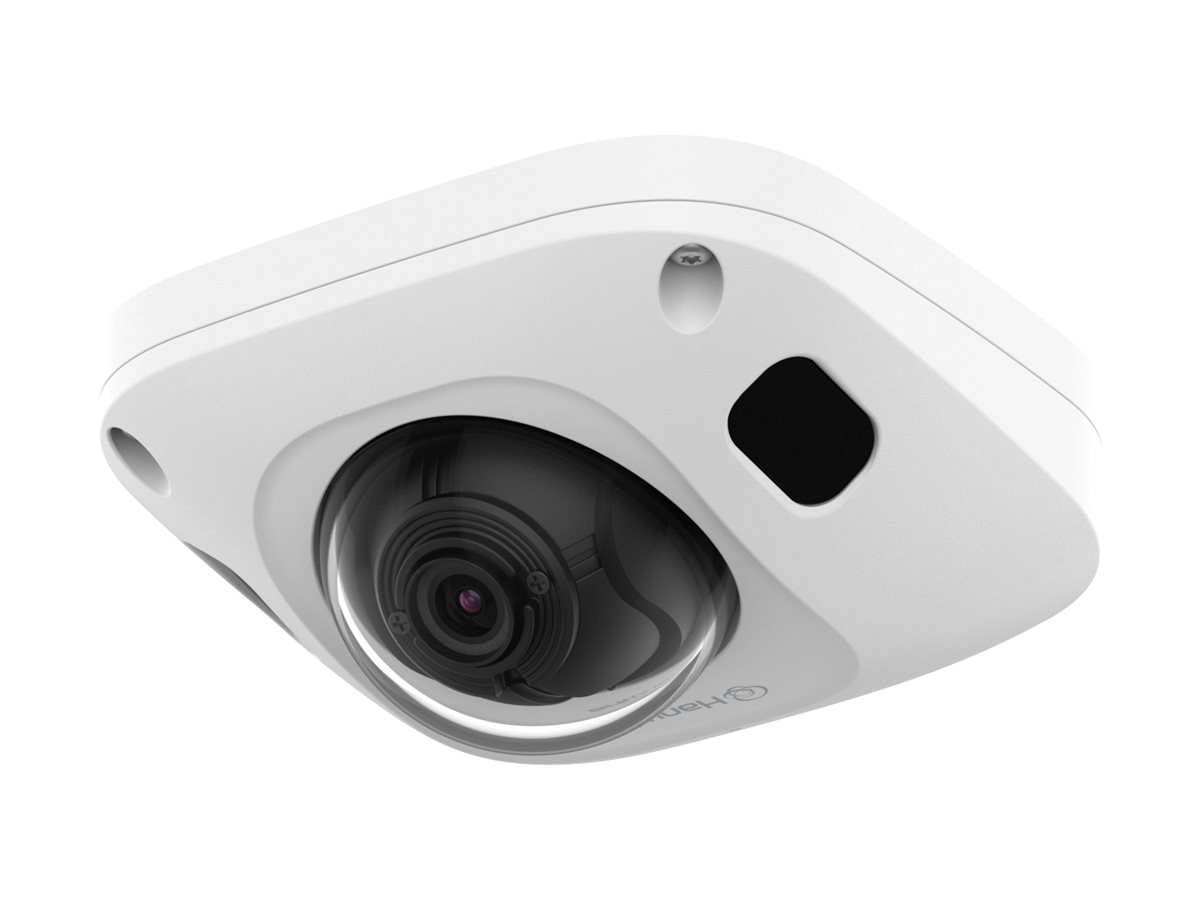

Hanwha Vision T TNV-C8014RM
- Network surveillance camera
- pan / tilt / roll
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed iris
- fixed focal
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $889.00 |
| Mfr Part #: | TNV-C8014RM |
| SHI Part #: | 49808303 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision T TNV-C8014RM - Network surveillance camera - pan / tilt / roll - dome - color (Day&Night) - 5 MP - 2592 x 1944 - fixed iris - fixed focal - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $889.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 5.5 cm |
| Dimensions & Weight / Weight | 466 g |
| Dimensions & Weight / Width | 10.6 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Features | 60Hz frame rate, -90° / +90° rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Clear HDR, WiseNR II, Samsung Super Noise Reduction (SSNR) V, Image Stabilization, Defog, dynamic privacy masking, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, image flip, image mirror, Hallway View, Object Detection, Person Detection, clothes color detection, vehicle color recognition, Best Shot Selector (BSS), Virtual Line detection, Line Crossing Detection, Directional Detection, loitering detection, intrusion detection, entrance / exit detection, Tampering detection, shock detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, aluminum housing, hard-coated dome, Electronic Image Stabilizer (EIS), heater, AE(Automative Exposure) control system, Vehicle Detection, white balance, Defocus Detection, alarm notifications |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - pan / tilt / roll |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 10.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.5 cm |
| Weight | 466 g |
| Width | 10.6 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 129 |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 100 |
| Lens Iris | F/1.6 fixed iris |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 73 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, EN 50121-4, EN 50121-3-2, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC 62236-3-2, IEC 62236-4, EN 50498, EN 50155, IEC/EN61373, EN 45545-2 HL3, EN 62676-4 |
| Panning | |
| Range (degree) | -5 to +5 |
| Power | |
| Power Device | 7.2 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
