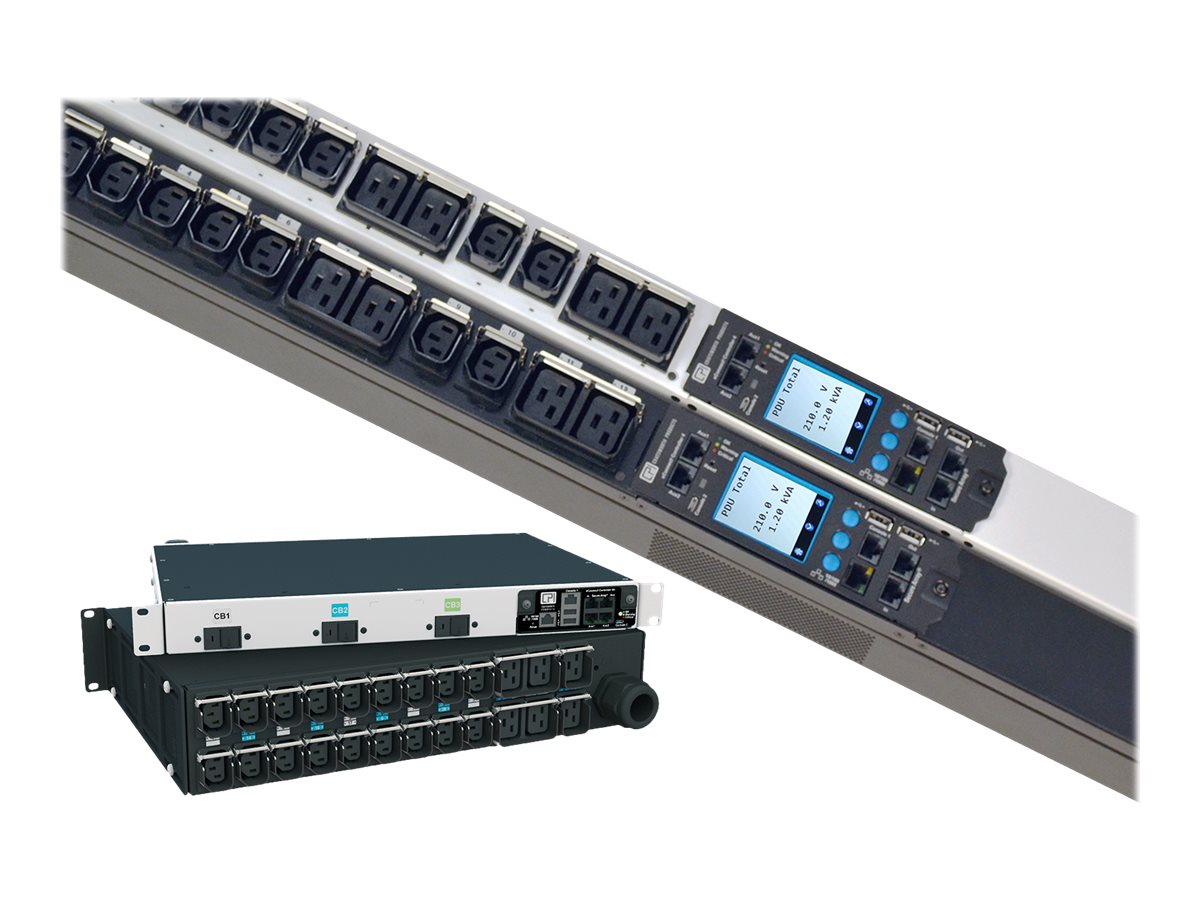

CPI Switched Pro eConnect PDU EA-6275-E
MSRP$2,001.92
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched Pro eConnect PDU EA-6275-E
- Power distribution unit (rack-mountable)
- AC 120 V
- 2.9 kW
- 1-phase
- Ethernet 10/100/1000, USB, serial
- input: NEMA L5-30P
- output connectors: 12 (12 x NEMA 5-20)
- 1U
- 3 m cord
- North America
- glacier white
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,001.92 |
| Mfr Part #: | EA-6275-E |
| SHI Part #: | 49742389 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect PDU EA-6275-E - Power distribution unit (rack-mountable) - AC 120 V - 2.9 kW - 1-phase - Ethernet 10/100/1000, USB, serial - input: NEMA L5-30P - output connectors: 12 (12 x NEMA 5-20) - 1U - 3 m cord - North America - glacier white - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $2,001.92 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.48 cm |
| Dimensions & Weight / Height | 4.369 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 43.18 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 30.48 cm |
| Height | 4.369 cm |
| Weight | 8.2 kg |
| Width | 43.18 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.2 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL 489, IEC 62368, FCC Part 15 A, EN55022, RoHS, UL, cUL, NEMKO |
| Features | Password security, LDAP support, RADIUS support, horizontal orientation, power LED status, low-profile design, indoor use, LCD display, Secure Array technology, vertical orientation, voltage monitoring, current meter, power measuring, firmware upgradable, thermal protection, humidity monitoring, thermal monitoring, grounded, power factor meter, locking outlets, individually switchable sockets, bistable latching relays |
| Included Accessories | 2 x toolless mounting buttons, grounding kit cable |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, CLI, HTTPS, RADIUS, LDAP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 2.9 kW |
| Power Output Connectors Details | 12 x power NEMA 5-20 |
