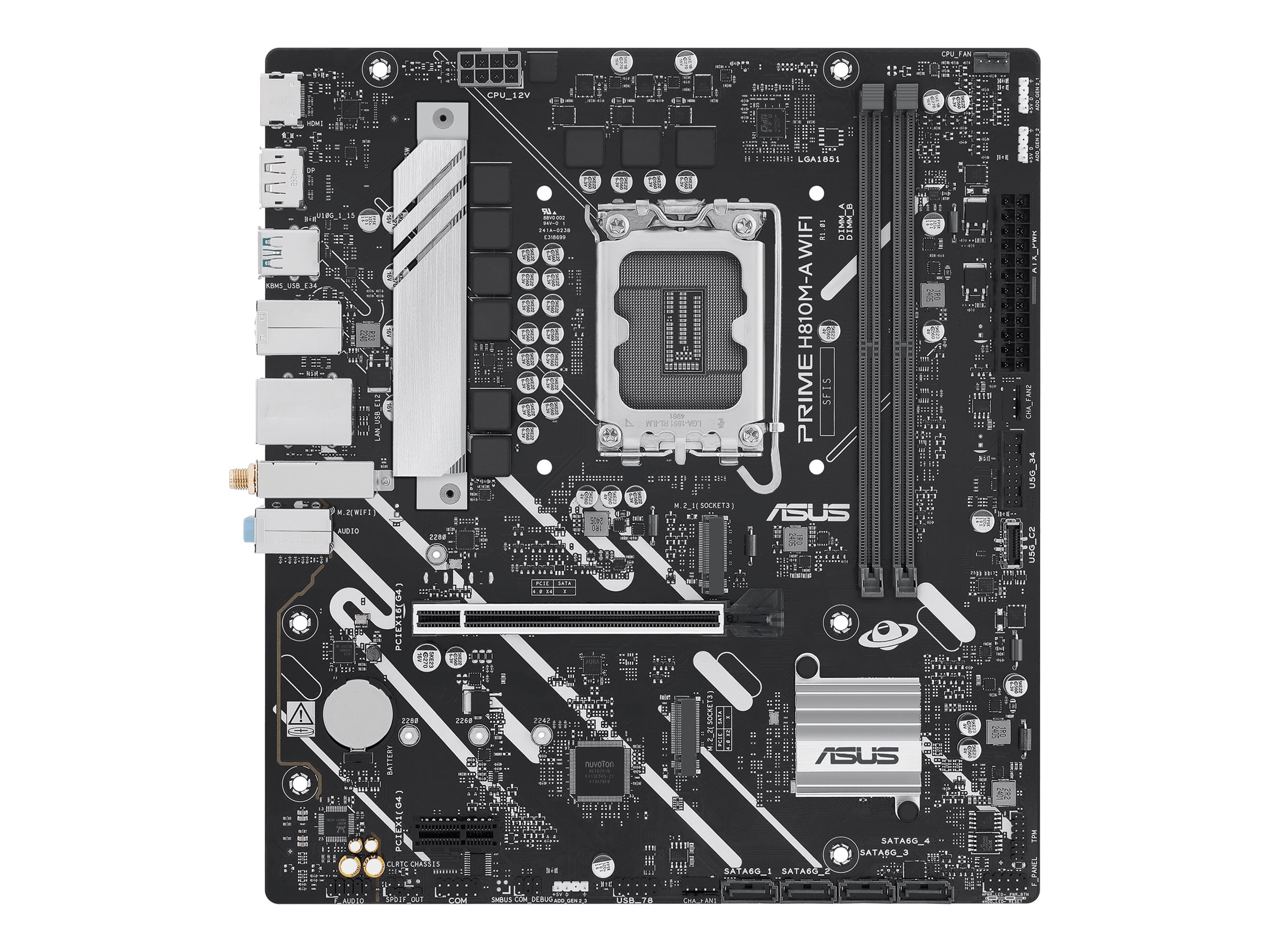

ASUS PRIME H810M-A WIFI-CSM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASUS PRIME H810M-A WIFI-CSM
- Motherboard
- micro ATX
- LGA1851 Socket
- H810 Chipset
- USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
- Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PRIME H810M-A WIFI-CSM |
| SHI Part #: | 49694646 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME H810M-A WIFI-CSM - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $129.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.2 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel H810 |
| Mainboard / Processor Socket | LGA1851 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | ASUS EFI BIOS, ASUS EZ Flash, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP) II, Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, 6+1+1+1 Phase Power Design, ASUS EZ DIY, chipset heatsink |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel H810 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1851 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 22.2 cm |
| Included Accessories | IO shield, M.2 screw package, ASUS Wi-Fi moving antenna, ACC Express Activation Key Card |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS GlideX, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 7200 MT/s, 6400 MT/s |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Technology | DDR5 |
