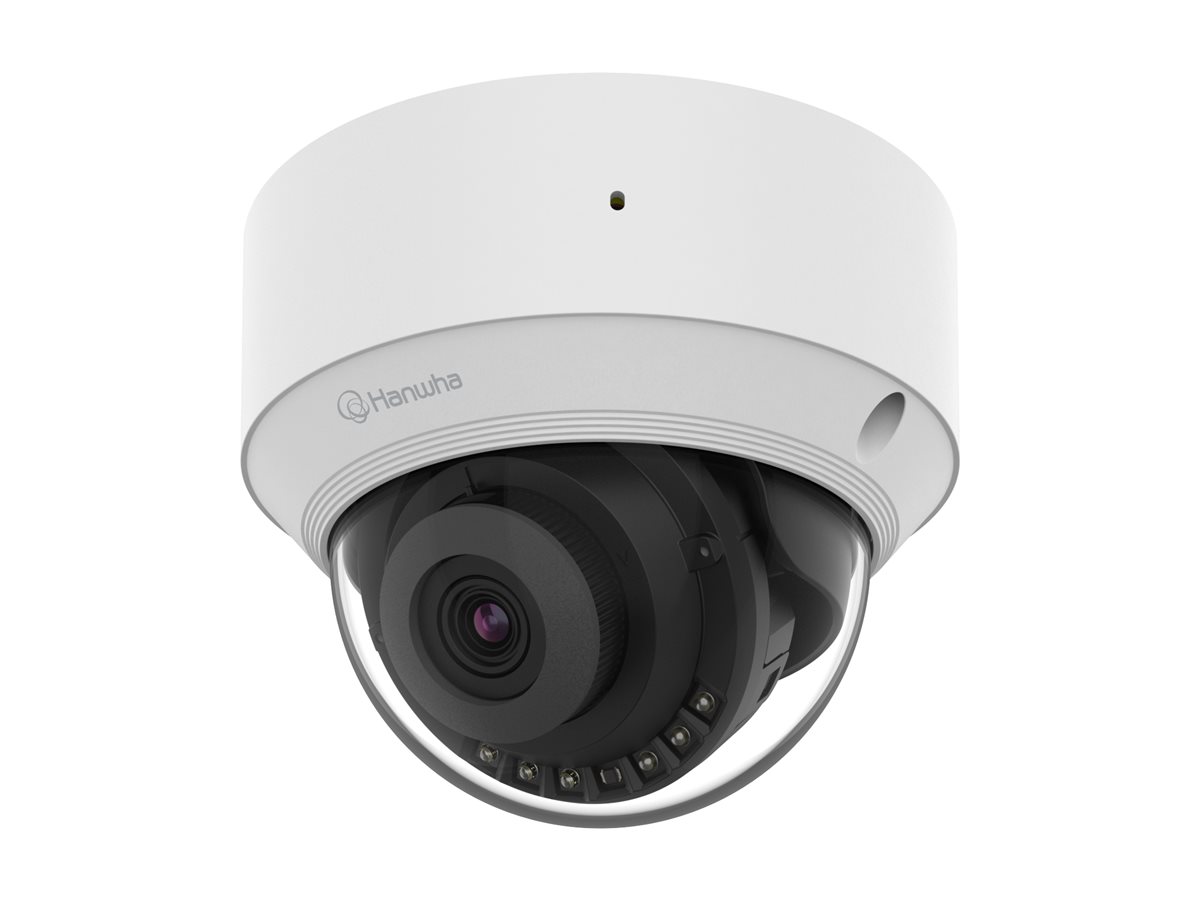

Hanwha Vision QND-C8023R
MSRP$640.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision QND-C8023R
- Network surveillance camera
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- M12 mount
- fixed iris
- fixed focal
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $640.00 |
| Mfr Part #: | QND-C8023R |
| SHI Part #: | 49682769 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision QND-C8023R - Network surveillance camera - dome - color (Day&Night) - 5 MP - 2592 x 1944 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $640.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11 cm |
| Dimensions & Weight / Height | 9 cm |
| Dimensions & Weight / Weight | 317 g |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Features | AI Analytics, Object Detection, Person Detection, vehicle type classification, Virtual Line detection, entrance / exit detection, intrusion detection, loitering detection, clothes color detection, vehicle color recognition, dynamic privacy masking, 0° / 355° rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), Hallway View, Defocus Detection, tamper-detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, Handover, notification picture to E-mail, notification picture to FTP, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, hard-coated dome |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 11 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9 cm |
| Weight | 317 g |
| Width | 11 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 102 |
| Focal Length | 4 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 80 |
| Lens Iris | F/1.6 fixed iris |
| Min Focus Distance | 50 cm |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 59 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, UL 62368-1, IEC/EN 62471, IEC/EN 63000, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9835, CAN/CSA-C22.2 No. 62368-1 |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 8.1 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 75 |
