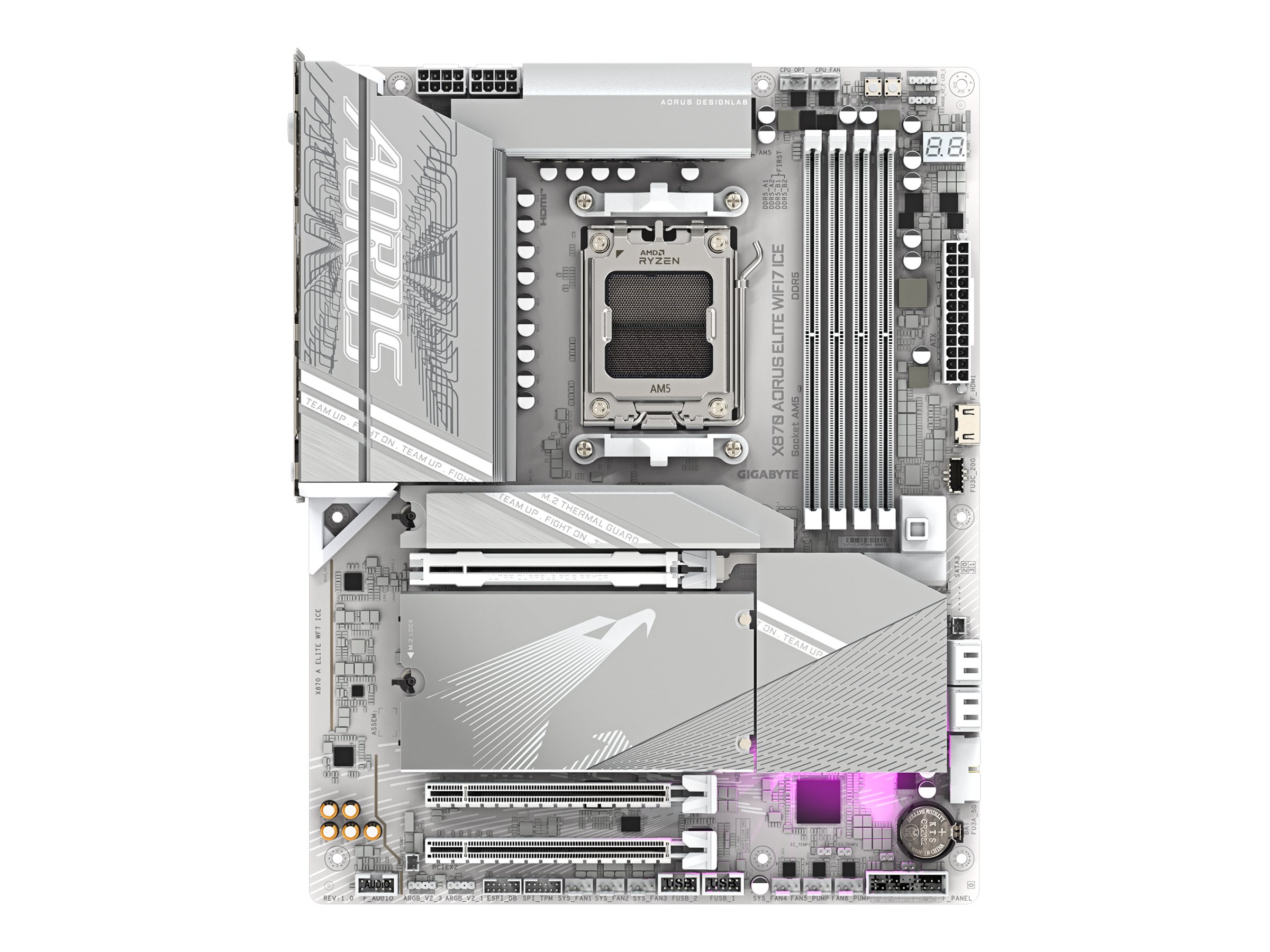

AORUS X870 ELITE WIFI7 ICE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
AORUS X870 ELITE WIFI7 ICE
- Motherboard
- ATX
- Socket AM5
- AMD X870 Chipset
- USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2
- 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | X870 AORUS ELITE WIFI7 ICE |
| SHI Part #: | 49616839 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | GIGABYTE |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | AORUS X870 ELITE WIFI7 ICE - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | GIGABYTE |
| MSRP | $319.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | GIGABYTE |
| Mainboard / Chipset Type | AMD X870 |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | Reset button, power button, Q-Flash, Q-Flash Plus, 16+2+2 Phase Power Design, 6 Layer PCB, AORUS AI SNATCH, EZ Debug LED, GIGABYTE Smart Fan 6, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 heatsink, M.2 Thermal Guard Ext., M.2 Thermal Guard L, metal backplate, PCIe EZ Latch Plus, RGB FUSION, Ultra Durable PCIe Armor, VRM Thermal Armor Advanced, WIFI EZ-Plug, 2x Copper PCB |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| General | |
| Chipset Type | AMD X870 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Depth | 24.4 cm |
| Software Included | HWiNFO, GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 4200 MHz (O.C.), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR5 |
