Raritan PX3-5039V-E2
MSRP$3,162.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

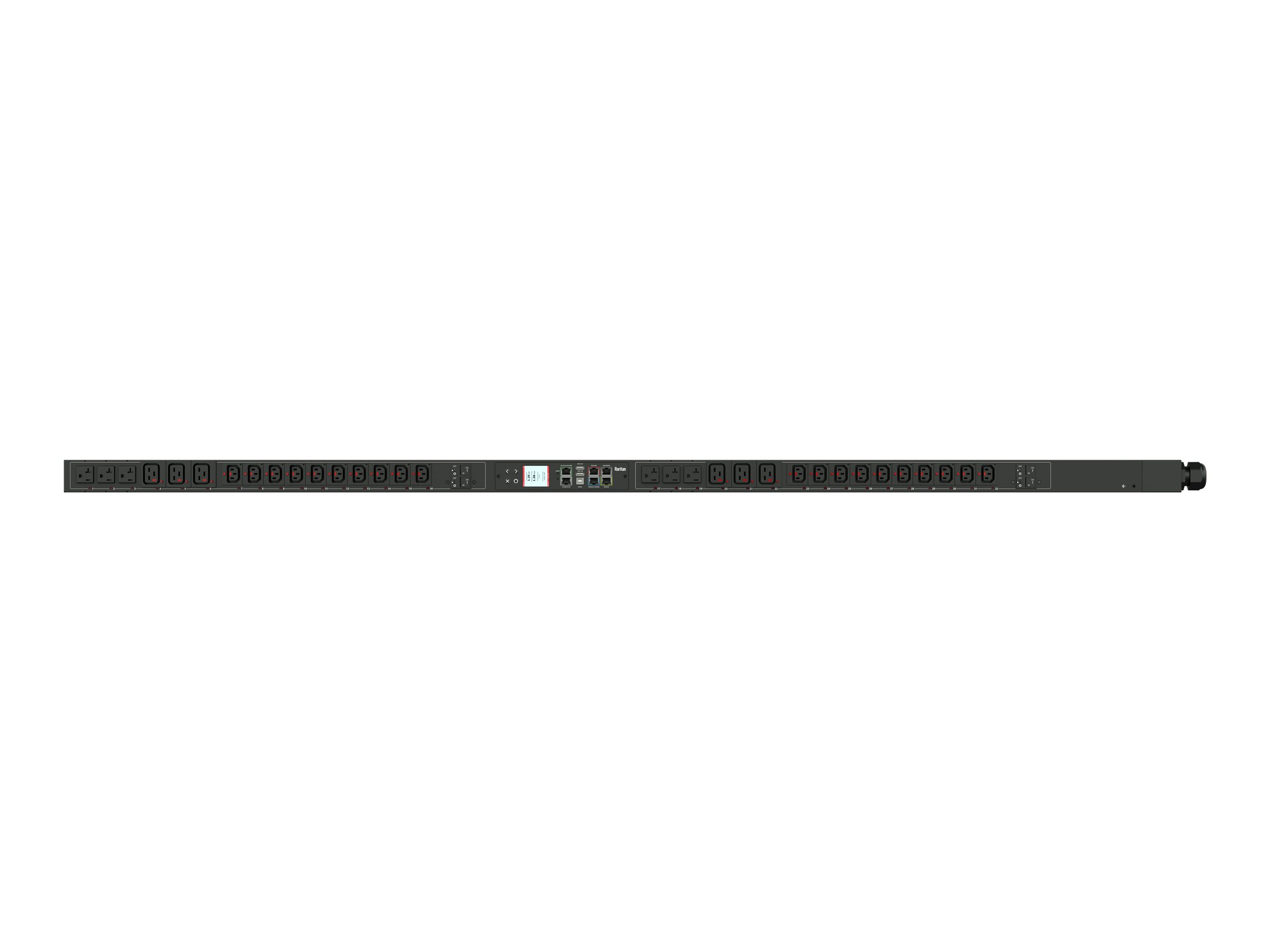

Raritan PX3-5039V-E2
- Power distribution unit (rack-mountable)
- AC 208 V
- 5000 VA
- 1-phase
- Ethernet 10/100/1000, Ethernet 10/100, USB, RS-232
- input: NEMA L14-30P
- output connectors: 32 (20 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-20R)
- 0U
- 3 m cord
- blue
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,162.00 |
| Mfr Part #: | PX3-5039V-E2K2 |
| SHI Part #: | 49424435 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5039V-E2 - Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100/1000, Ethernet 10/100, USB, RS-232 - input: NEMA L14-30P - output connectors: 32 (20 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-20R) - 0U - 3 m cord - blue |
| Manufacturer | Legrand |
| MSRP | $3,162.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.1 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 7.8 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Blue |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 32 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.1 cm |
| Height | 178 cm |
| Weight | 7.8 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 207 cm |
| Shipping Weight | 10.1 kg |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Blue |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cULus, IEC 62053-21, ISO 62053-21, UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Vertical orientation, removable controller, active power meter, current meter, energy meter, power factor meter, real power meter, voltage meter, remote outlet switching, metering per input line, metering per branch circuit breaker, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, locking C13 connector, locking C19 connector, 2 x LEGBX66-20 overload protection, switched, vertical orientation, overcurrent protection, metering per output receptacle, LED indicators, replaceable controller, power cable IP44 compliant, Raritan SecureLock Ready, splash-proof plug |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, Ethernet 10/100, USB, RS-232 |
| Remote Management Protocol | JSON-RPC, SSH, Telnet, Modbus, SNMP 3, SNMP 2, HTTP, HTTPS, SMTP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L14-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.6 kVA at 190 V, 5 kVA at 208 V |
| Power Output Connectors Details |
|
