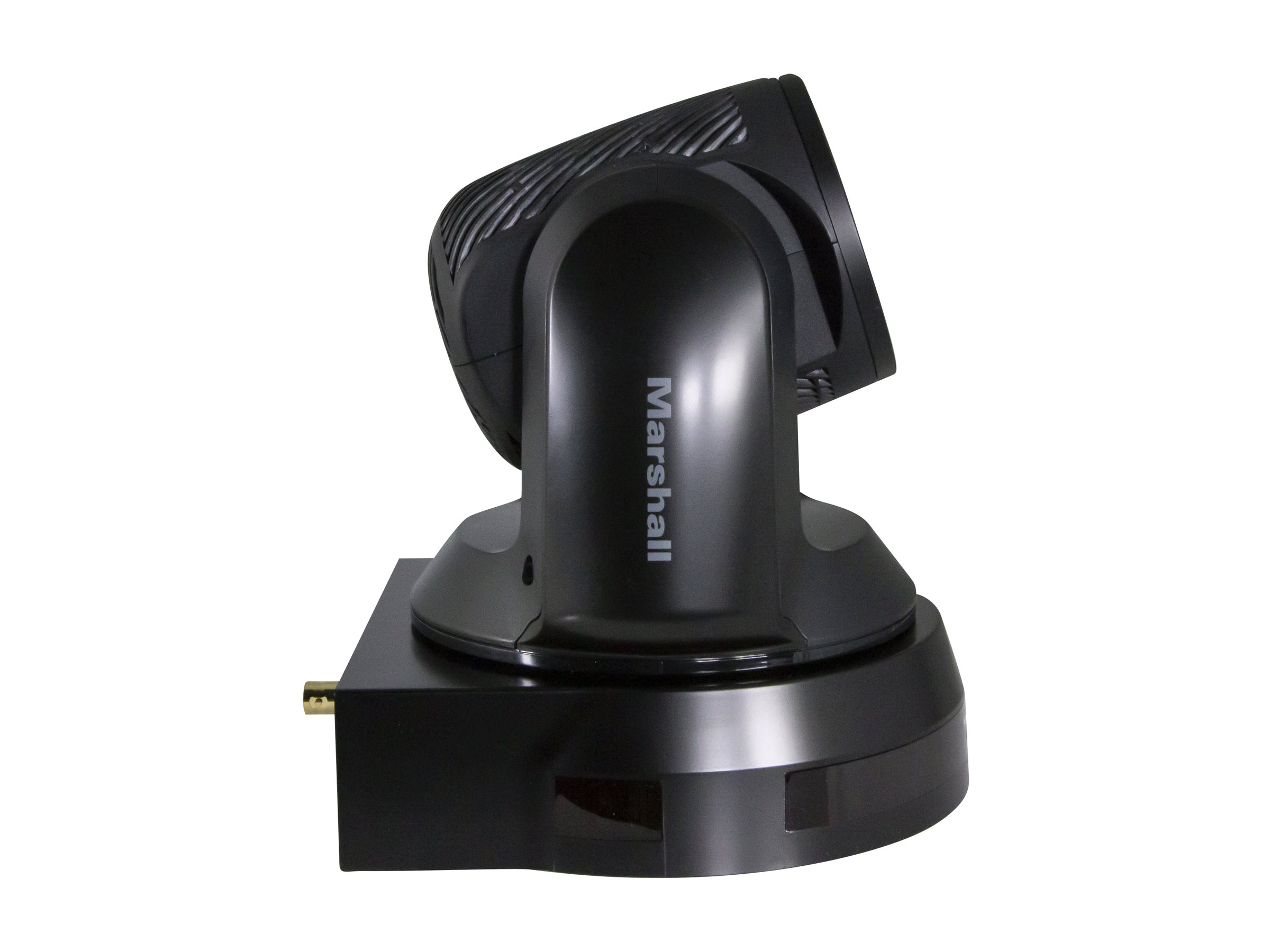

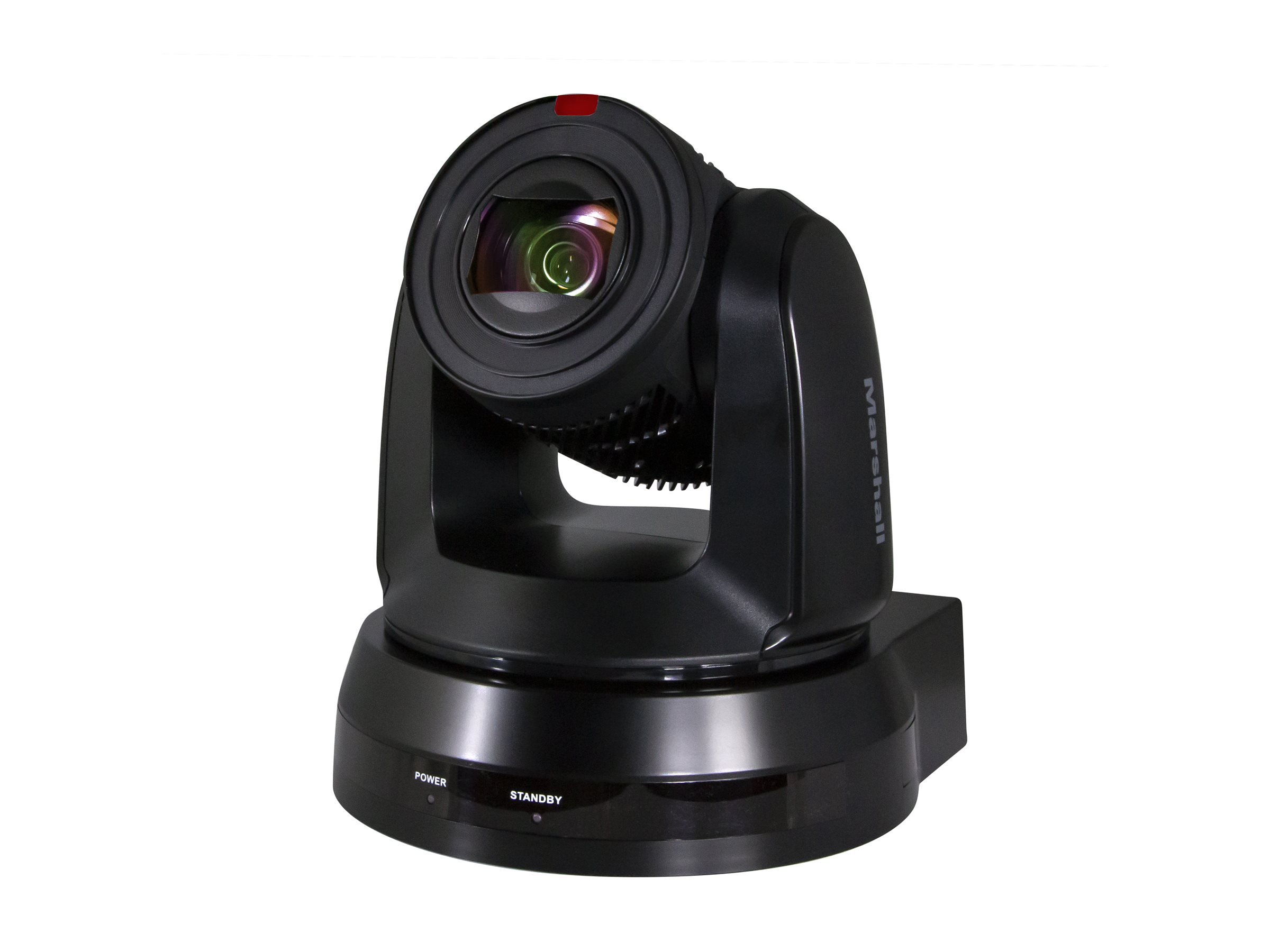

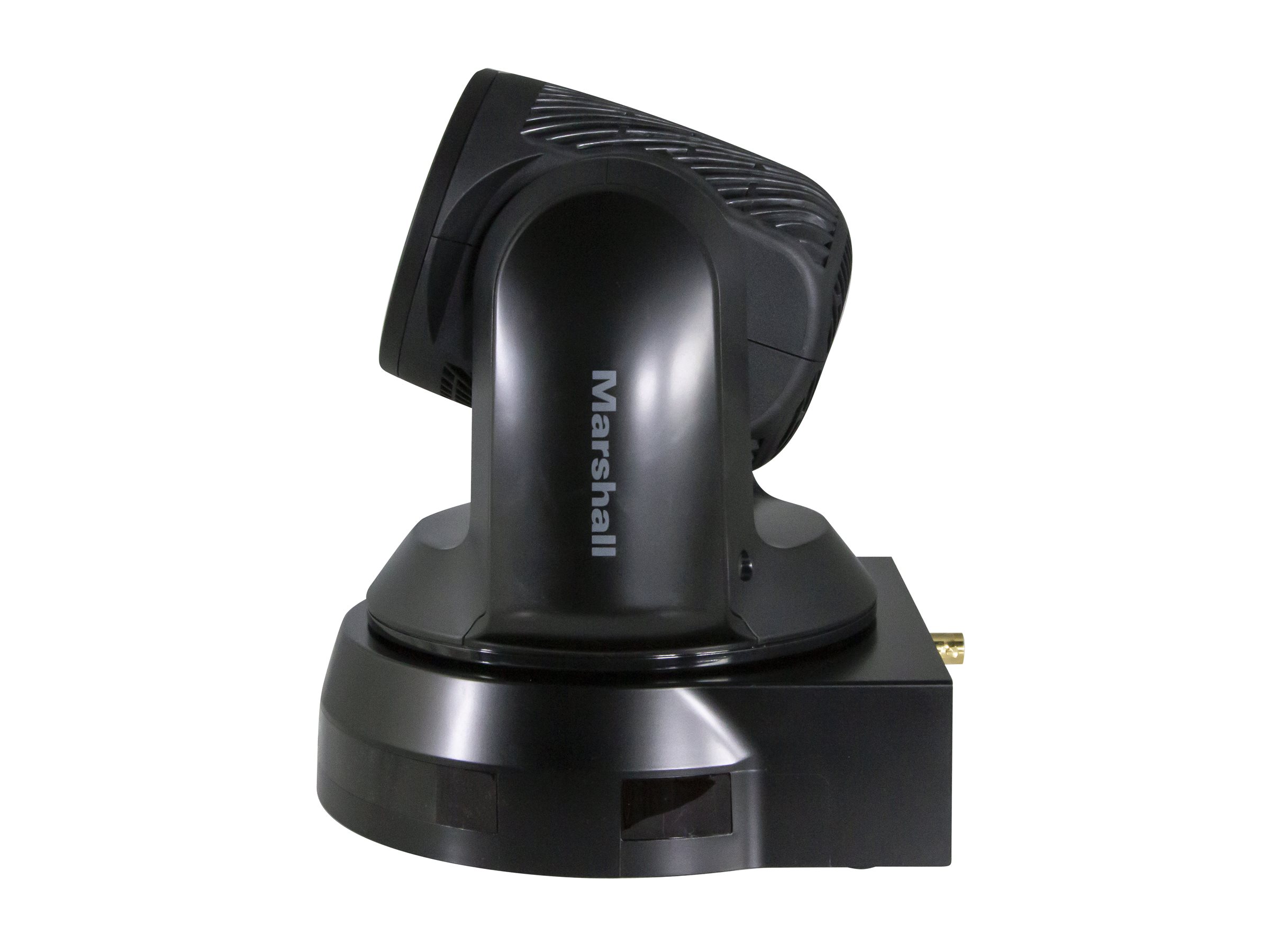

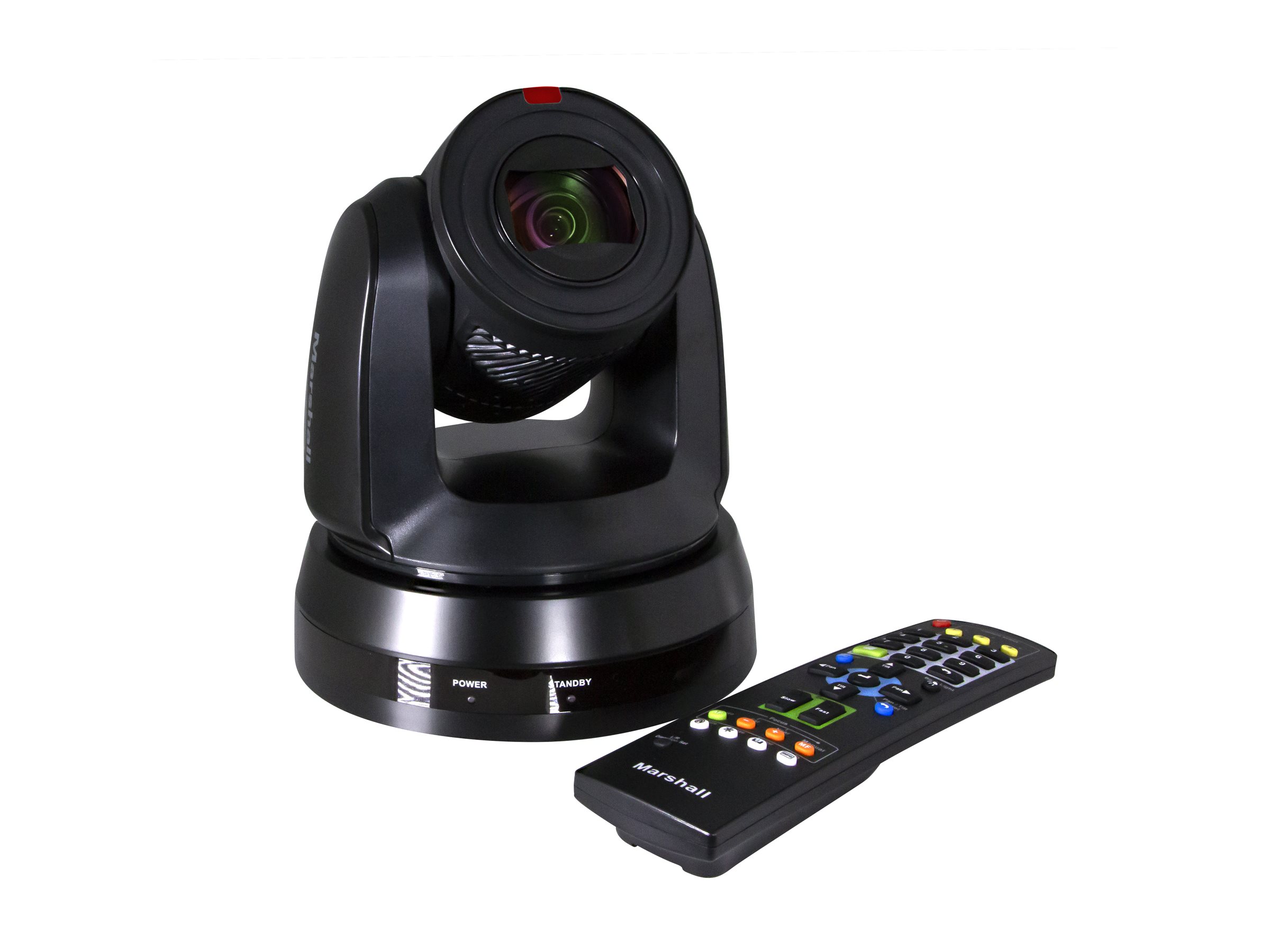

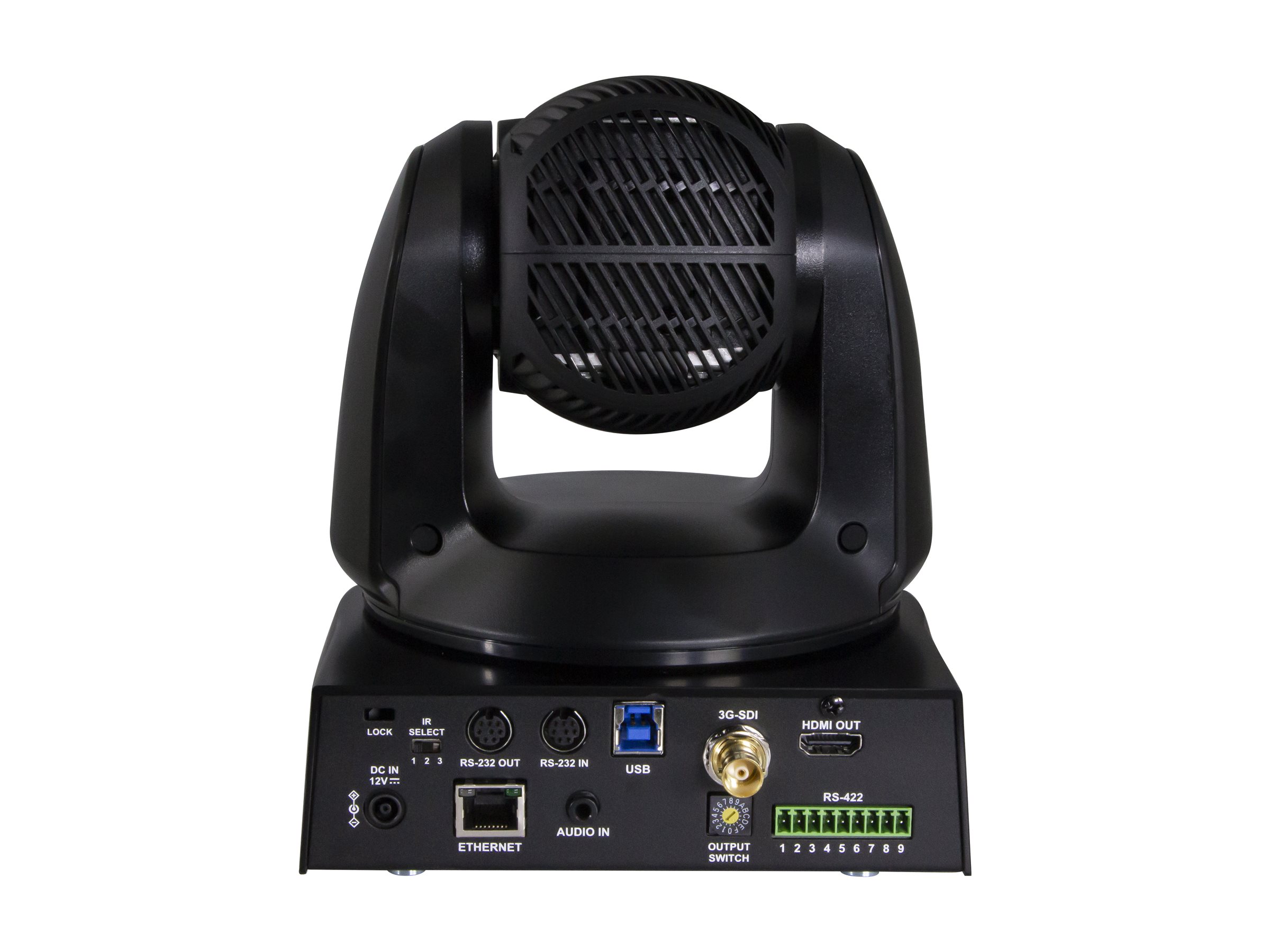

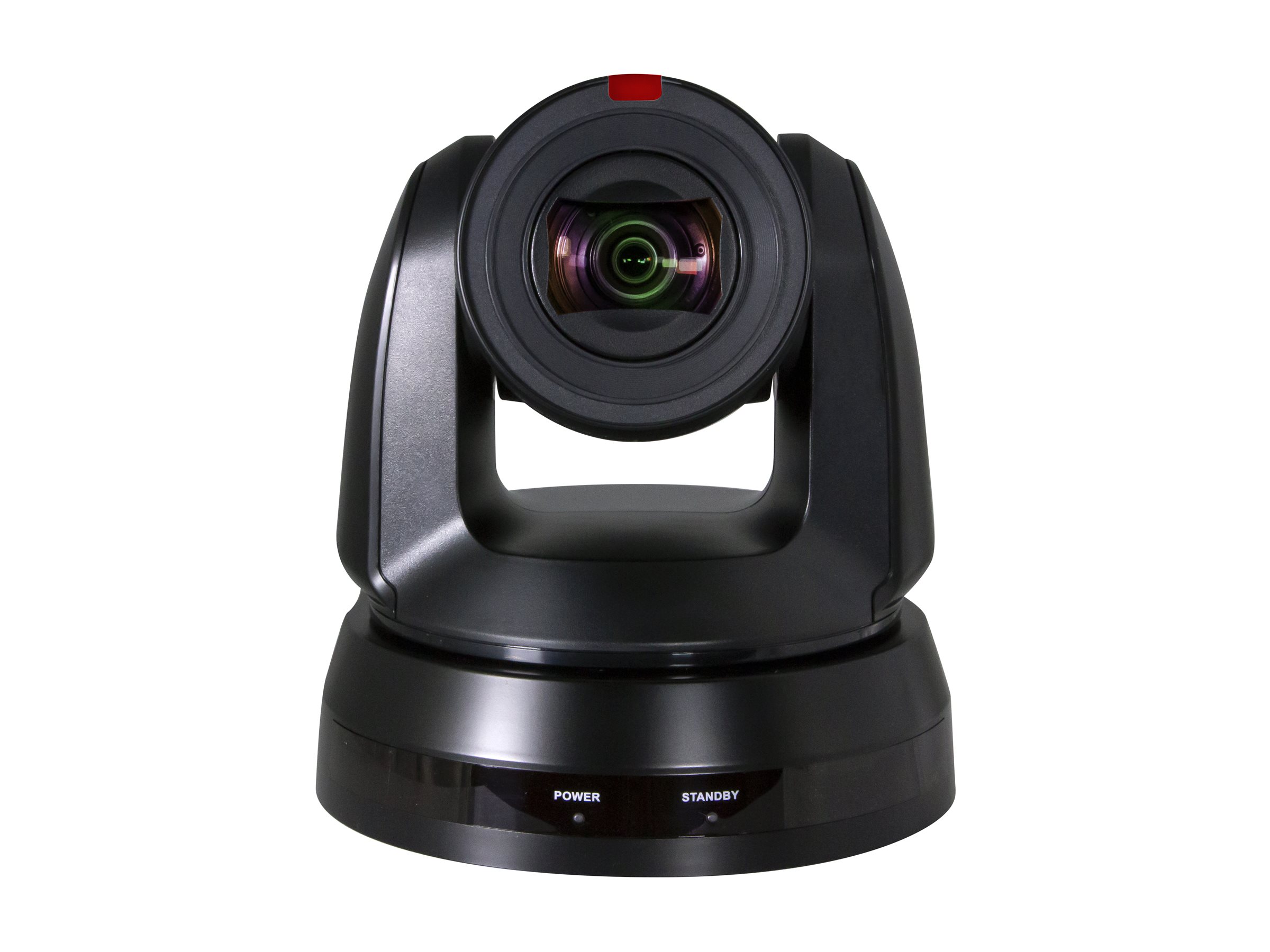

Marshall CV630-BI - Network surveillance camera
MSRP$2,939.95
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Marshall CV630-BI - Network surveillance camera
- PTZ
- color
- 8.3 MP
- 3840 x 2160
- manual iris
- motorized
- audio
- HDMI, 3G-SDI
- LAN
- USB 3.0
- H.264, H.265, MJPEG, MPEG-TS, HEVC
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,939.95 |
| Mfr Part #: | CV630-BI |
| SHI Part #: | 49045092 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Marshall Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Marshall CV630-BI - Network surveillance camera - PTZ - color - 8.3 MP - 3840 x 2160 - manual iris - motorized - audio - HDMI, 3G-SDI - LAN - USB 3.0 - H.264, H.265, MJPEG, MPEG-TS, HEVC - DC 12 V / PoE Plus |
| Manufacturer | Marshall Electronics |
| MSRP | $2,939.95 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.6 cm |
| Dimensions & Weight / Height | 19 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 17.4 cm |
| Header / Brand | Marshall |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-TS, HEVC |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Features | Tally light, Wide Dynamic Range (WDR), 3D Noise Reduction Technology, image flip, FreeD protocol support, PELCO D protocol support, ONVIF support, auto gain control, manual gain control, manual white balance, auto white balance, auto exposure control, manual exposure, 802.1x authentication, VISCA over IP, colour saturation control, hue control, manual brightness adjustment, 2D Noise Reduction Technology, gamma control, sharpness control |
| Max Digital Video Resolution | 3840 x 2160 |
| Type | Color - pan / tilt / zoom |
| Video Capture |
|
| Video Modes | 4K UHD (3840 x 2160), 2160p, 1080i, 1080p, 720p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC, G.711 |
| Audio Support | Yes: one-way audio capability |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Depth | 18.6 cm |
| Device Type | Network surveillance camera |
| Height | 19 cm |
| Weight | 1.9 kg |
| Width | 17.4 cm |
| Image Sensor | |
| Type | 8.3 MP CMOS 1/2.5" |
| Interfaces | |
| Computer Interface | USB 3.0 |
| Control Interface | RS-422, RS-232 |
| Network Interface | LAN |
| Network Protocols | HTTP, HTTPS, RTSP, RTMP, SRT, RTMPS, DHCP, SNTP, CGI, UDP, RTP, DNS, IPv4, NTP, TCP |
| Video | HDMI, 3G-SDI |
| Lens Construction | |
| Focal Length | 4.8 mm - 120.5 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 68 |
| Lens Iris | F/1.6-18 manual iris |
| Optical Zoom | 25 x |
| Type | Motorized zoom |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.3at, IEEE 802.1x |
| Included Accessories | Remote control, 2 metal plates, screws |
| Panning | |
| Range (degree) | 340 |
| Power | |
| Power Device | Power adapter - external 18 Watt |
| Power Requirements | DC 12 V / PoE Plus |
| Tilting | |
| Range (degree) | 120 |
