Vivotek V Series FD9389-EHV-V3
MSRP$682.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

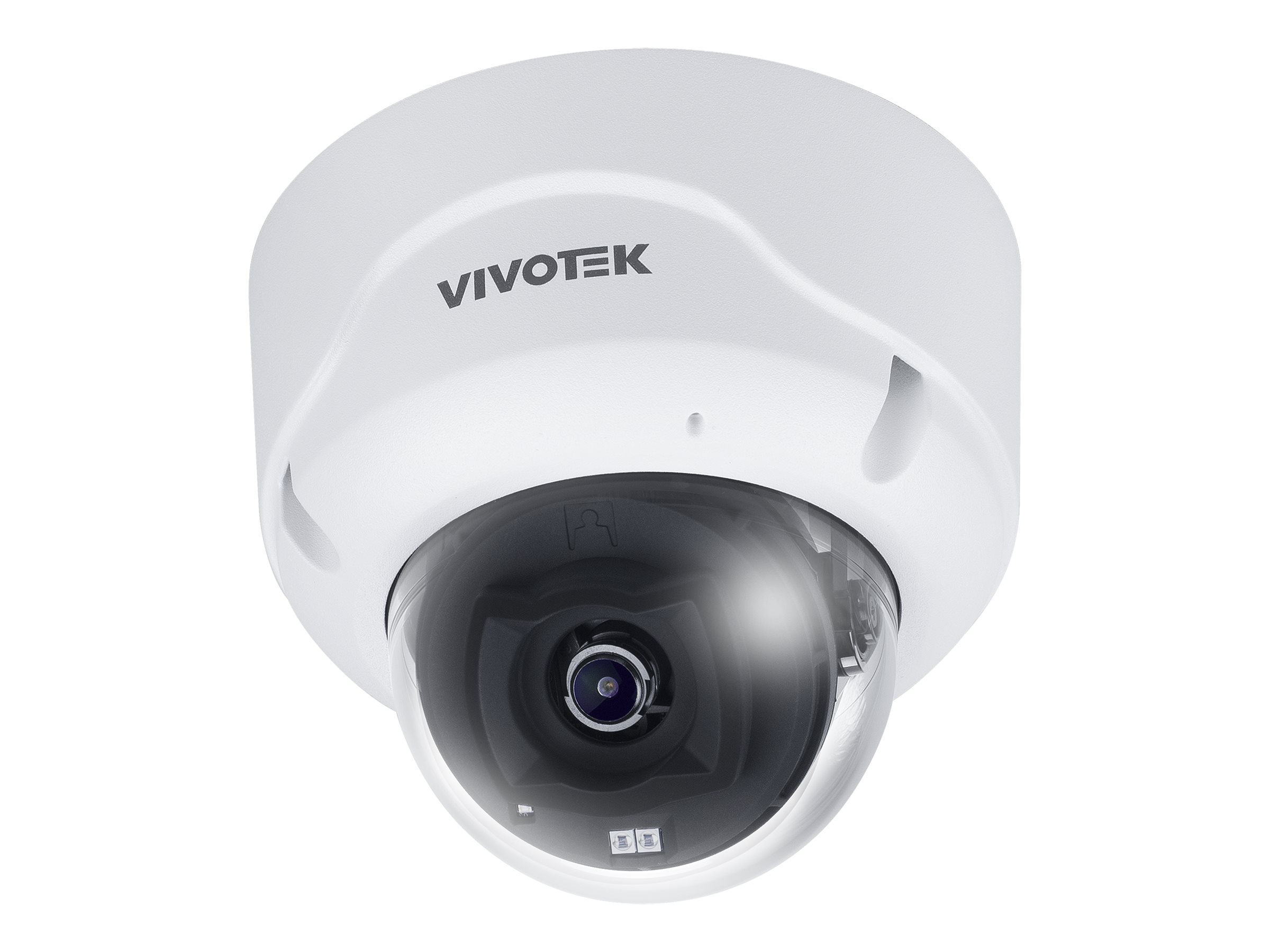

Vivotek V Series FD9389-EHV-V3
- Network panoramic camera
- dome
- outdoor
- vandal / corrosion / weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- fixed iris
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $682.00 |
| Mfr Part #: | FD9389-EHV-V3 |
| SHI Part #: | 48995131 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Vivotek V Series FD9389-EHV-V3 - Network panoramic camera - dome - outdoor - vandal / corrosion / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | Vivotek |
| MSRP | $682.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.4 cm |
| Dimensions & Weight / Height | 11.6 cm |
| Dimensions & Weight / Weight | 960 g |
| Dimensions & Weight / Width | 13.4 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 2560 x 1920 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | 802.1x authentication, Wide Dynamic Range (WDR) Pro, ePTZ, Smart Stream III, Removable IR-Cut Filter, 3 video streams, bit rate control, image flip, image mirror, 120 dB dynamic range, 55dB signal-to-noise ratio, 3D digital noise reduction (DNR), AE speed adjustment, anti-overexposure, brightness control, contrast control, Defog, exposure control, gamma control, Pixel Calculator, Privacy Mask Function, saturation control, sharpness control, LED indicator, embedded SOC processor, Smart IR, 10 access users, digest authentication, HTTPs encryption, password protection, secure boot, signed firmware, user access log, user account management, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, motor vehicle detection, crowd detection, deep learning function, face detection, line-crossing detection, loitering detection, missing object detection, smart intrusion detection, Smart Motion Detection, Smart VCA, unattended object detection, alarm function, alarm notifications, Audio Detection, Camera Tampering Detection, e-mail alerts, shock detection, NAS-Ready, white balance, DORI coverage, 60.4m detection distance, 12m recognize distance, 6m identify distance, 24.1m observe distance, Highlight Compensation (HLC), Backlight Compensation (BLC), Gyroscopic Image Stabilizer, Smart IR III, TPM 2.0 module, AI-powered, 5m microphone pickup range |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | 4 |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal / corrosion / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -35 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, AAC-LC, MPEG 2 Audio |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 13.4 cm |
| Device Type | Network panoramic camera |
| Form Factor | Dome |
| Height | 11.6 cm |
| Weight | 960 g |
| Width | 13.4 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 135.2 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 103.4 |
| Lens Iris | F/2.0 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 75.3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, EN 55032 Class A, EN 55035, UKCA, BS EN 55032:2015+A11:2020 Class A, BS EN 55035:2017+A11:2020, FCC Part 15 B Class A, RCM, ICES-003 issue 7, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, UL 62368-1, CB, IEC/EN 62368-1, IEC/EN 62471, NEMA 250 Type 4X, IK10, IEC 60529, IP66, BIS, IS 13252, BSMI, EN 62676-4 |
| Included Accessories | Alignment sticker, screw pack, L-shaped wrench |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 12.4 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Software Included | Trend Micro IoT Security (3 years trial) |
| Tilting | |
| Range (degree) | 80 |
