Hanwha Vision PNM-C16083RQZ
MSRP$3,440.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

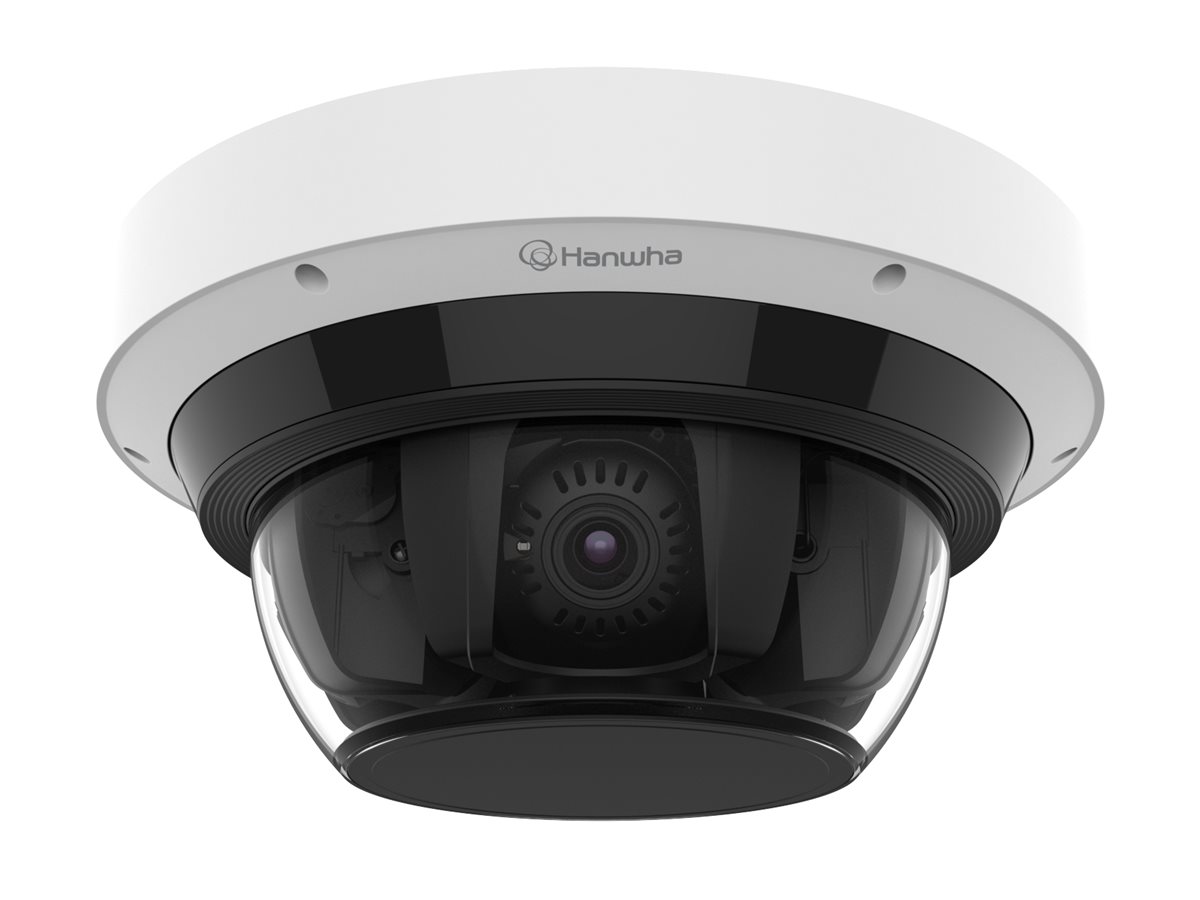

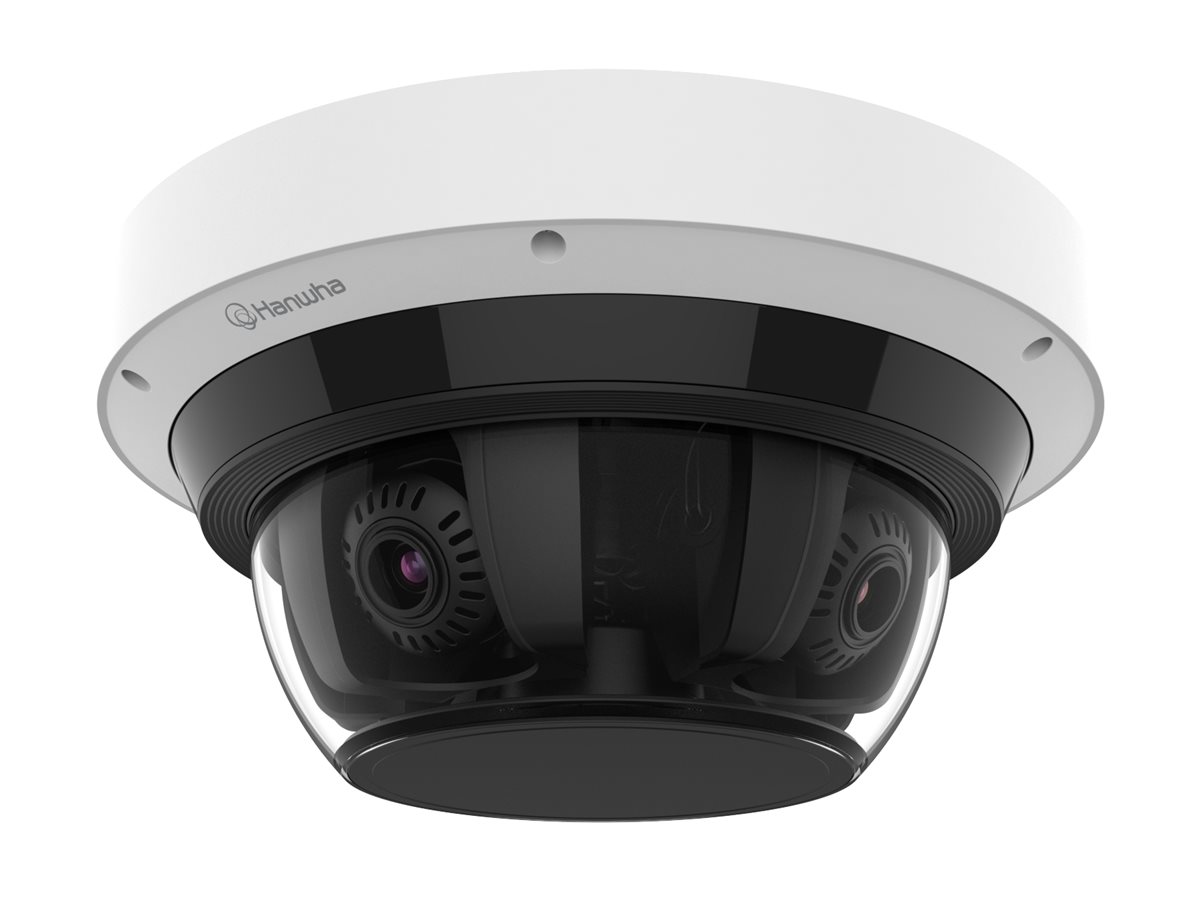

Hanwha Vision PNM-C16083RQZ
- Network surveillance camera
- multi-sensor
- dome
- color (Day&Night)
- 4 x 4 MP
- 2592 x 1520
- auto iris
- motorized
- audio
- GbE
- MJPEG, H.264, H.265
- High PoE Class 6
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,440.00 |
| Mfr Part #: | PNM-C16083RQZ |
| SHI Part #: | 48983604 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision PNM-C16083RQZ - Network surveillance camera - multi-sensor - dome - color (Day&Night) - 4 x 4 MP - 2592 x 1520 - auto iris - motorized - audio - GbE - MJPEG, H.264, H.265 - High PoE Class 6 |
| Manufacturer | HANWHA VISION |
| MSRP | $3,440.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.27 cm |
| Dimensions & Weight / Height | 14.59 cm |
| Dimensions & Weight / Weight | 4.4 kg |
| Dimensions & Weight / Width | 31.27 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1520, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Electronic pan/zoom (remote control), 90° image rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Privacy Mask Function, Lens Distortion Compensation (LDC), Hallway View, image flip, image mirror, anti-flicker, object classification, vehicle type classification, AI Analytics, AI Person Detection, vehicle analytics, vehicle color recognition, clothes color detection, Best Shot Selector (BSS), Virtual Line detection, Defocus Detection, tamper-detection, notification picture to FTP, notification picture to E-mail, trigger recording, Handover, Unicast Streaming, Multicast Streaming, IP address filtering, user access log, digest authentication, Trusted Platform Module (TPM), WiseStream II support, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, aluminum enclosure, hard-coated dome, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, 2 microSD card slots |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - multi-sensor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2, EAP-TLS, LEAP, PEAP, MSCHAPv2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 31.27 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 14.59 cm |
| Weight | 4.4 kg |
| Width | 31.27 cm |
| Image Sensor | |
| Type | 4 x 4 MP CMOS 4 x 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT, CDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 34 - 111 |
| Focal Length | 3.2 mm - 10.2 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 29 - 93 |
| Lens Iris | F/1.6-3.1 auto iris (P-Iris) |
| Min Focus Distance | 1.2 m |
| Optical Zoom | 3.2 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 17 - 53 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NDAA, IP66, IEEE 802.1x, PoE++, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC 60529, IEC 62262 IK09, NEMA 250 Type 4X |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 22 Watt |
| Power Requirements | High PoE Class 6 |
| Tilting | |
| Range (degree) | 30 to 90 |
