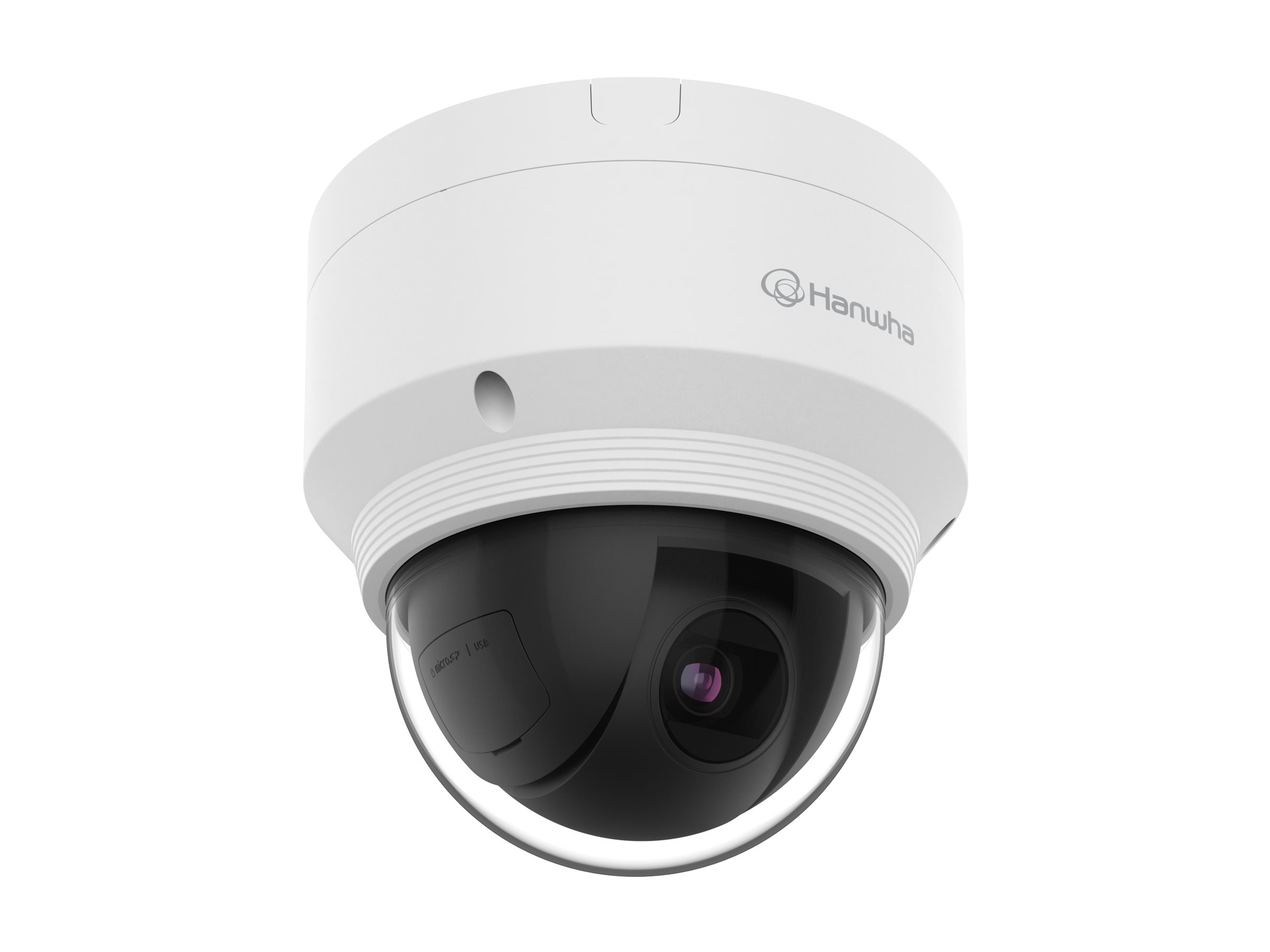

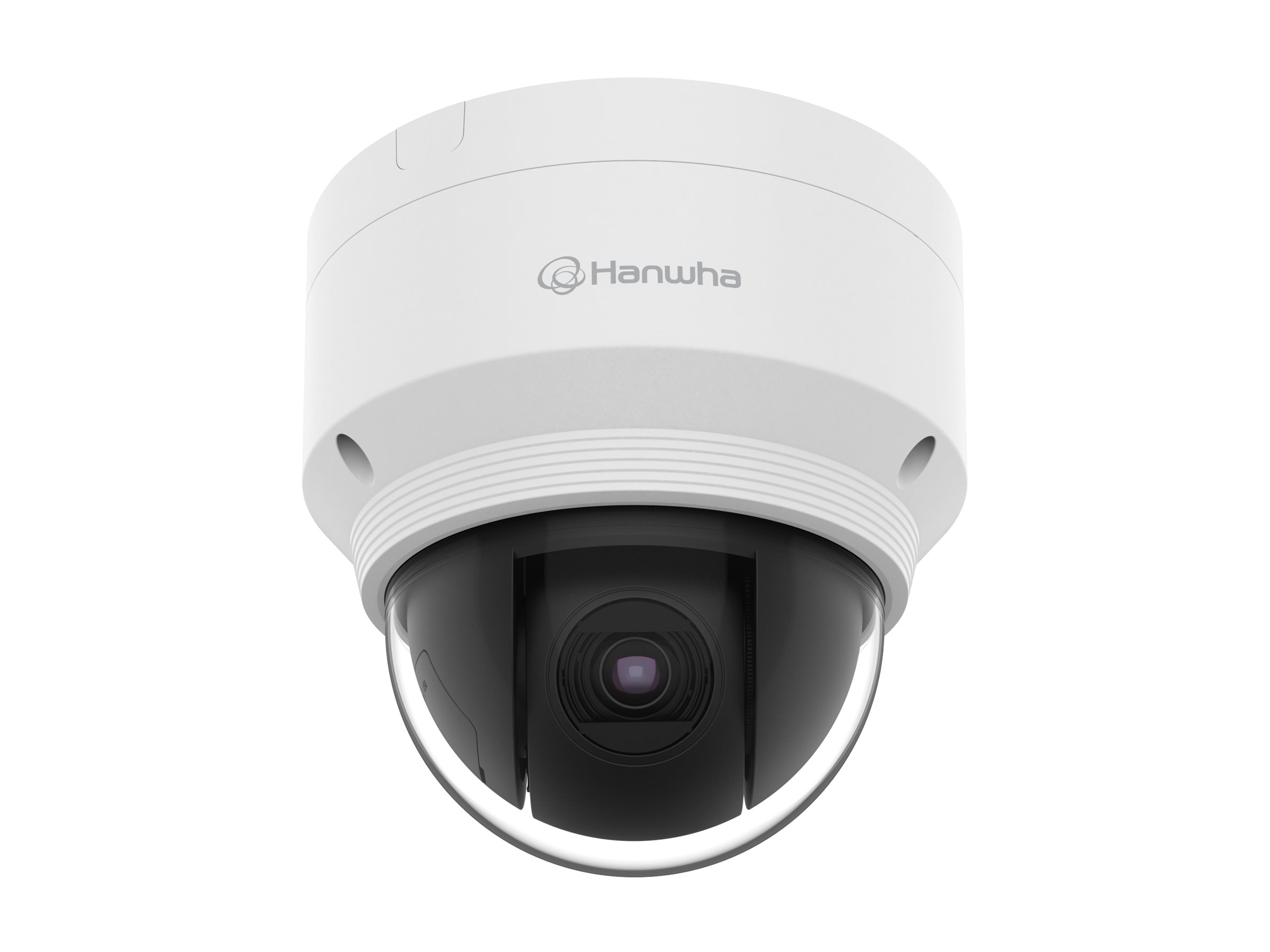

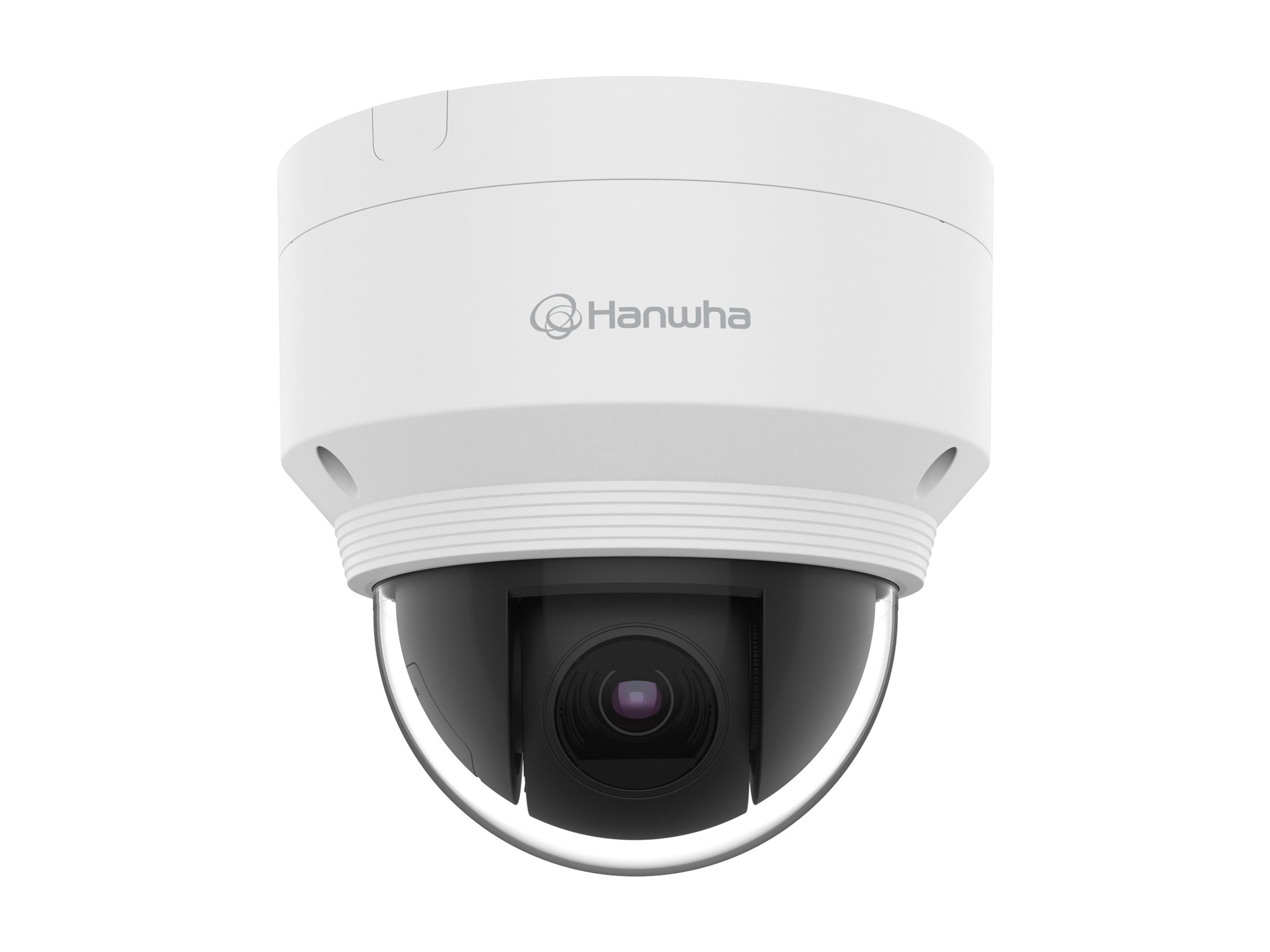

Hanwha Vision WiseNet X XNP-6120HW
MSRP$1,700.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet X XNP-6120HW
- Network surveillance camera
- PTZ
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- composite, USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,700.00 |
| Mfr Part #: | XNP-6120HW |
| SHI Part #: | 48748381 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNP-6120HW - Network surveillance camera - PTZ - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - composite, USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,700.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.15 cm |
| Dimensions & Weight / Height | 16.8 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 16.8 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | 300 preset positions, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), built-in gyroscope, Defog, Privacy Mask Function, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), electronic shutter, image flip, image mirror, direction detection, fog detection, face detection, appearing / disappearing detection, entrance / exit detection, loitering detection, Tampering detection, Virtual Line detection, Audio Detection, sound classification, alarm function, notification picture to E-mail, notification picture to FTP, auto tracking, Smart Codec, WiseStream II support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, digest authentication, IP address filtering, user access log, 802.1x authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, aluminum housing |
| Flash Memory | 256 MB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16.15 cm |
| Device Type | Network surveillance camera |
| Height | 16.8 cm |
| Weight | 1.9 kg |
| Width | 16.8 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, NTCIP, SUNAPI |
| Video | Composite video, USB |
| Lens Construction | |
| Focal Length | 5.2 mm - 62.4 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 5.3 - 54.58 |
| Lens Iris | F/1.6 (wide) / f/3.0 (telephoto) auto iris (DC) |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 12 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 3 - 32.19 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, IP66, IK10 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 350 |
| Power | |
| Power Device | 12 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | -5 to +185 |
| Speed (degree/sec) | Up to 350 |
