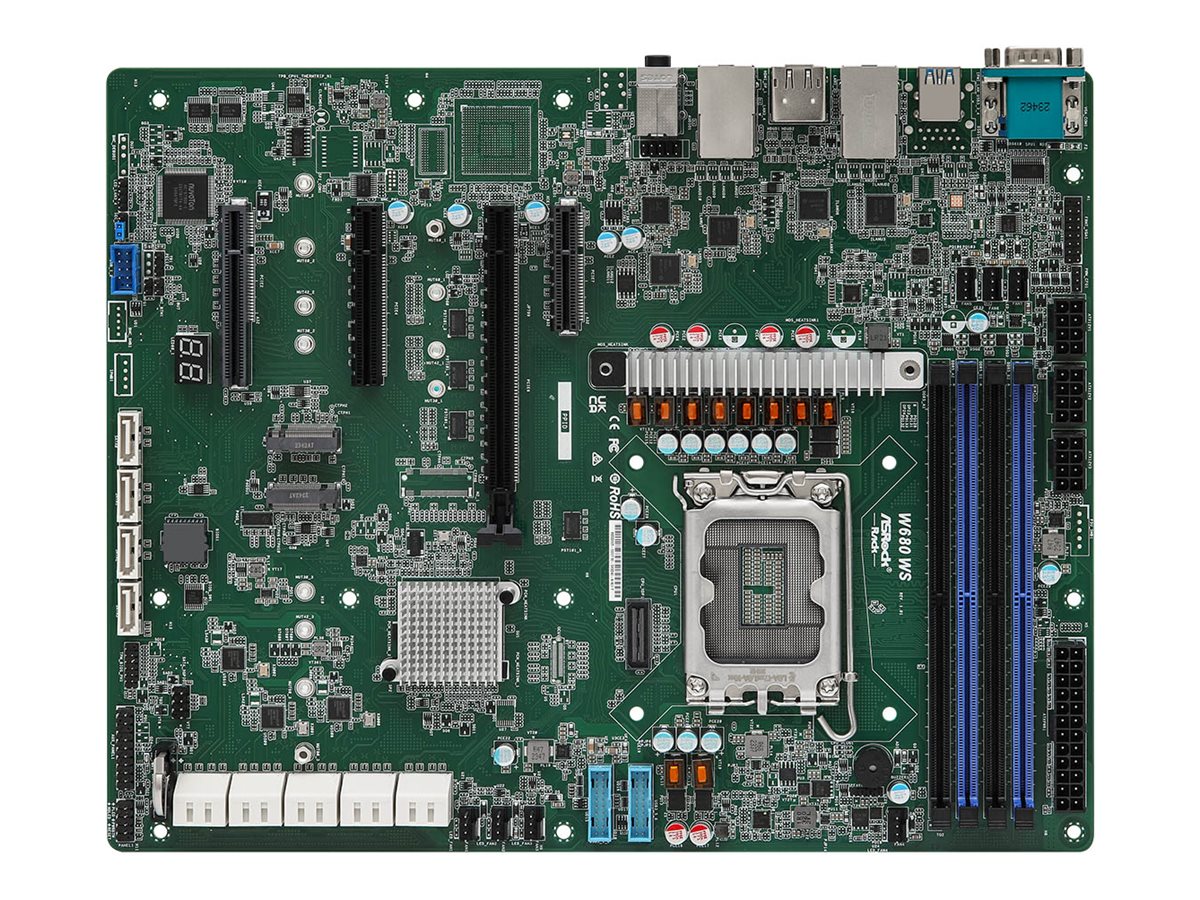

ASRock Rack W680 WS - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASRock Rack W680 WS - Motherboard
- ATX
- LGA1700 Socket
- W680 Chipset
- USB 3.2 Gen 1
- 4 x Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | W680 WS |
| SHI Part #: | 48725749 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack W680 WS - Motherboard - ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1 - 4 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand |
|
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | SPI BIOS flashing, ACPI 6.4 support, SMBIOS 2.8 support, UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Rack Instant Flash |
| Hardware Monitoring | Temperature detection, CPU core temperature, chassis fan tachometer, fan speed detection, system voltage |
| General | |
| Chipset Type | Intel W680 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 4 x Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 1 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Included Accessories | 2 x M.2 screws, IO shield |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 4400 MT/s, 4000 MT/s, 3600 MT/s (O.C.) |
| Features | Dual channel memory architecture |
| Max Size | 192 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR5 |
