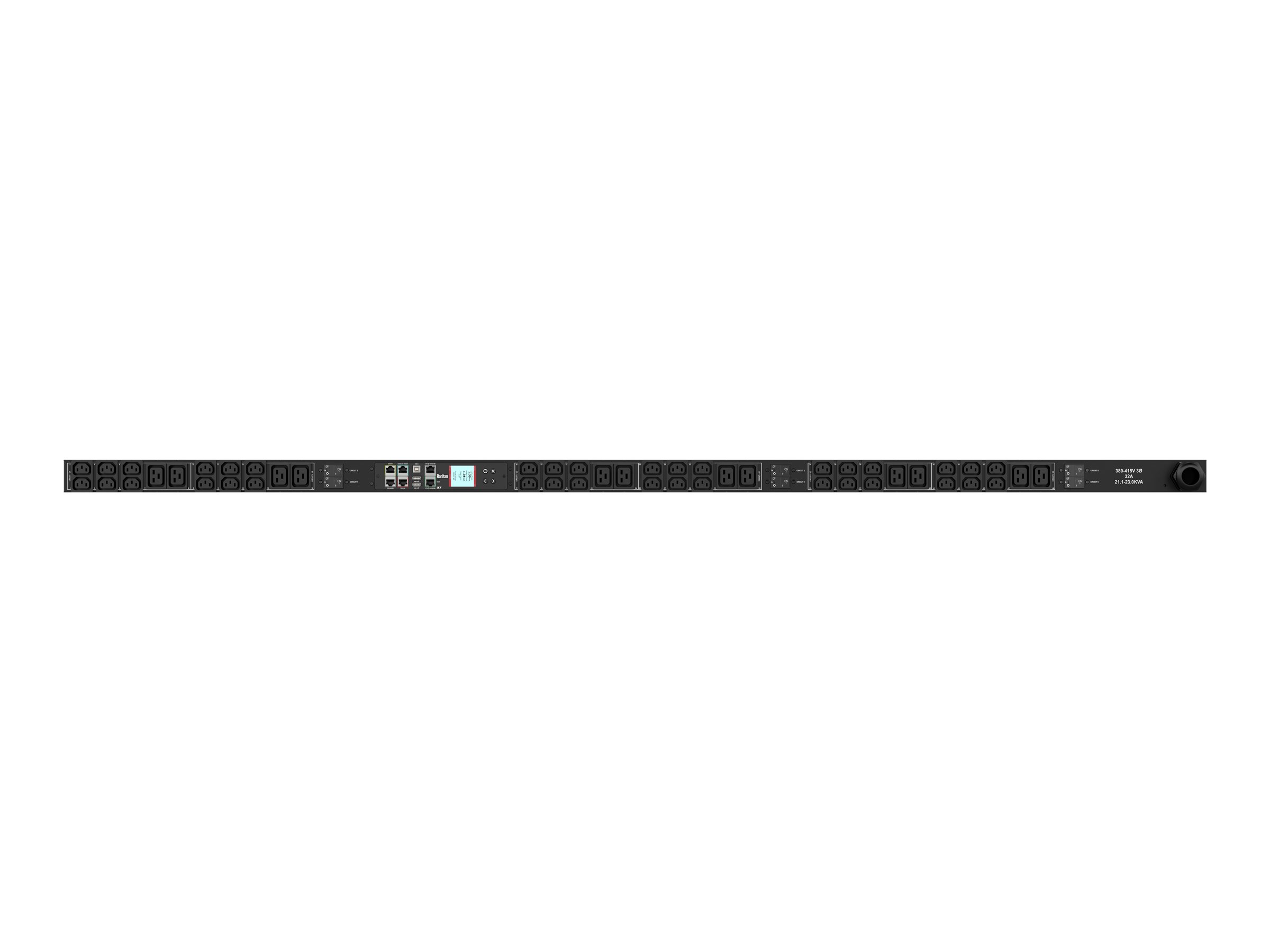

Raritan PX3-1909-V2 - Power distribution unit (rack-mountable)
MSRP$1,677.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-1909-V2 - Power distribution unit (rack-mountable)
- AC 400 V
- 22200 VA
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309
- output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,677.00 |
| Mfr Part #: | PX3-1909-V2 |
| SHI Part #: | 48724504 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-1909-V2 - Power distribution unit (rack-mountable) - AC 400 V - 22200 VA - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 - output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,677.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.5 cm |
| Dimensions & Weight / Height | 186.7 cm |
| Dimensions & Weight / Weight | 8.3 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Power Capacity (VA) | 22200 VA |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5.5 cm |
| Height | 186.7 cm |
| Weight | 8.3 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 200.2 cm |
| Shipping Weight | 10.4 kg |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ICES-003, FCC Part 15 A, RoHS, IEC 62053-21, ISO 62053-21 |
| Features | Tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, environmental sensor ready, cascadable, replaceable controller, LCD display, Auto-Flip Current Display, Power IQ technology, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM, bottom-bottom feed cord entry, 6 x LEGBXA6-16 overload protection, Raritan SecureLock Ready, cord retention, LED indicators |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 230 - 400 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 22200 VA |
| Power Output Connectors Details |
|
