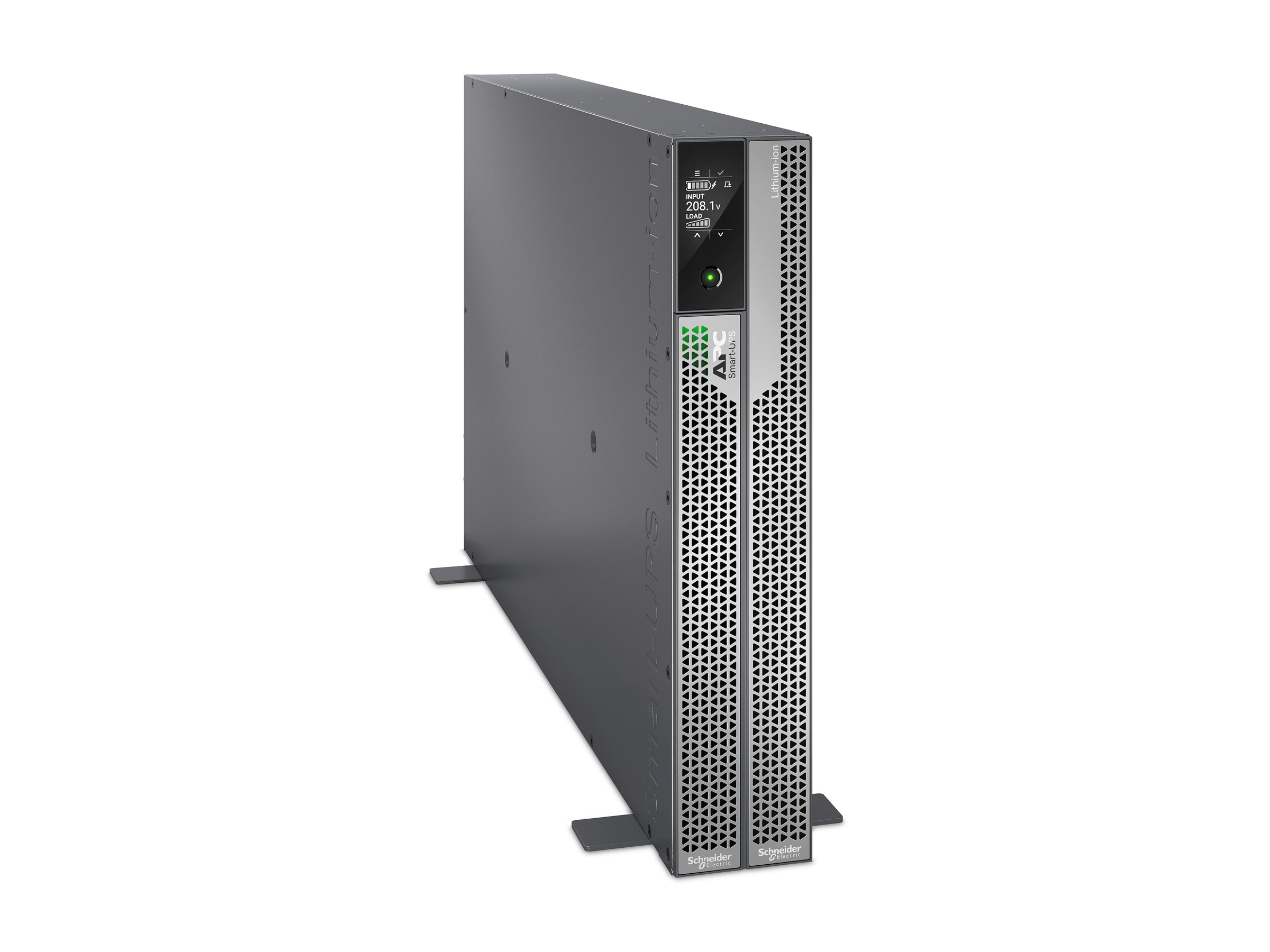

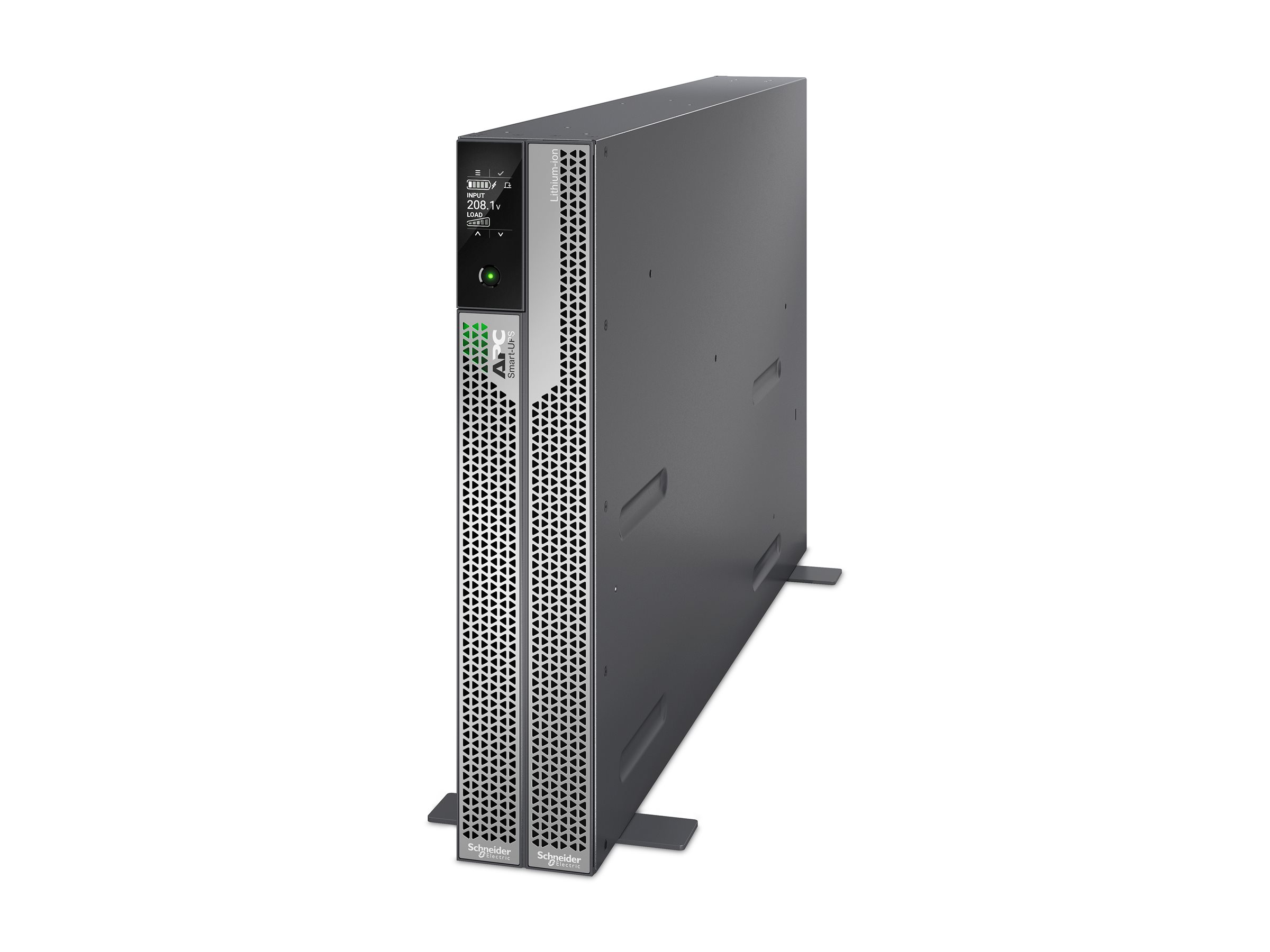

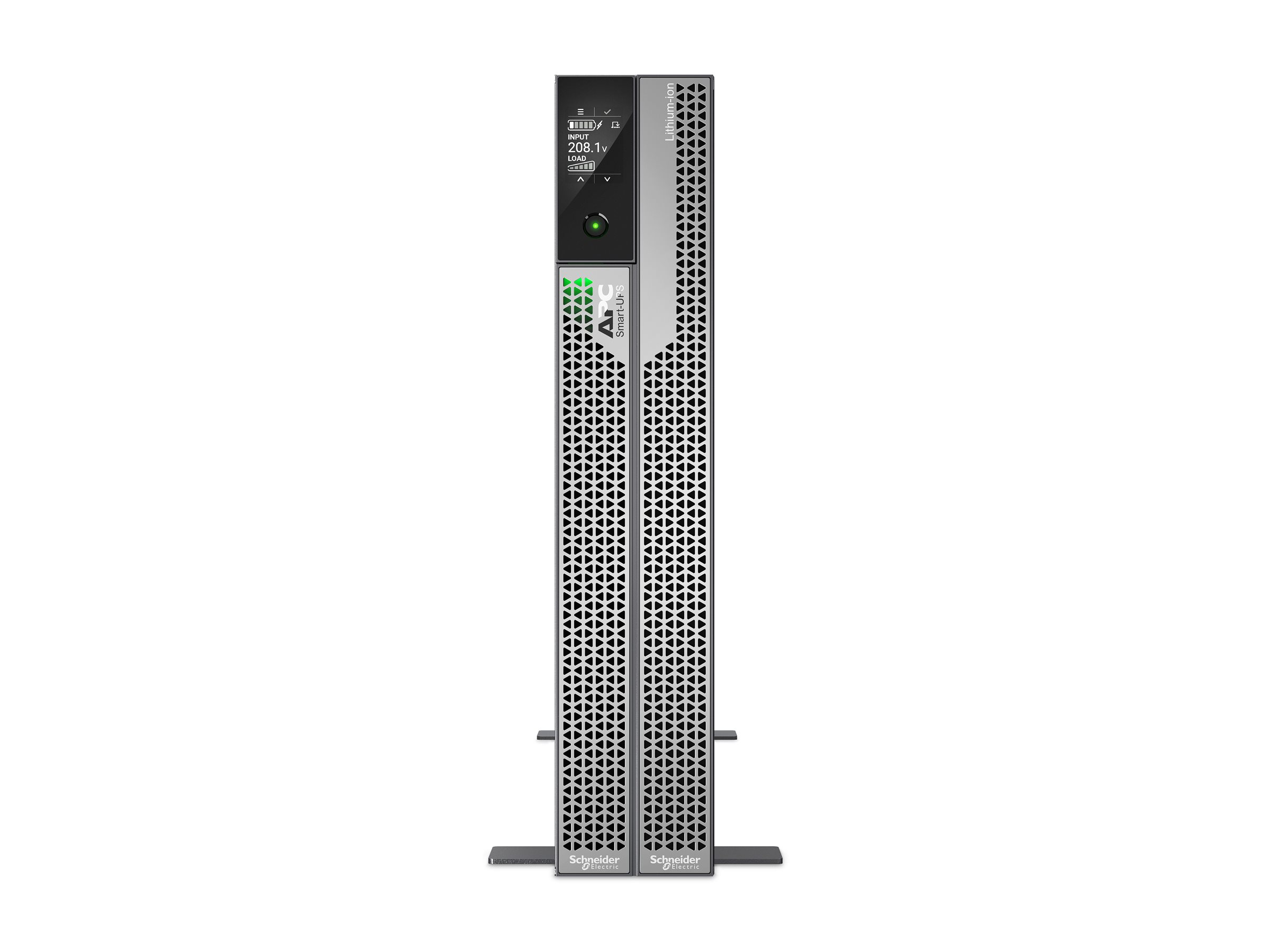

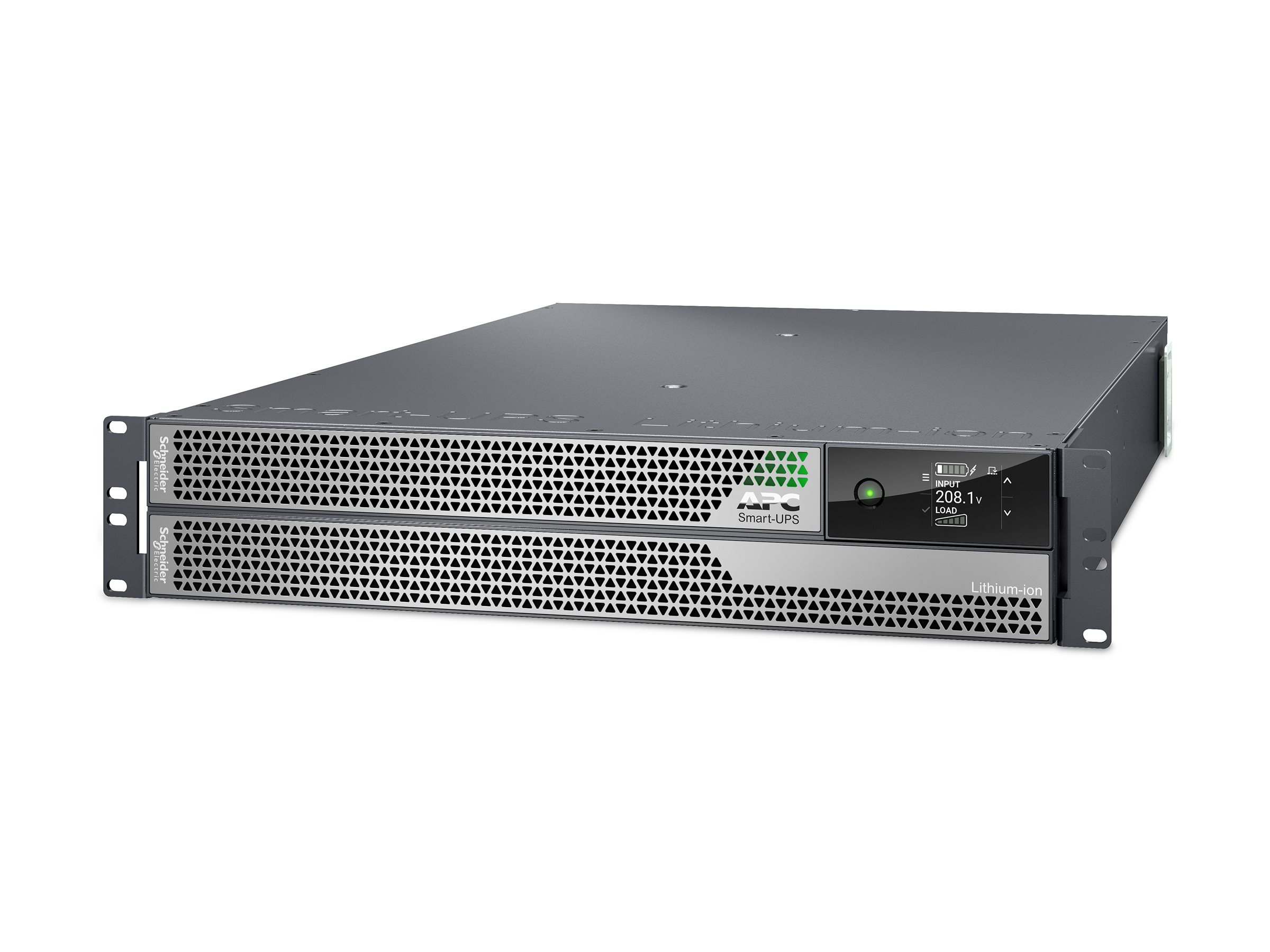

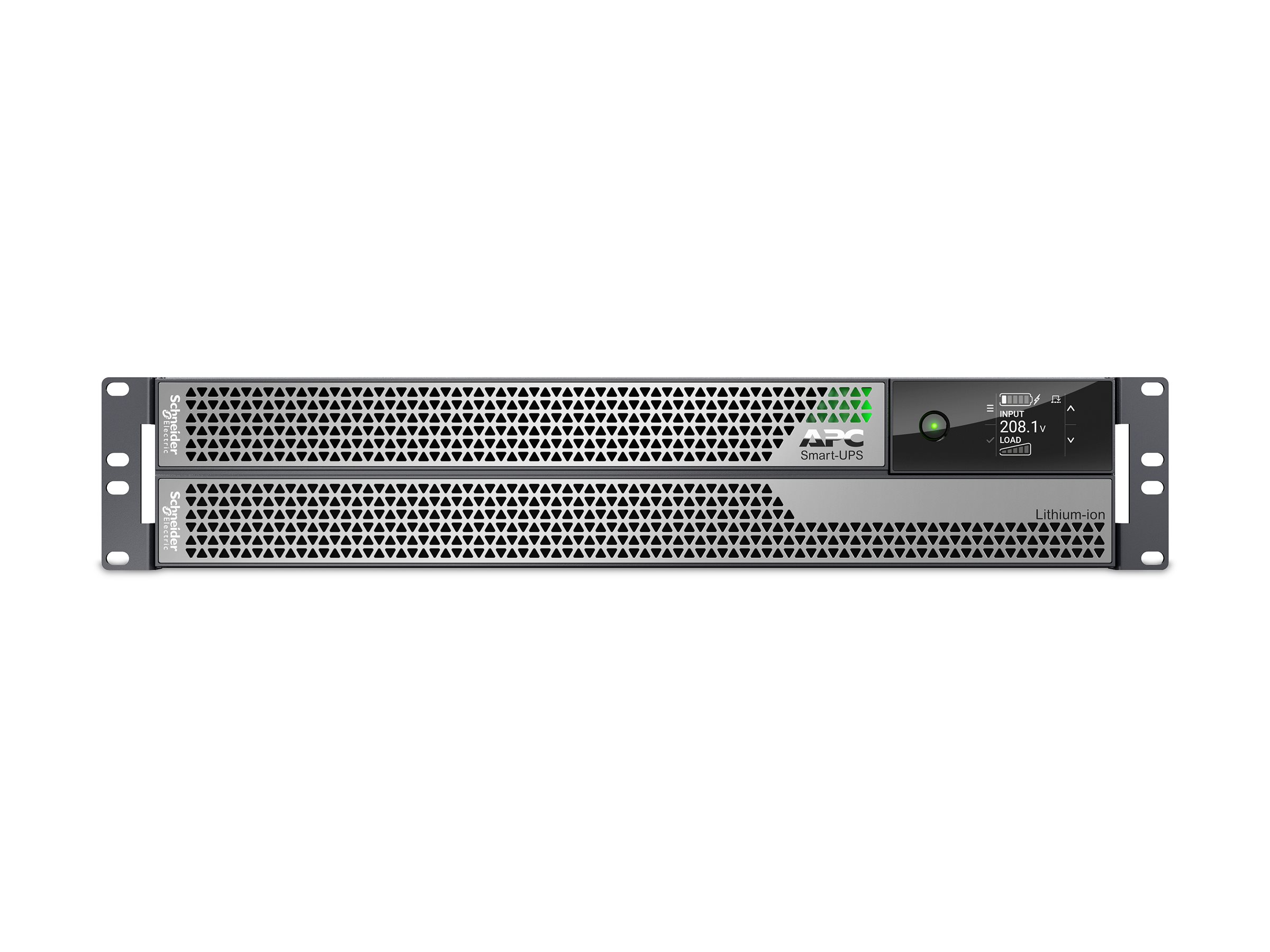

APC Smart-UPS Ultra On-Line

MSRP$16,920.00
$12,628.00
APC Smart-UPS Ultra On-Line
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external)
  • extended runtime, hardwired 3-wire output, network card, with rail kit
  • AC 208 V
  • 4900 Watt
  • 5000 VA
APC Smart-UPS Ultra On-Line
  • UPS (rack-mountable / external)
  • extended runtime, hardwired 3-wire output, network card, with rail kit
  • AC 208 V
  • 4900 Watt
  • 5000 VA
  • 1-phase
  • lithium ion
  • USB
  • output connectors: 1
  • 2U
  • silver gray
  • for P/N: SRTL180RM2UBP
  Additional Details
Price: $12,628.00
MSRP: $16,920.00
Mfr Part #: SRTL5KRM2UT-HW
SHI Part #: 48666450
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS Ultra On-Line - UPS (rack-mountable / external) - extended runtime, hardwired 3-wire output, network card, with rail kit - AC 208 V - 4900 Watt - 5000 VA - 1-phase - lithium ion - USB - output connectors: 1 - 2U - silver gray - for P/N: SRTL180RM2UBP
ManufacturerAPC by Schneider Electric
MSRP$16,920.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth70.1 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight29.2 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product Color
  • Gray
  • Silver
Networking / Remote Management InterfaceUSB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty1
Power Device / Power Capacity (VA)5000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208 V
  • AC 230 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
Quantity1
Recharge Time1.5 hours
TechnologyLithium ion lithium ion
TypeExpandable
Voltage Provided180 V
Compatibility Information
Designed ForP/N: SRTL180RM2UBP
Dimensions & Weight
Depth70.1 cm
Height8.6 cm
Weight29.2 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth98.4 cm
Shipping Height39.2 cm
Shipping Weight38.5 kg
Shipping Width58.5 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Interfaces
  • 1 x EPO (emergency power off)
  • Management (USB)
General
ColorSilver gray
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Cables Included
  • USB cable - external
  • Network cable - external
Compliant StandardsREACH, IEC 62040-1, EN 62040-1, EU RoHS, UKCA
FeaturesHorizontal orientation, user-replaceable removable battery, audible alarm, emergency power off, LCD display, internal bypass, visible alarm, Auto-Sensing Technology, double conversion
Included AccessoriesTemperature sensor, stabilization feet, front cover, earth terminal block, rail extension
Rack Mounting KitIncluded
Networking
Remote Management InterfaceUSB
Power Device
Frequency Provided50/60 Hz
Input Connectors1 x power NEMA L6-30P
Input VoltageAC 208 V
Input Wiring1-phase
Output VoltageAC 208 V 50/60 Hz
Output WaveformSinewave
Power Capacity4900 watt / 5000 VA

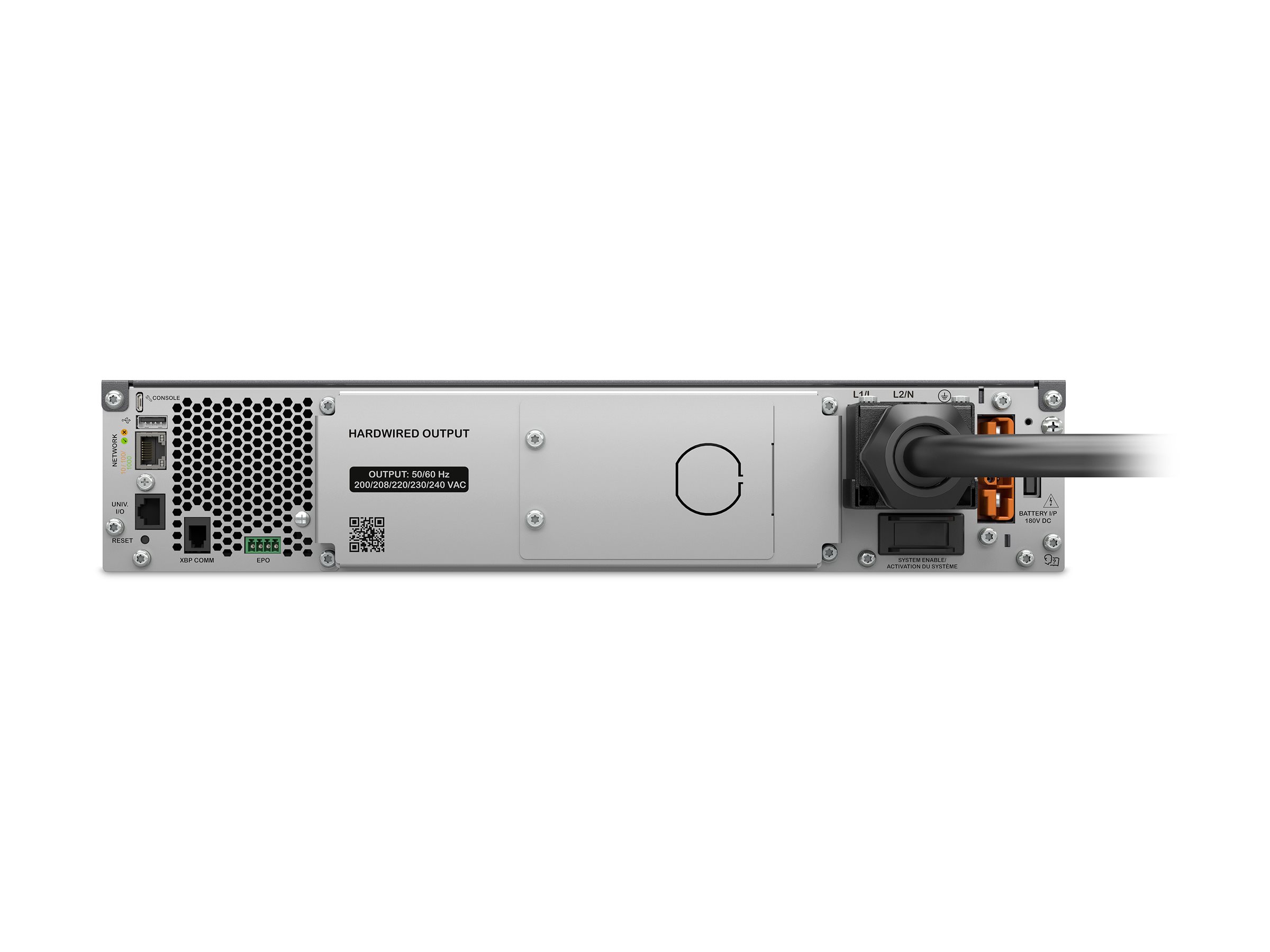

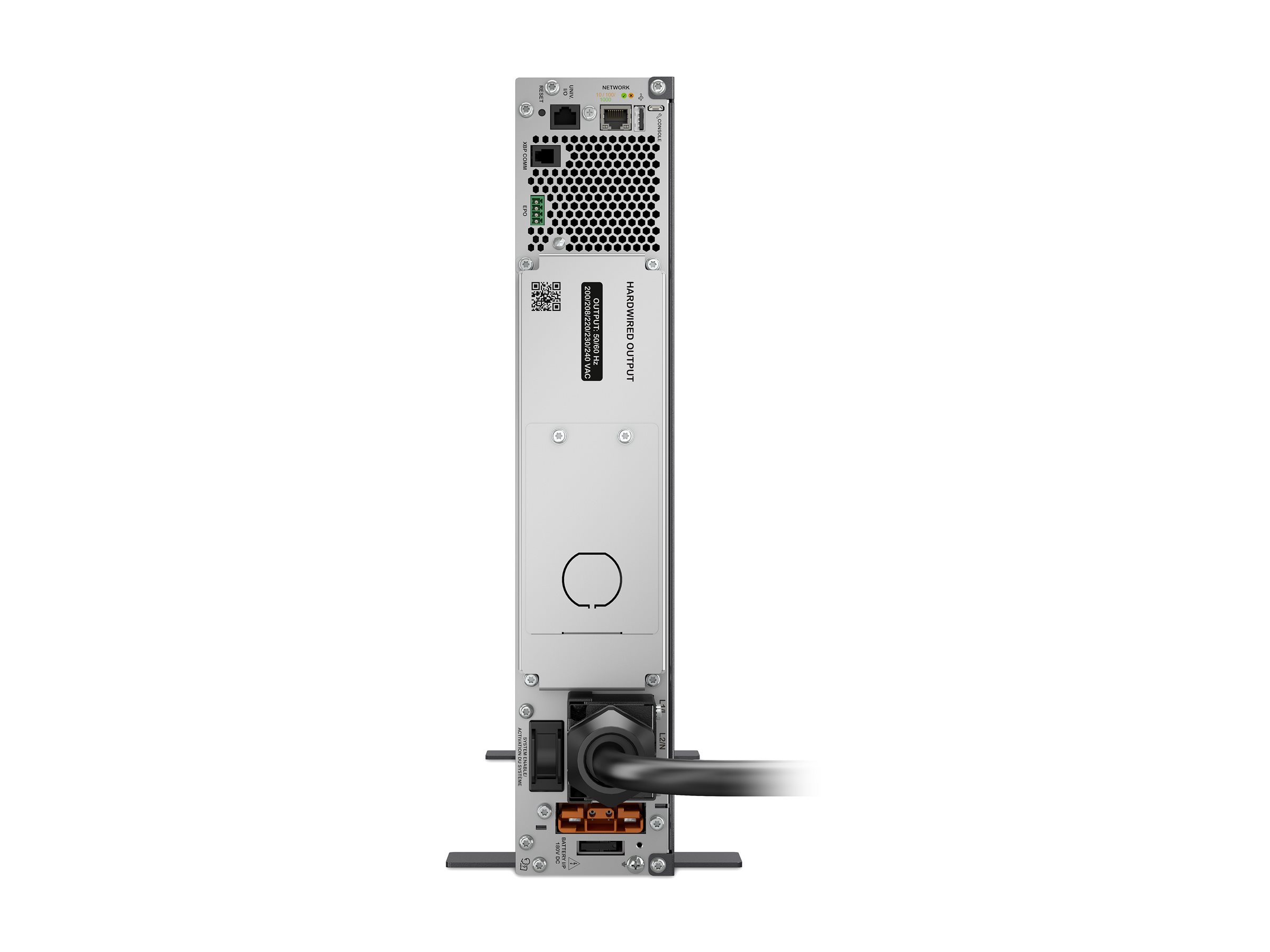

Power Output Connectors Details1 x hardwire 3-wire (1PH + N + G)
Surge Energy Rating1260 joules
Surge SuppressionYes
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
Packaging Recycled ContentMade of recycled cardboard
