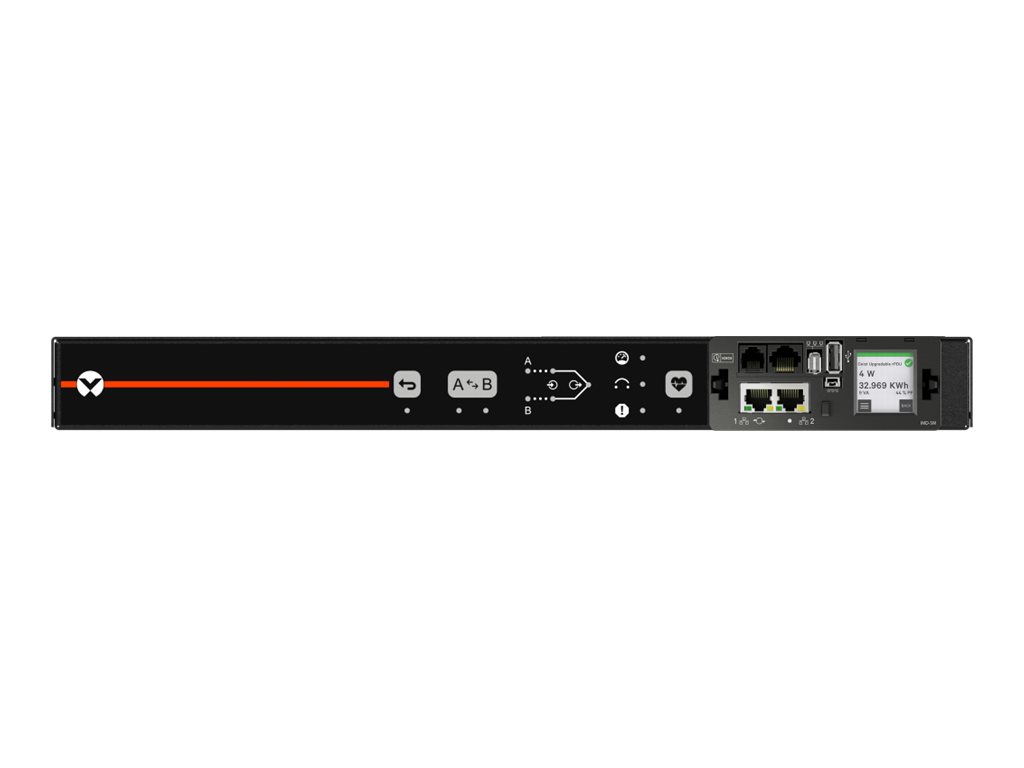

Geist Rack Transfer Switch Switched Unit Level Monitoring ANS5M1R5-06S153-1ST5ST5A011-D
MSRP$2,393.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Geist Rack Transfer Switch Switched Unit Level Monitoring ANS5M1R5-06S153-1ST5ST5A011-D
- Power distribution unit (rack-mountable)
- AC 100-120 V
- 1.4 kW
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA 5-15P
- output connectors: 6 (power NEMA 5-15R)
- 1U
- 19"
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,393.00 |
| Mfr Part #: | VA5N11A0 |
| SHI Part #: | 48664924 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Rack Transfer Switch Switched Unit Level Monitoring ANS5M1R5-06S153-1ST5ST5A011-D - Power distribution unit (rack-mountable) - AC 100-120 V - 1.4 kW - Ethernet 10/100/1000, RS-232, USB - input: NEMA 5-15P - output connectors: 6 (power NEMA 5-15R) - 1U - 19" - 3 m cord - black powder coat |
| Manufacturer | Vertiv |
| MSRP | $2,393.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 45.7 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 43.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Voltage Required | AC 100-120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Transfer Time | 8 ms |
| Dimensions & Weight | |
| Depth | 45.7 cm |
| Height | 4.4 cm |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 5.44 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, FCC Part 15 A, UL/CUL 62368-1, ANSI C12.1, IEC 62053-21 |
| Features | Supports depth of 4-post rack from 24"-37", horizontal mount, daisy chain functionality, monitored, out of phase transfers, front panel HMI LED overlay, rear panel LED overlay, touch screen LCD display, LED indicators, hard reboot button, IP reset button, switched |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA 5-15P |
| Input Voltage | AC 100-120 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1.4 kW |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
