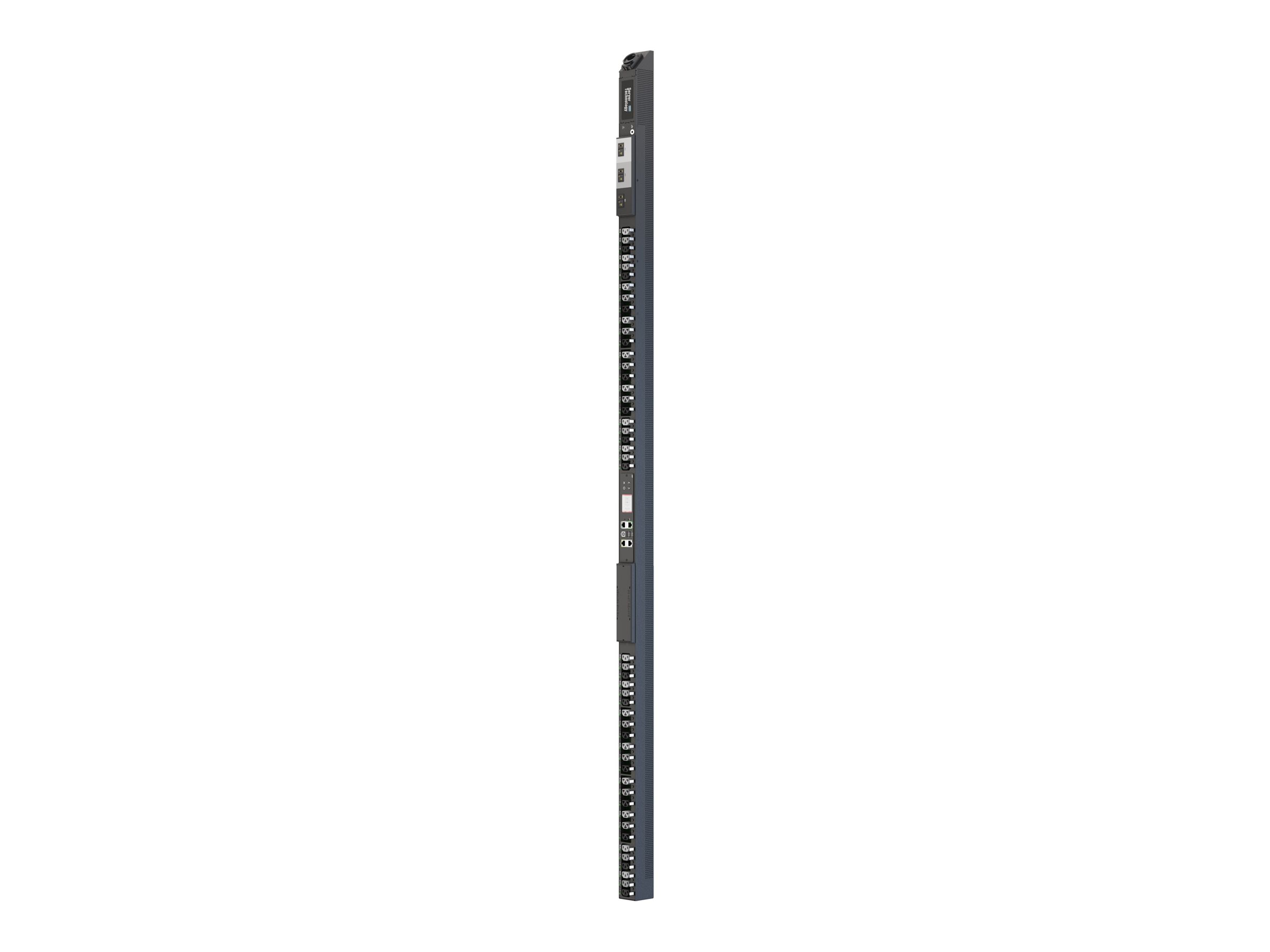

Server Technology PRO4X Switched POPS PDU C4G48RA-2PBE2FD7

MSRP$4,975.00
$4,969.00
Server Technology PRO4X Switched POPS PDU C4G48RA-2PBE2FD7
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Power distribution unit (rack-mountable)
  • AC 208 V
  • 5 kW
  • RS-232, Ethernet 10/100/1000, USB
  • input: IEC 60309 2P+PE 6Hr
Server Technology PRO4X Switched POPS PDU C4G48RA-2PBE2FD7
  • Power distribution unit (rack-mountable)
  • AC 208 V
  • 5 kW
  • RS-232, Ethernet 10/100/1000, USB
  • input: IEC 60309 2P+PE 6Hr
  • output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 Cx)
  • black
  Additional Details
Price: $4,969.00
MSRP: $4,975.00
Mfr Part #: C4G48RA-2PBE2FD7
SHI Part #: 48643954
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Legrand
Product Type: Hardware
General Information
CategoryRack systems for rack mount electroni...
DescriptionServer Technology PRO4X Switched POPS PDU C4G48RA-2PBE2FD7 - Power distribution unit (rack-mountable) - AC 208 V - 5 kW - RS-232, Ethernet 10/100/1000, USB - input: IEC 60309 2P+PE 6Hr - output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 Cx) - black
ManufacturerLegrand
MSRP$4,975.00
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth6.4 cm
Dimensions & Weight / Height203.2 cm
Dimensions & Weight / Width5.6 cm
Header / BrandServer Technology
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty48
Power Device / Voltage RequiredAC 208 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth6.4 cm
Height203.2 cm
Width5.6 cm
Environmental Parameters
Humidity Range Operating5 - 90% RH (non-condensing)
Max Operating Temperature60 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 2 x management (Gigabit Ethernet) - RJ-45
  • 1 x sensor - RJ-45
  • 1 x cascading - RJ-45
  • 2 x USB-A - 4 pin USB Type A
  • 1 x USB - 4 pin USB Type B
General
ColorBlack
Device TypePower distribution unit - rack-mountable
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 2 years
Miscellaneous
Compliant StandardsUL 489, CSA C22.2 No. 5, IEC/EN 60947-2, UL 62368-1, CSA C22.2 No. 62368-1, FCC Subpart B 15.107 Class A, FCC Subpart B 15.109 Class A, CANICES-003 Class A
FeaturesHigh Density Outlet Technology (HDOT), multi-color LCD, power measuring, waveform capture, environmental monitoring, Per Outlet Power Sensing (POPS), outlet control, 45° angled infeed, Multi-Unit Linking and Cascading, hot-swappable controller, LED indicators, Ramlock Locking Outlets, Per Input Power Sensing (PIPS), Branch Circuit Protection, alternating-phase outlets, 20A trip circuit breakers, 10 kAIC Interrupt Rating
Networking
Remote Management InterfaceRS-232, Ethernet 10/100/1000, USB
Remote Management ProtocolHTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, Syslog, LDAP, LDAPS, TLS 1.2, SSH-2, CLI, SNMP 2c, SNMP 3, IPv4, IPv6, TACACS+, RADIUS, LDAP 3.0
Power Device
Circuit ProtectionCircuit breaker
Frequency Required50/60 Hz
Input Connectors1 x power IEC 60309 2P+PE 6Hr
Input VoltageAC 208 V
Max Electric Current30 A
Output VoltageAC 208 V
Power Capacity5 kW
Power Output Connectors Details
  • 24 x power IEC 60320 C13 - 208 V 12 A
  • 24 x power IEC 60320 Cx - 208 V 16 A
